Dual Pressure Switch Connector A-25 Connector End View (Except Evolution)

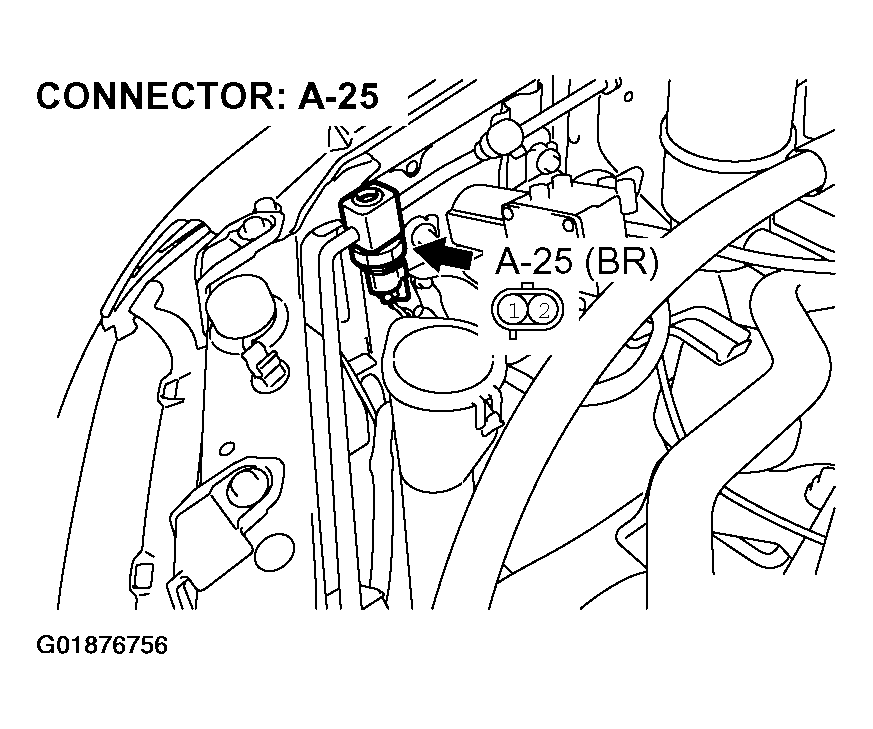

Fig 1: Dual Pressure Switch Connector A-25 Connector End View (Except Evolution)

G01876756

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
