DTC P0401: EGR Flow Insufficient Detected: Notes

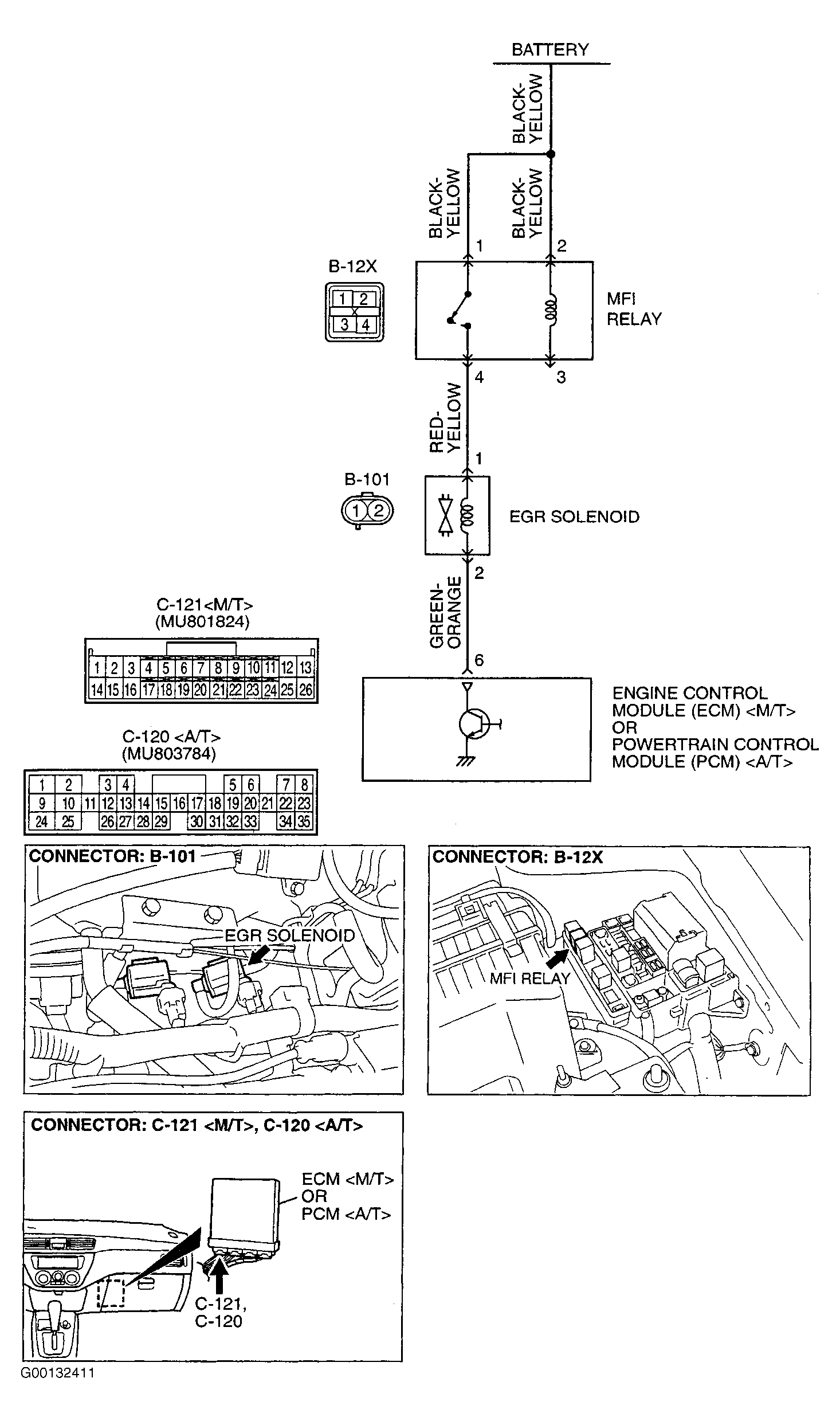

Fig 1: Identifying EGR Solenoid Circuit, Component & Connector Location

G00132411

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
