Installation (Diamante)
NOTE:

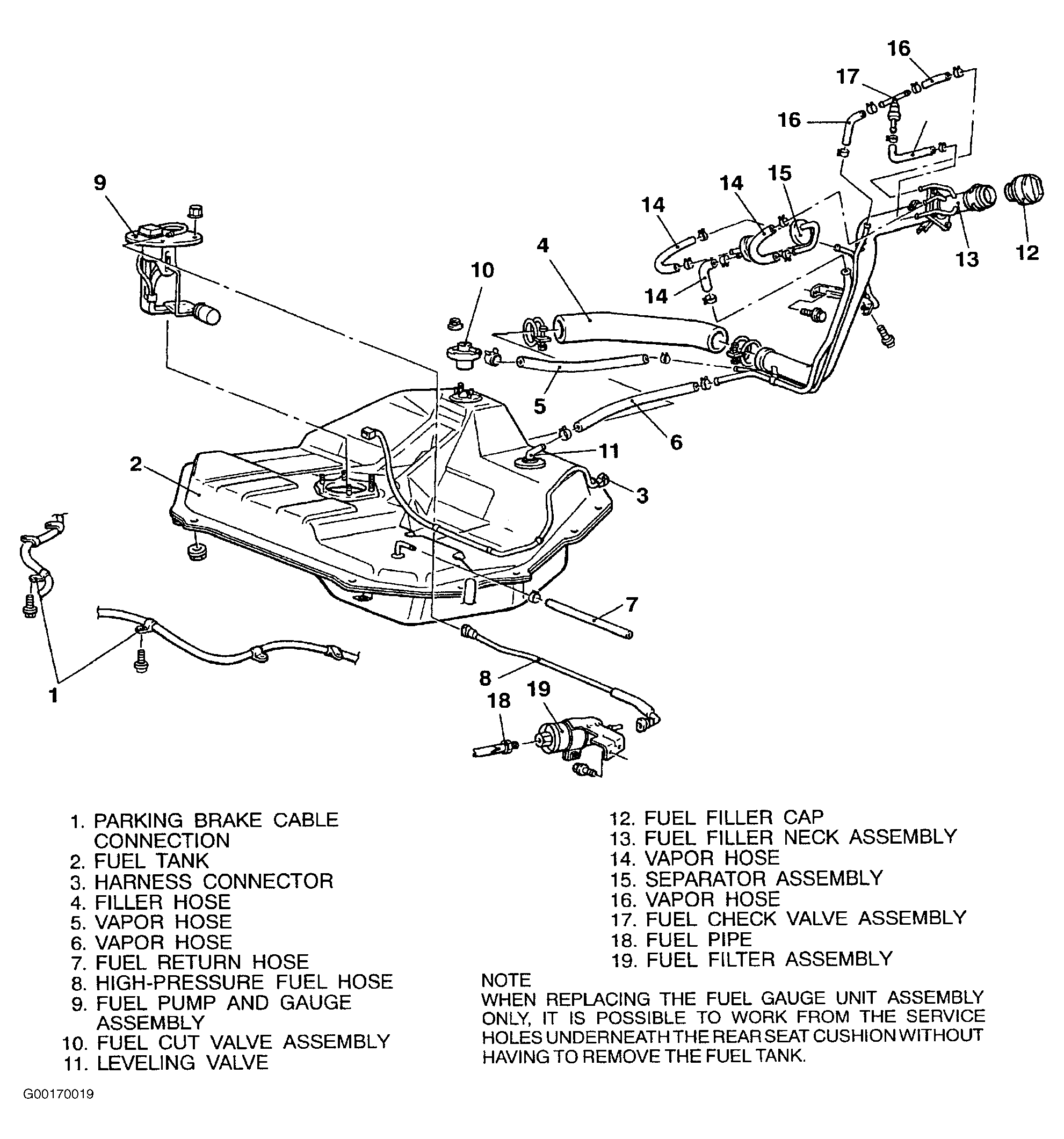

There is a reservoir inside fuel tank, if fuel pump module is tilted to right and inserted, fuel pump module will touch reservoir.
When installing fuel pump module, tilt float at end to left and insert into fuel tank. Align packing positioning projections (locations indicated by arrows) with holes in fuel pump module. Tighten fasteners to specification. See TORQUE SPECIFICATIONS .
