Valve Spring

WARNING: This page is about a different variant/trim than selected.
  1. Measure the valve spring free height. If the measurement is less than specified, replace spring.
    1. Standard value: 50.4 mm (1.98 inches)
    2. Limit: 49.4 mm (1.94 inches)
  2. Measure the squareness of the spring. If the measurement is less than specified, replace the spring.
    1. Standard value: 2° or less
    2. Limit: 4°

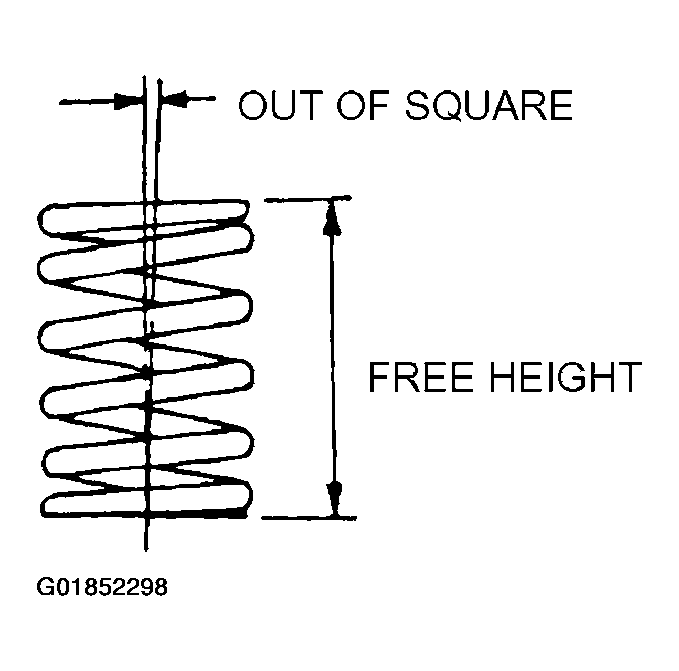

    Fig 1: Measuring Valve Spring Free Height
    G01852298Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
