Eclipse, Galant, Lancer & Outlander

Turn A/C and lights OFF. Inspect and adjust at no load. Warm engine until stabilized at idle. Confirm idle speed is at prescribed RPM. See IDLE SPEED SPECIFICATIONS under IDLE SPEED & MIXTURE. Stop engine (ignition switch OFF).
Confirm there are no sharp bends in accelerator cable. Check inner cable for correct slack. Standard value is 0.04-0.08" (1-2 mm). If there is too much slack or no slack, go to next step.
Loosen adjusting bolt to release cable. See Fig 1-Fig 3 . Move plate until inner cable play is at standard value, then tighten adjusting bolt. After adjusting check that throttle lever touches stopper.

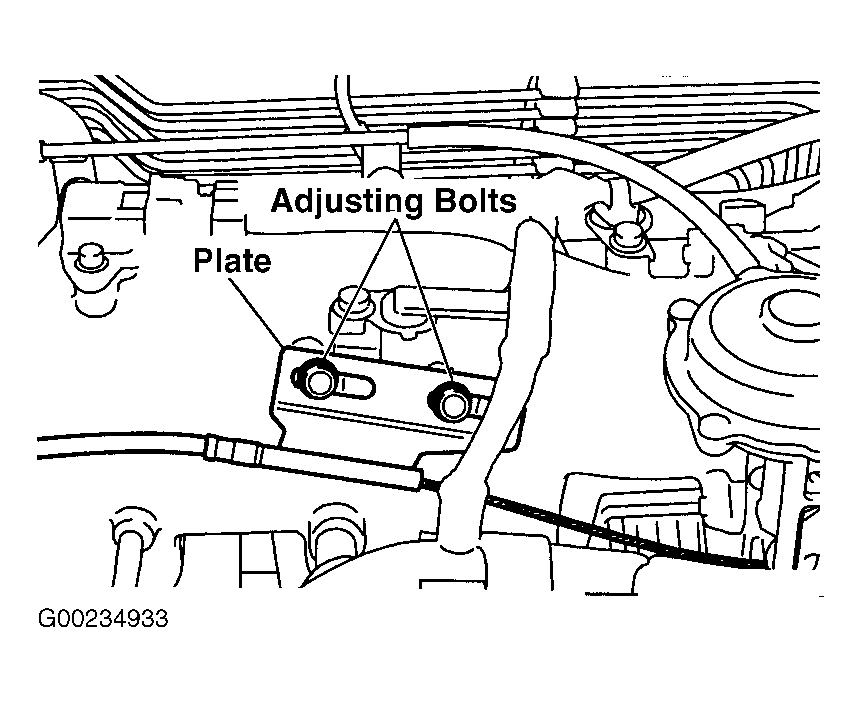

Fig 1: Adjusting Accelerator Cable (Eclipse & Galant)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Adjusting Accelerator Cable (Lancer)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Adjusting Accelerator Cable (Outlander)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
