Home >> Mitsubishi >> 2003 >> Galant LS, 2.4 G >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul >> Differential >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

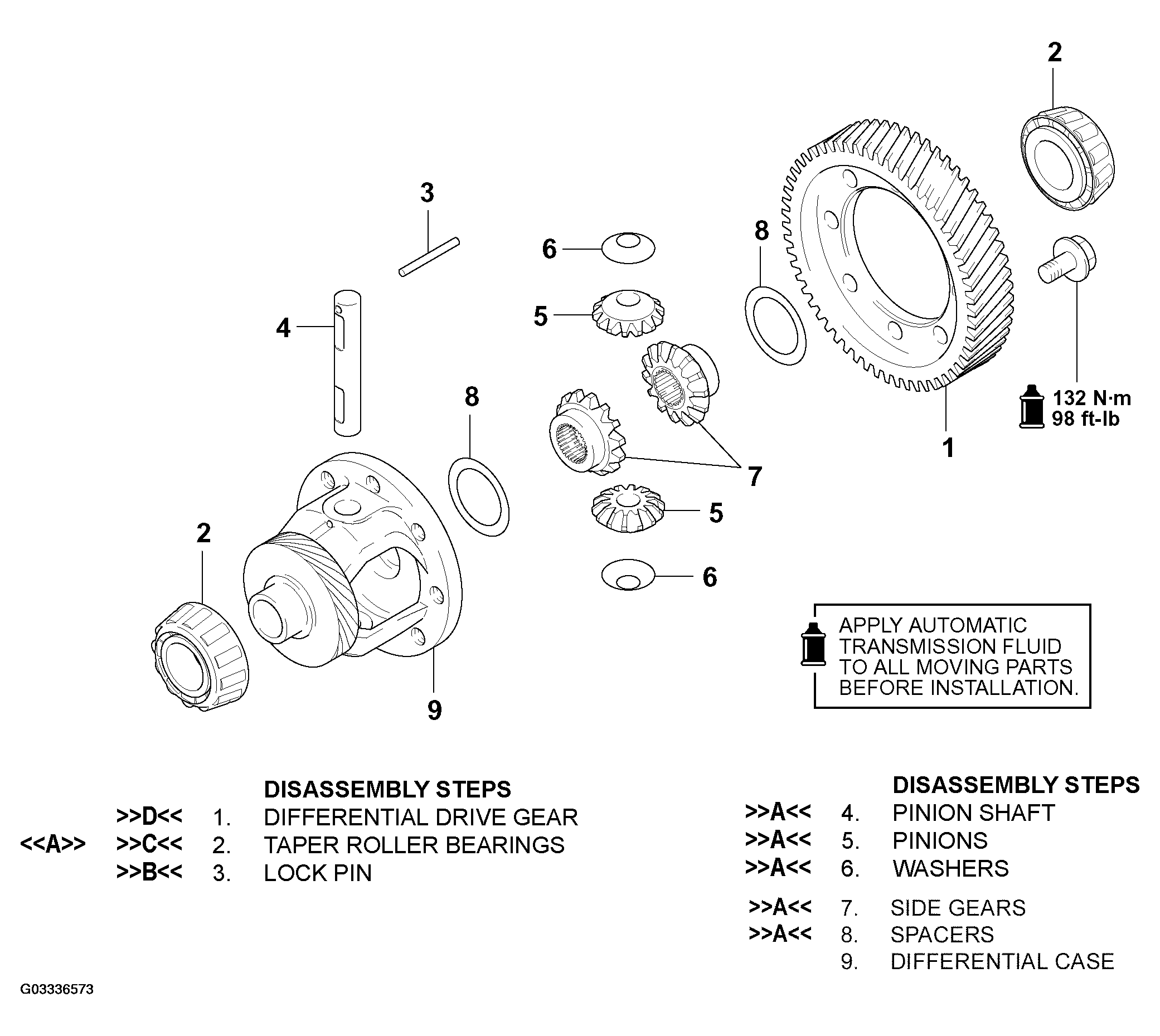

Fig 1: Identifying Differential Components
G03336573Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
