Disassembly And Assembly

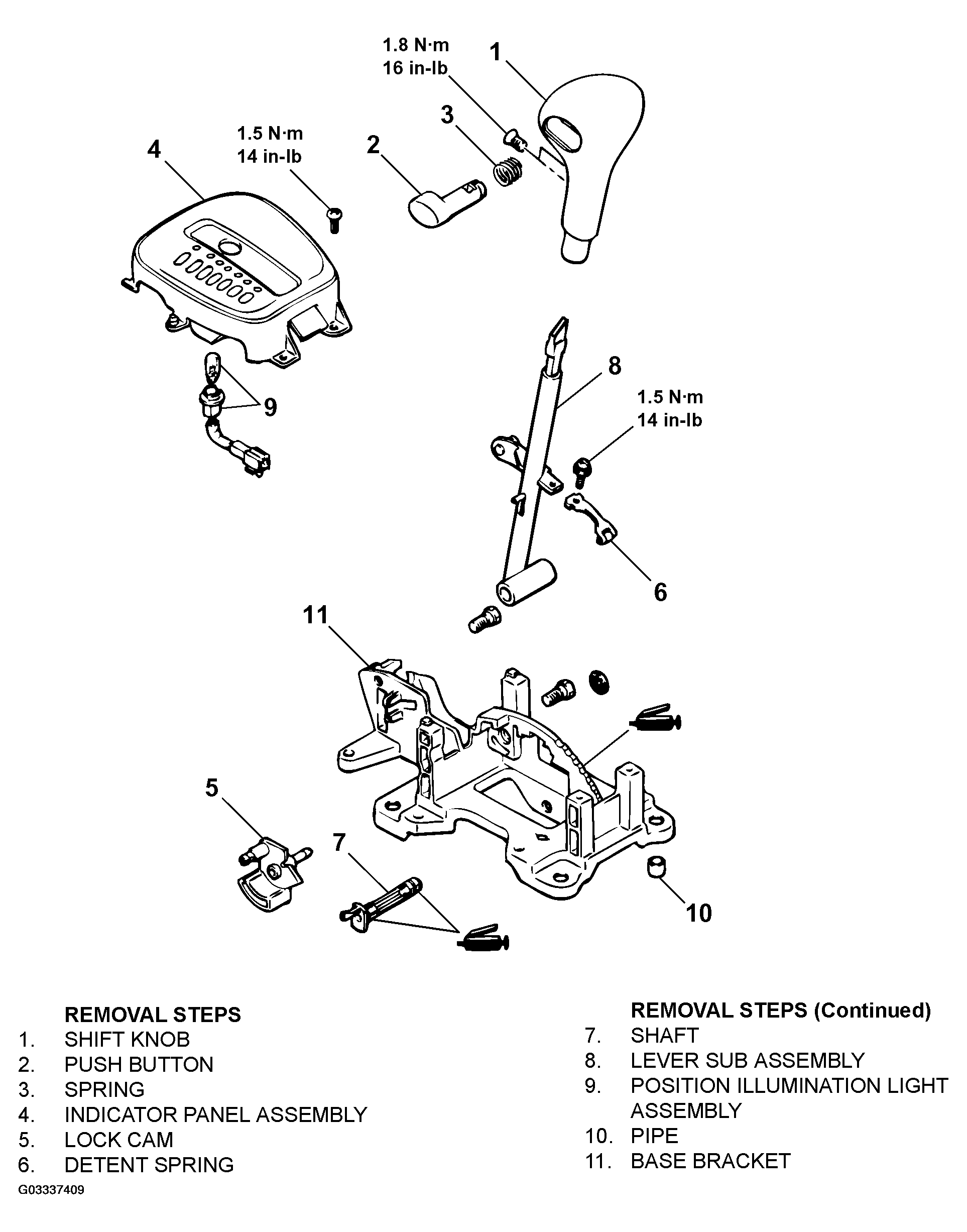

Fig 1: Identifying Components Of Selector Lever Assembly
G03337409Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
