Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS ECU | At right rear corner of engine compartment. |

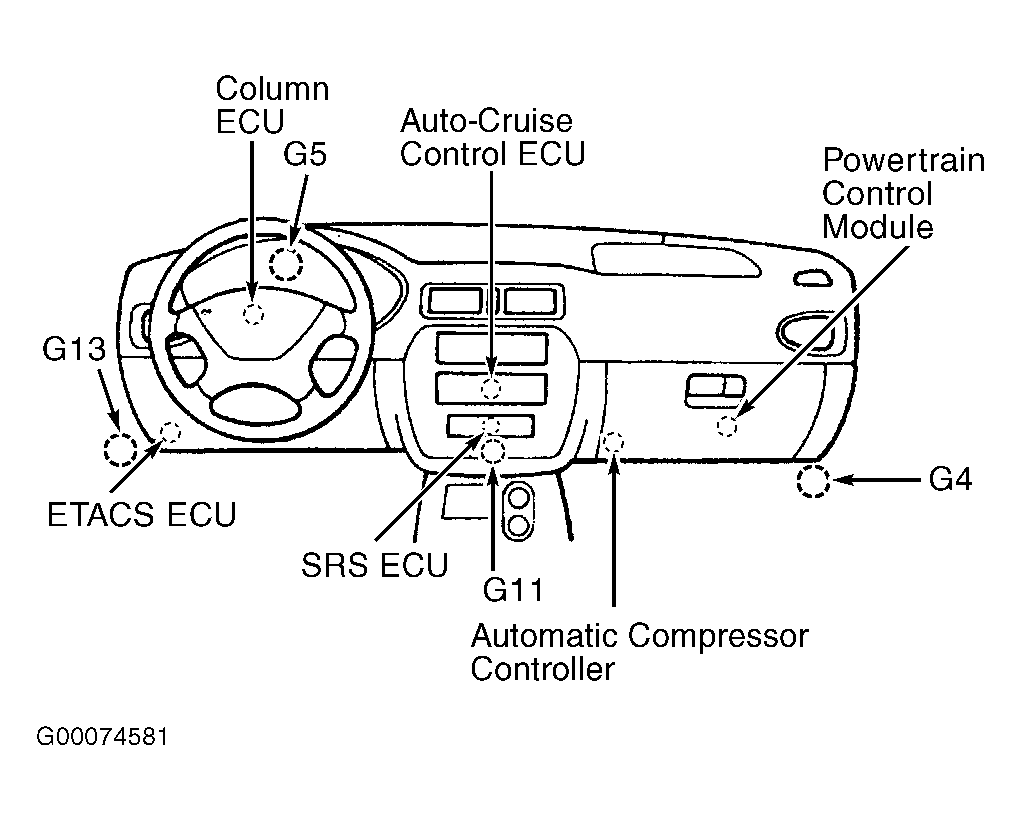

| Auto-Cruise Control ECU | Behind center of dash. See Figure . |
| Automatic Compressor Controller | Behind right center of dash. See Figure . |
| Column ECU | At top of steering column. See Figure . |
| Daytime Running Light ECU | At left front side of engine compartment. |
| ETACS ECU | Behind left side of dash, attached to junction block. See Figure . |
| Fan Controller | On radiator fan motor shroud. |
| Front ECU | On engine compartment relay box. See Figure . |
| Immobilizer ECU | Behind lower center of dash. |
| Powertrain Control Module | Behind right side of dash. See Figure . |
| SRS ECU | Behind lower center of dash. See Figure . |
| Sun Roof ECU | At front of sun roof opening. |
