Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

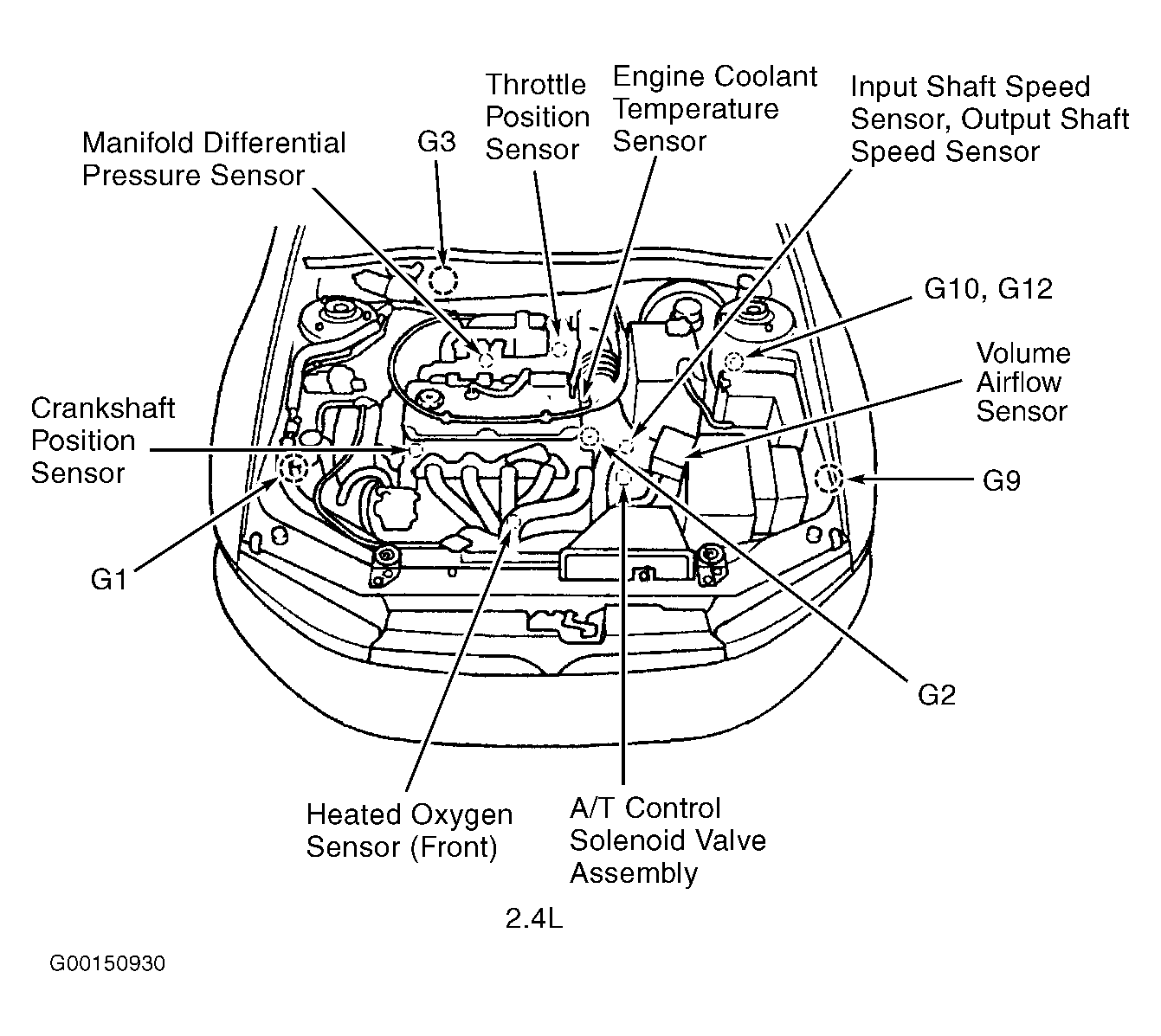

Fig 1: Engine Compartment (2.4L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

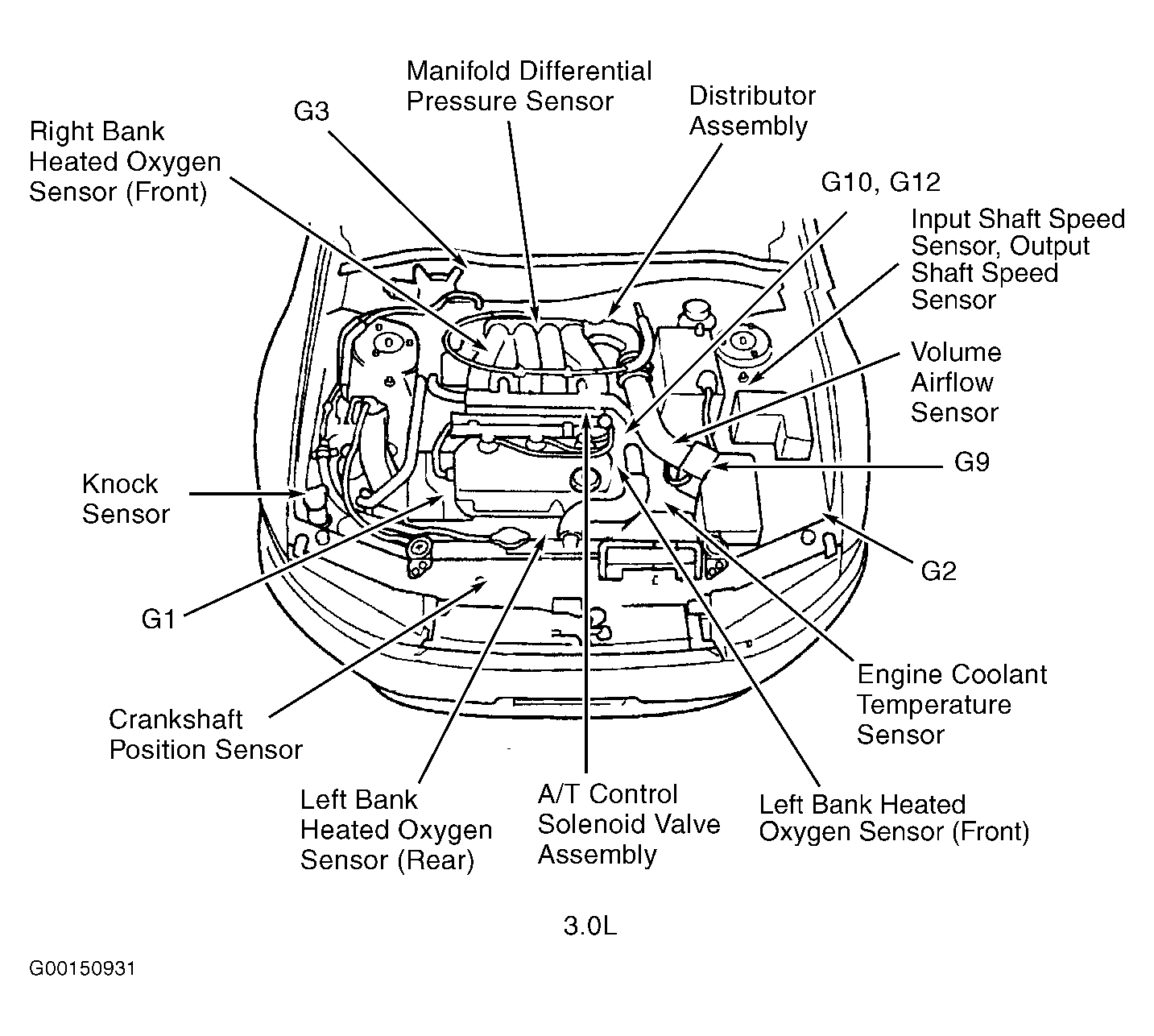

Fig 2: Engine Compartment (3.0L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Left Side Of Engine Compartment

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

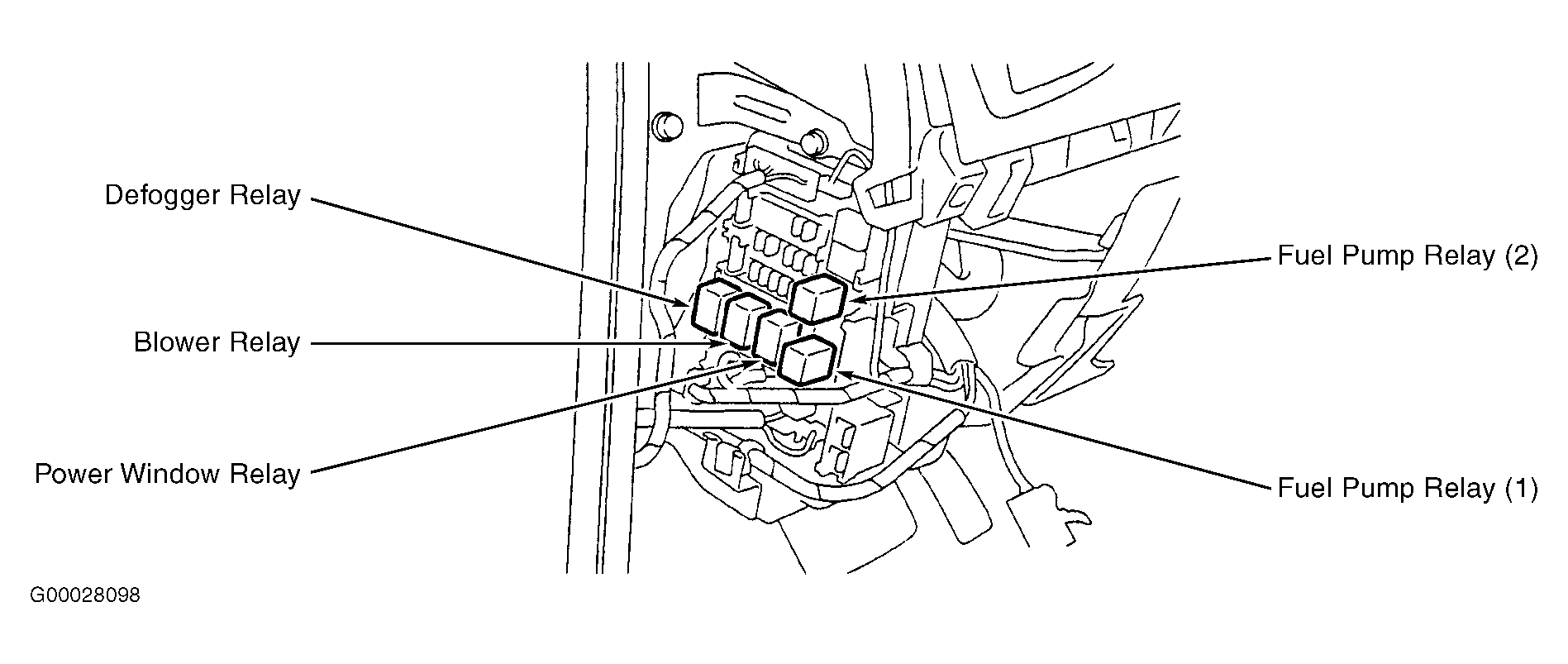

Fig 4: Left Side Of Dash

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 5: Dash

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
