No Communication With Engine Control Module/Powertrain Control Module: Description

A diagnostic output is made from the PCM terminal No. 85 to the diagnostic output terminal (terminal No. 7) of the DLC. See Figure and Fig 1 .

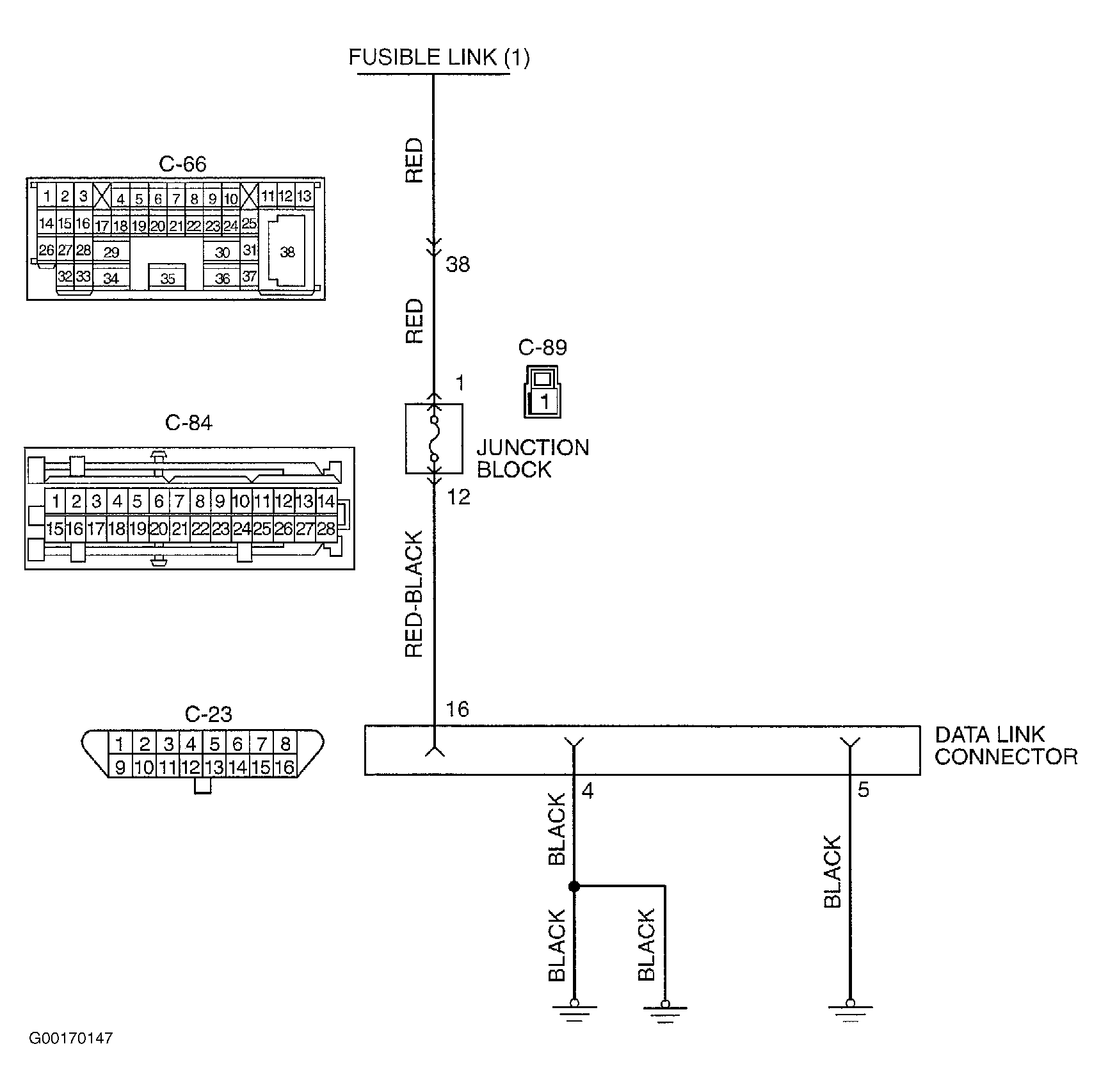

Fig 1: Identifying Data Link Connector Serial Circuit

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
