Removal And Installation: Notes

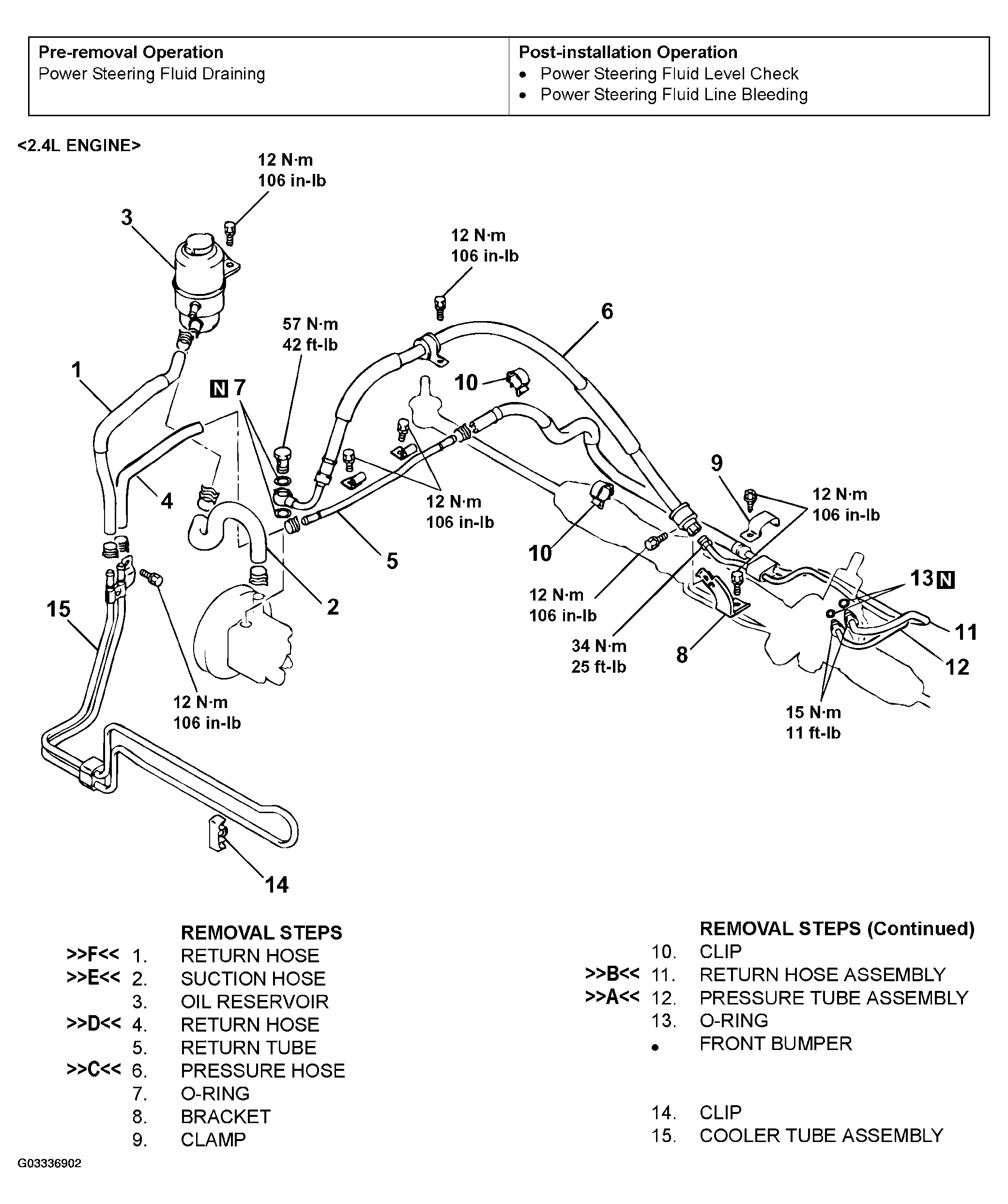

Fig 1: Removing & Installing Power Steering Hoses (1 Of 2)
G03336902Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

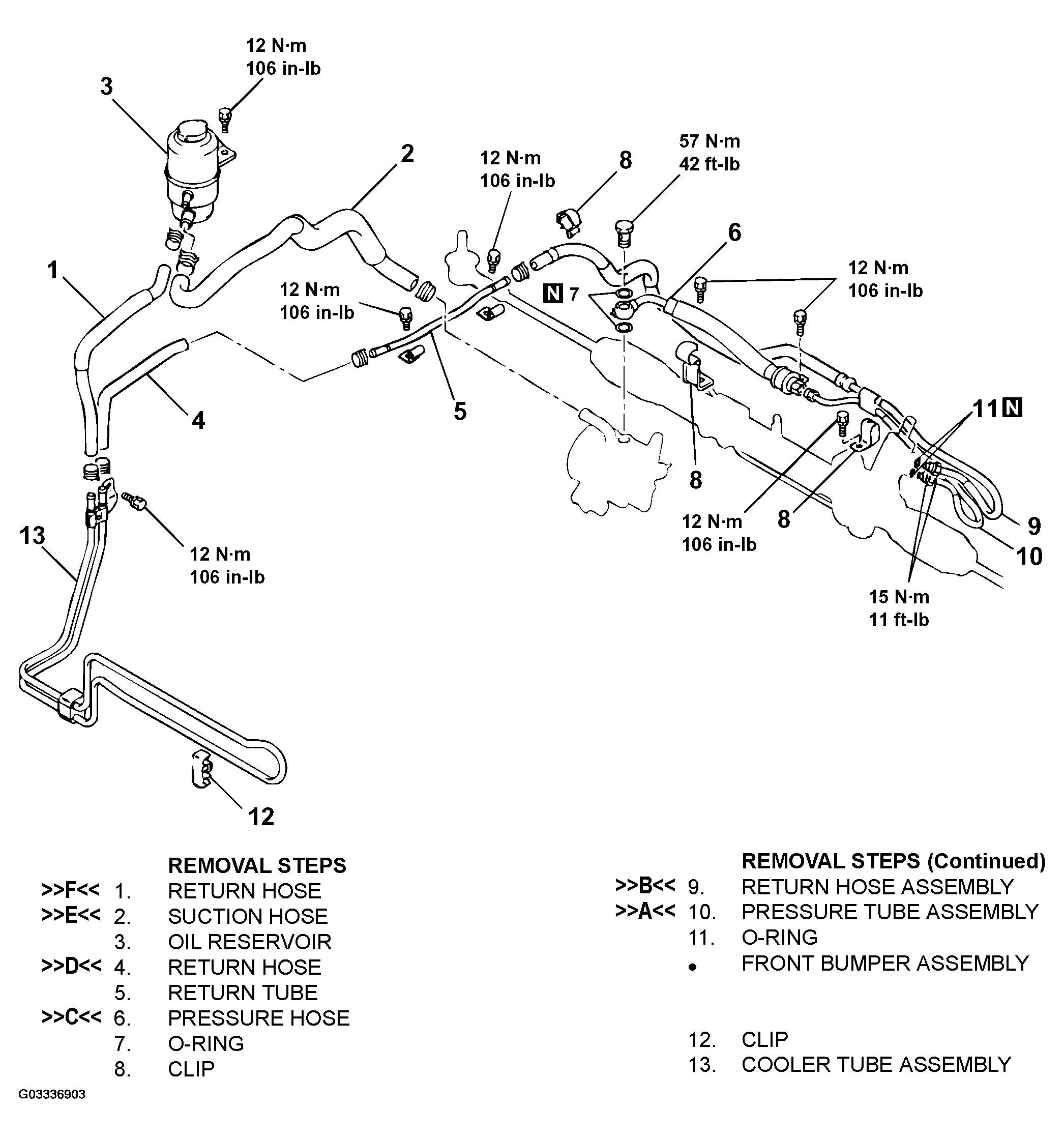

Fig 2: Removing & Installing Power Steering Hoses (2 Of 2)
G03336903Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
