Steering Angle Check

Place the front wheel on a turning radius gauge and measure the steering angle.

Standard value:

STANDARD VALUE CHART

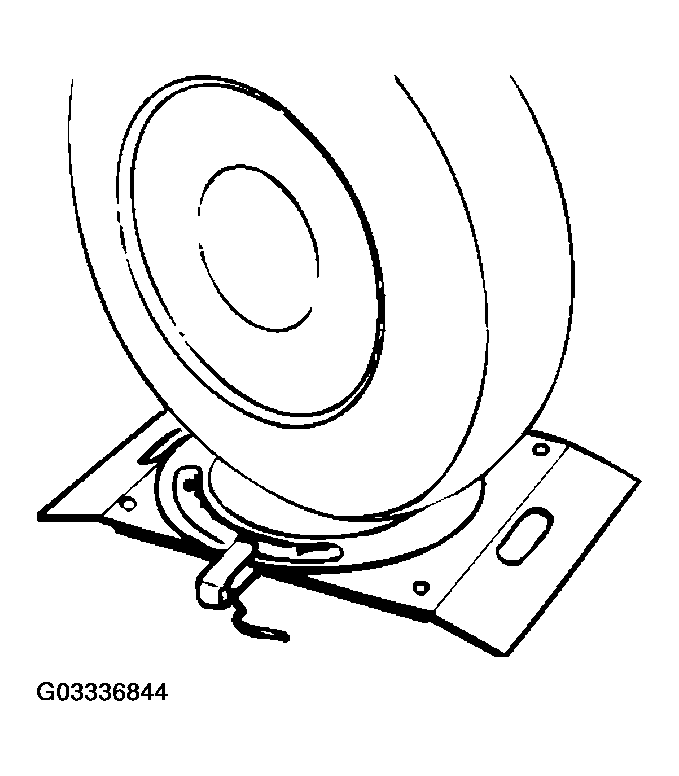

Fig 1: Measuring Steering Angle

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

If the steering angle is not within the standard value, adjust the toe-in.
Standard value: 0 +/- 3 mm (0 +/- 0.12 inch)
Adjust the toe-in by undoing the clip and turning the left and right tie rod turnbuckles by the same amount (in opposite directions).
NOTE: The toe will move out as the left turnbuckle is turned toward the front of the vehicle and the right turnbuckle is turned toward the rear of the vehicle.

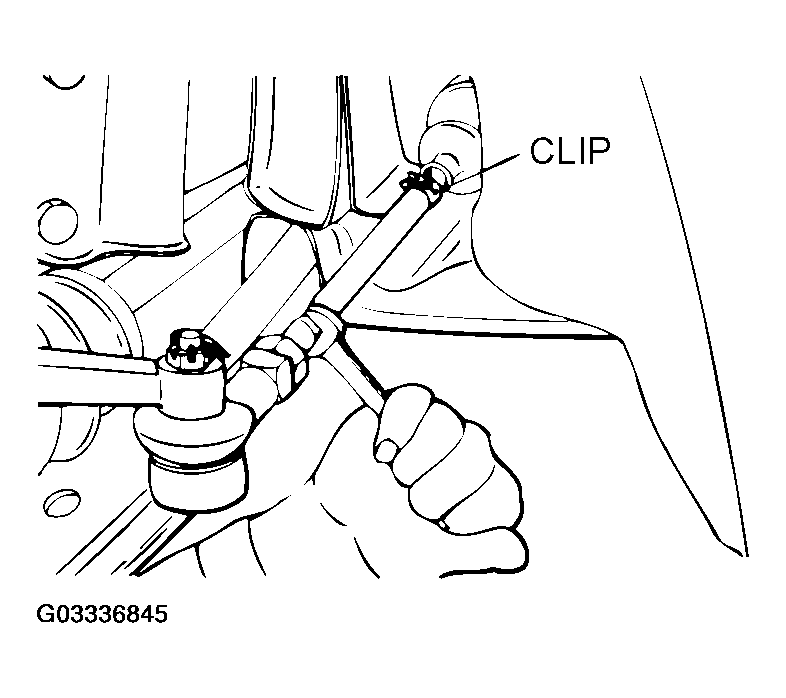

Fig 2: Adjusting Toe In
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
