No Communication With Engine Control Module/Powertrain Control Module: Description

A diagnostic output is made from the PCM (terminal No. 85) to the diagnostic output terminal (terminal No. 7) of the DLC. See Fig 1.

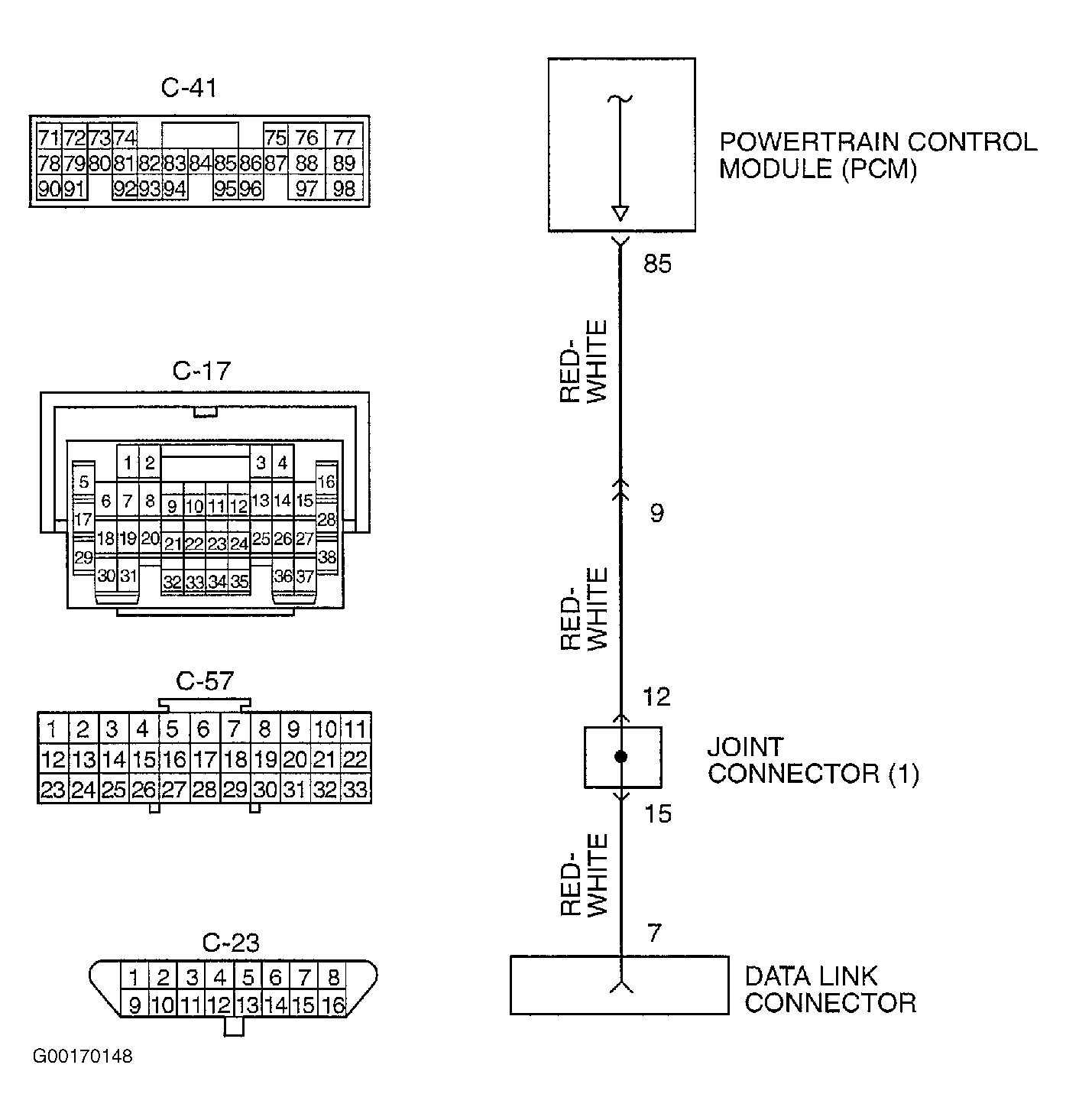

Fig 1: Identifying Data Link Connector Serial Data Circuit

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
