Component Locations

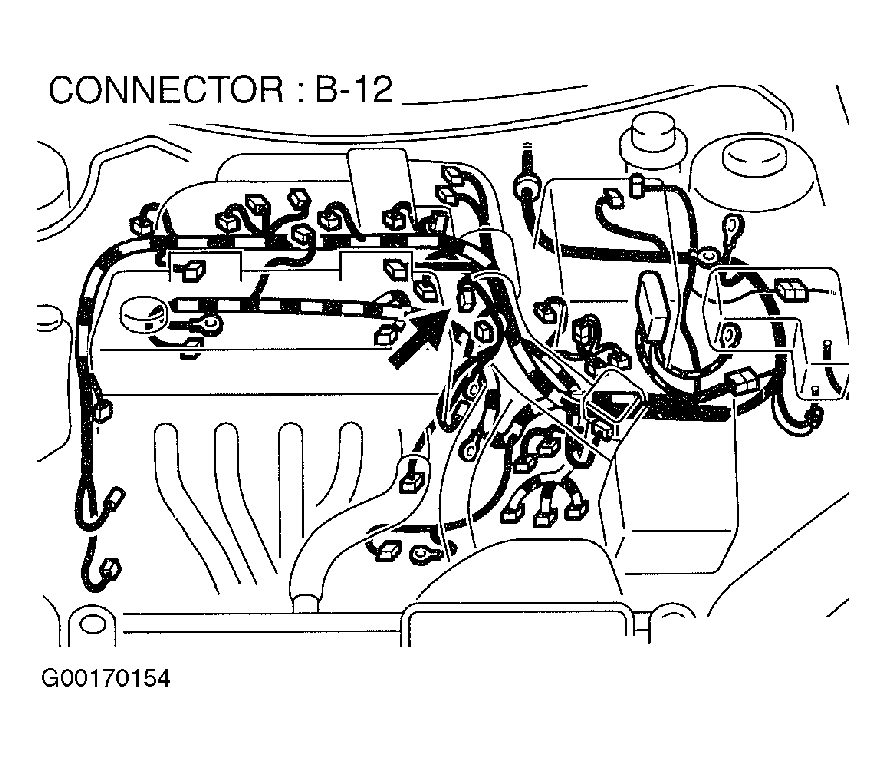

Fig 1: Locating Camshaft Position Sensor Connector B-12

G00170154

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

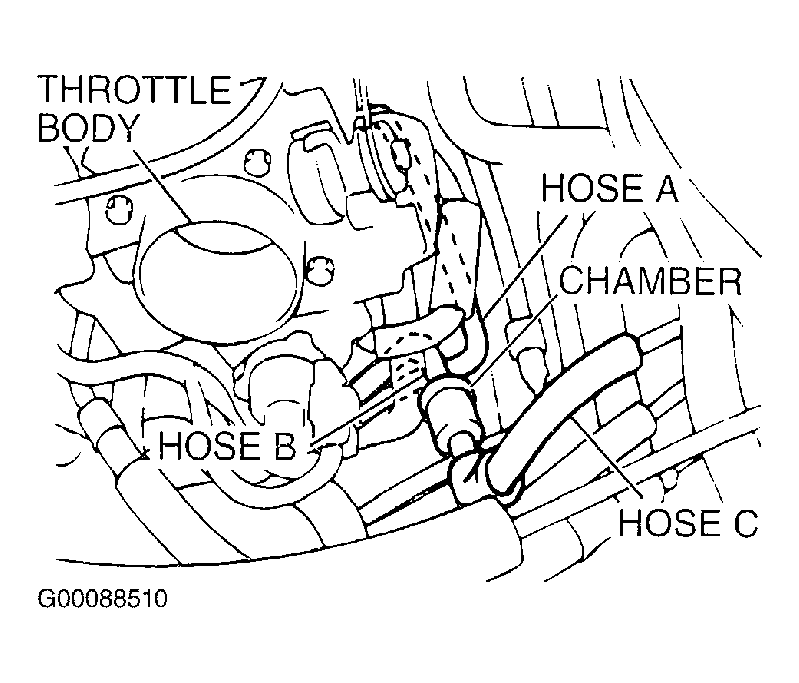

Fig 2: Locating Chamber & Hoses "A", "B" & "C"

G00088510

Courtesy of CHRYSLER CORP.

Fig 3: Locating Connectors C-84 & C-87

G00132464

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

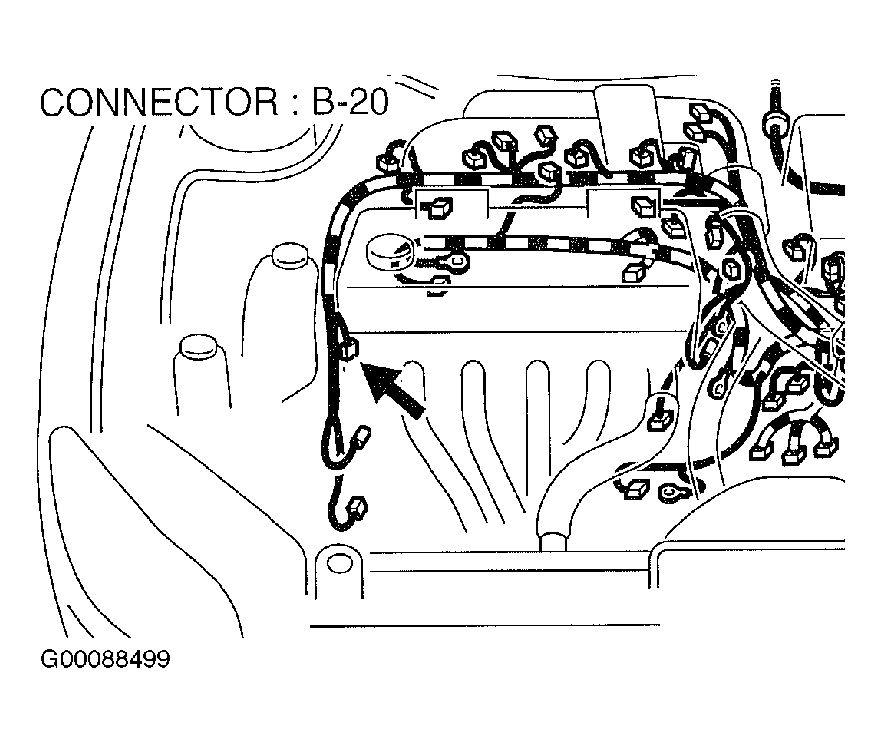

Fig 4: Locating Crankshaft Position Sensor Connector B-20

G00088499

Courtesy of CHRYSLER CORP.

Fig 5: Locating Data Link Connector

G95E32692

Courtesy of CHRYSLER CORP.

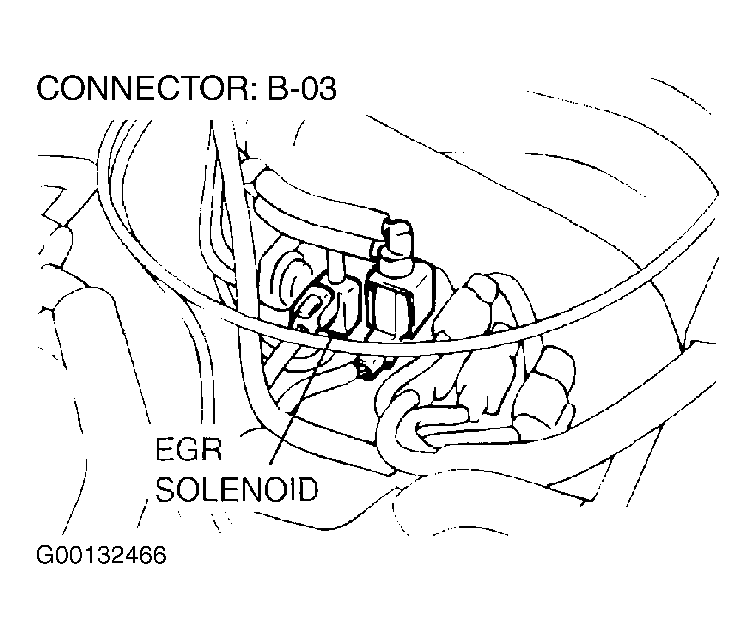

Fig 6: Locating EGR Solenoid Connector B-03

G00132466

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

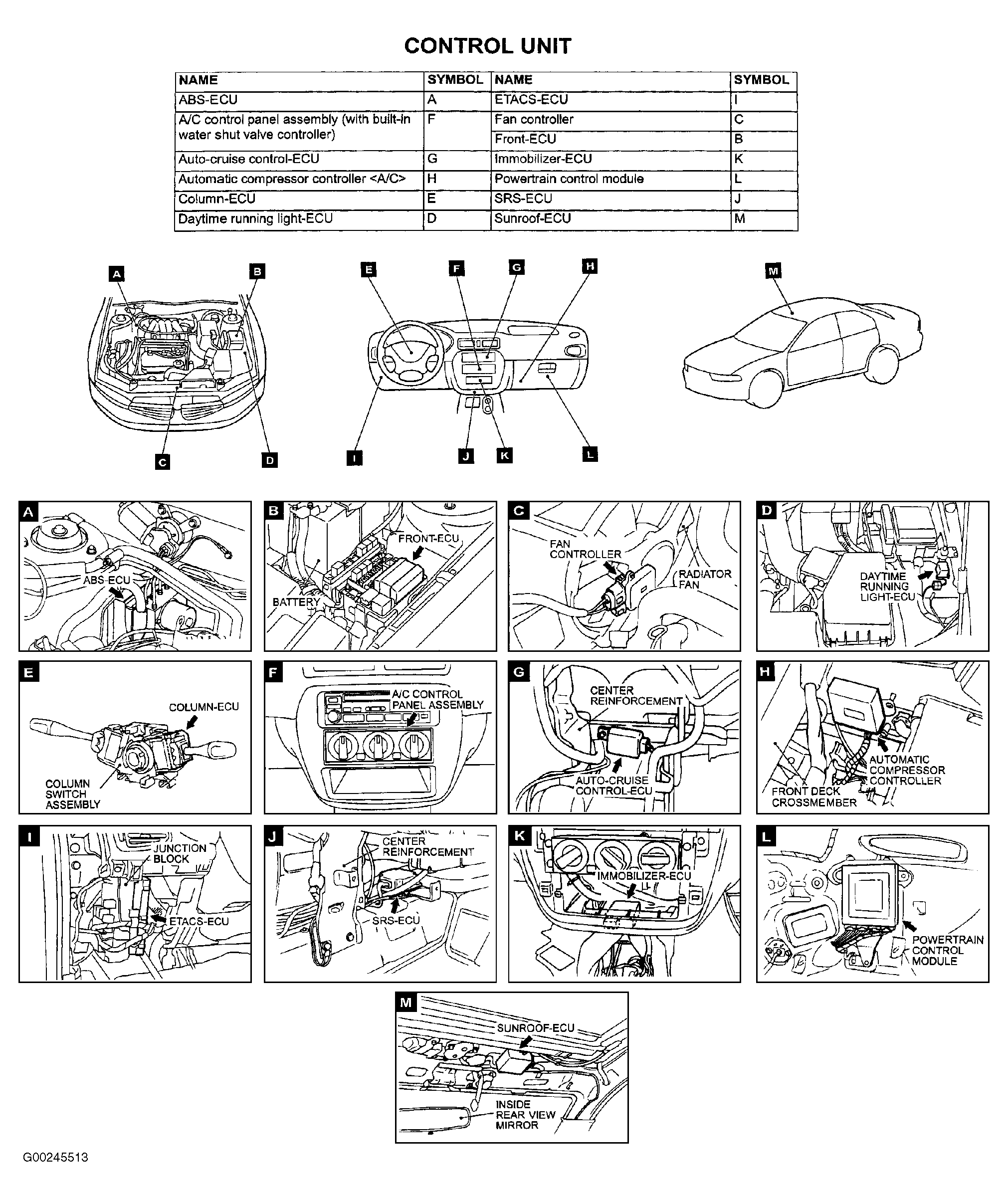

Fig 7: Locating Electronic Control Modules

G00245513

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

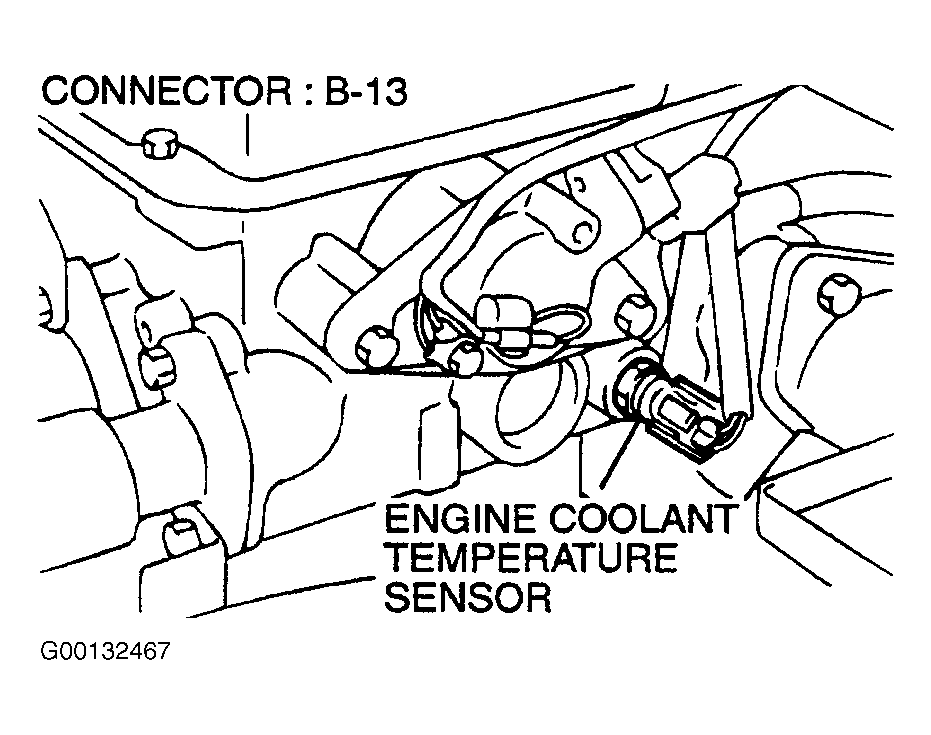

Fig 8: Locating Engine Coolant Temperature Sensor Connector B-13

G00132467

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

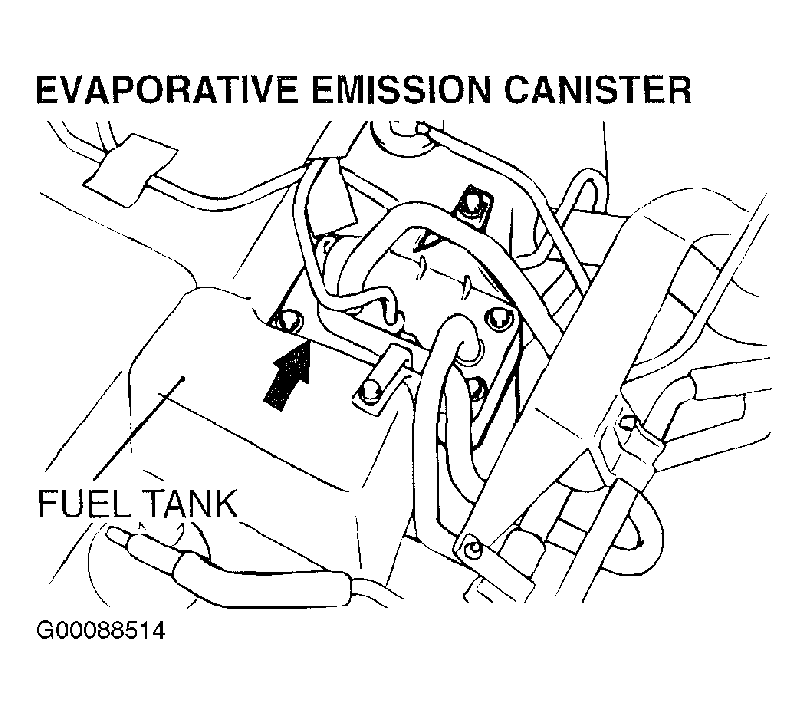

Fig 9: Locating Evaporative Emission Canister

G00088514

Courtesy of CHRYSLER CORP.

Fig 10: Identifying Evaporative Emission Control System Components

G00088509

Courtesy of CHRYSLER CORP.

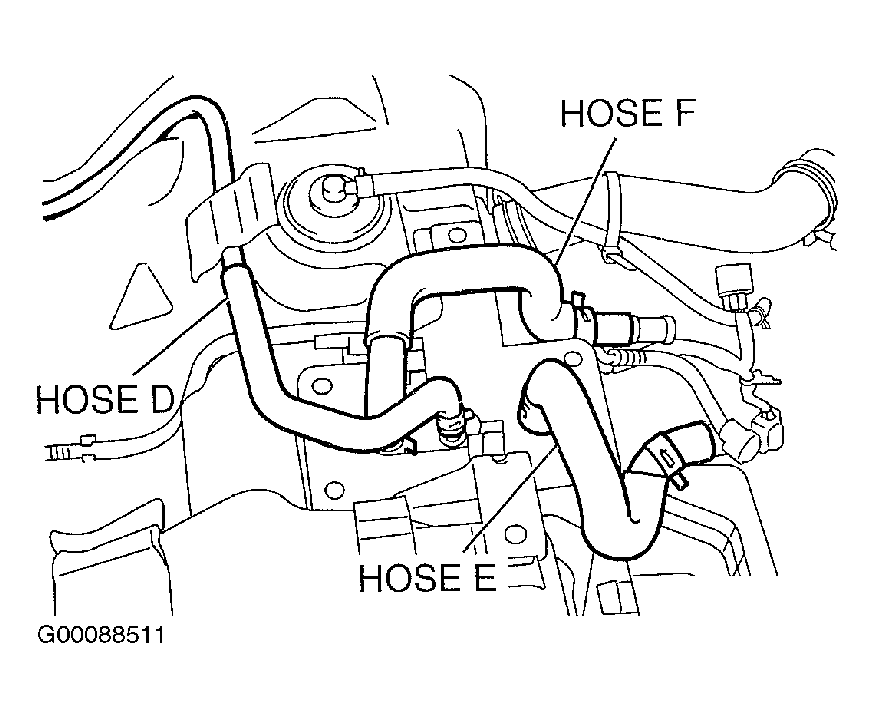

Fig 11: Locating Evaporative Emission Hoses "D", "E" & "F"

G00088511

Courtesy of CHRYSLER CORP.

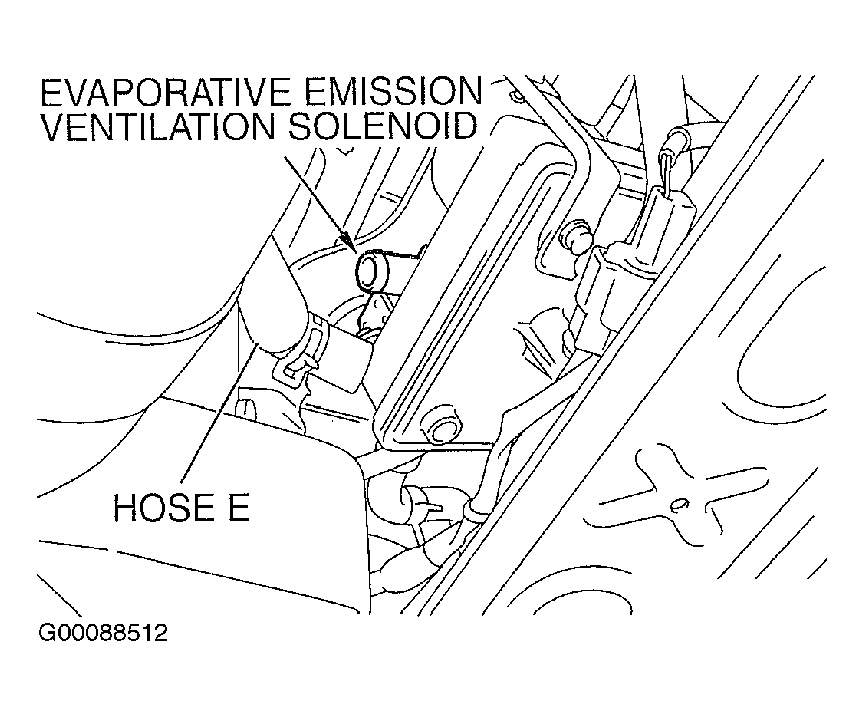

Fig 12: Locating Evaporative Emission Hose "E" On Evaporative Ventilation Solenoid

G00088512

Courtesy of CHRYSLER CORP.

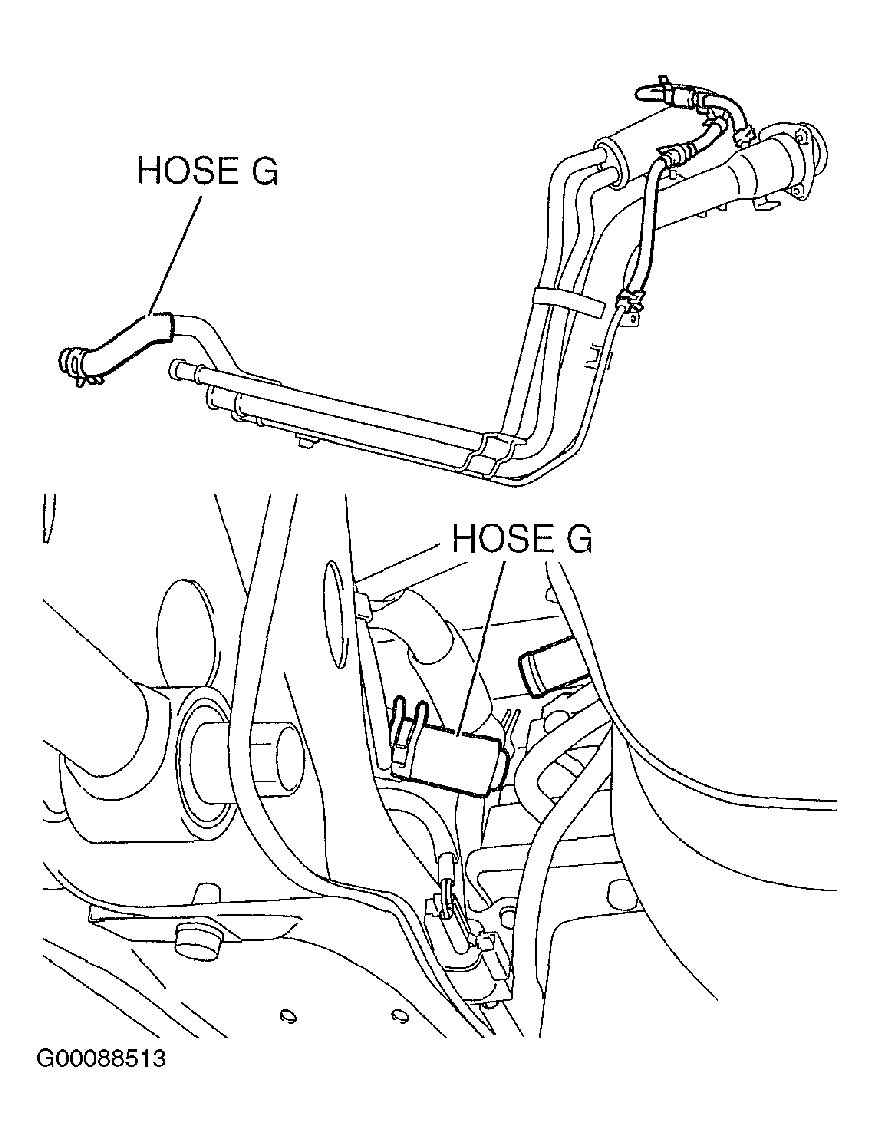

Fig 13: Locating Evaporative Emission Hose "G"

G00088513

Courtesy of CHRYSLER CORP.

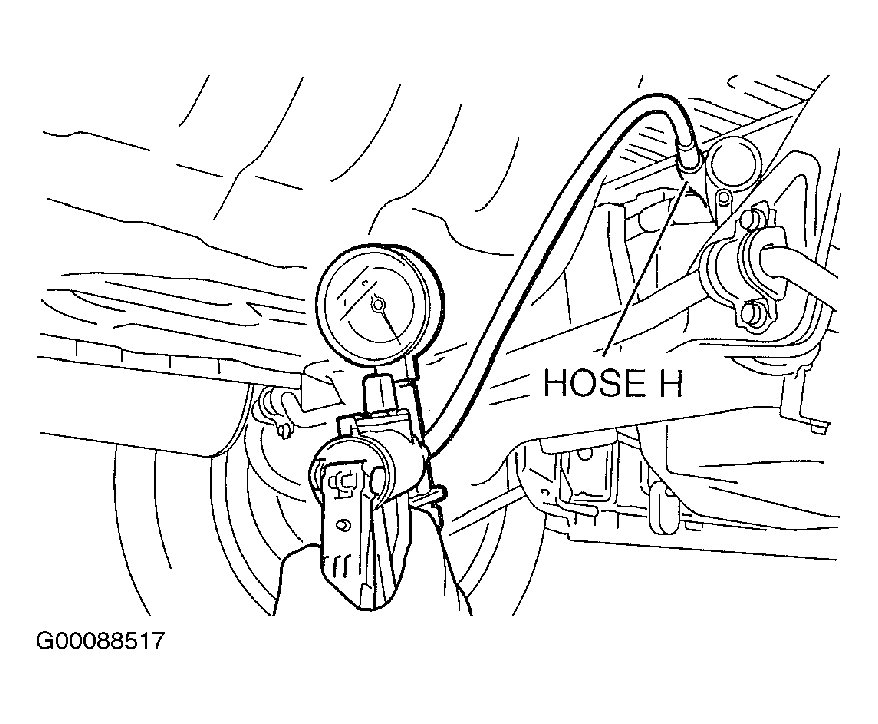

Fig 14: Locating Evaporative Emission Hose "H"

G00088517

Courtesy of CHRYSLER CORP.

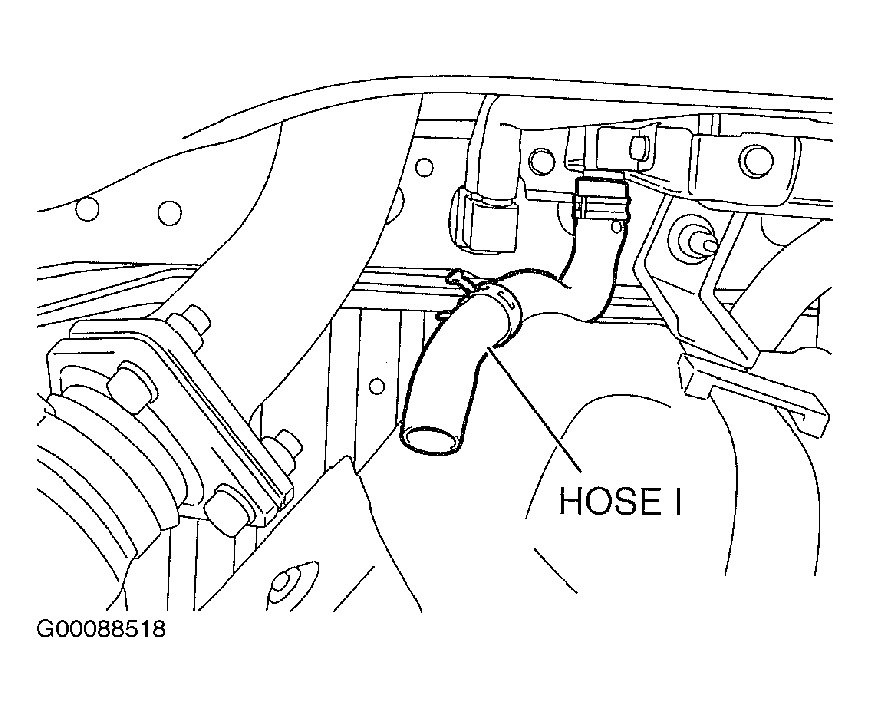

Fig 15: Locating Evaporative Emission Hose "I"

G00088518

Courtesy of CHRYSLER CORP.

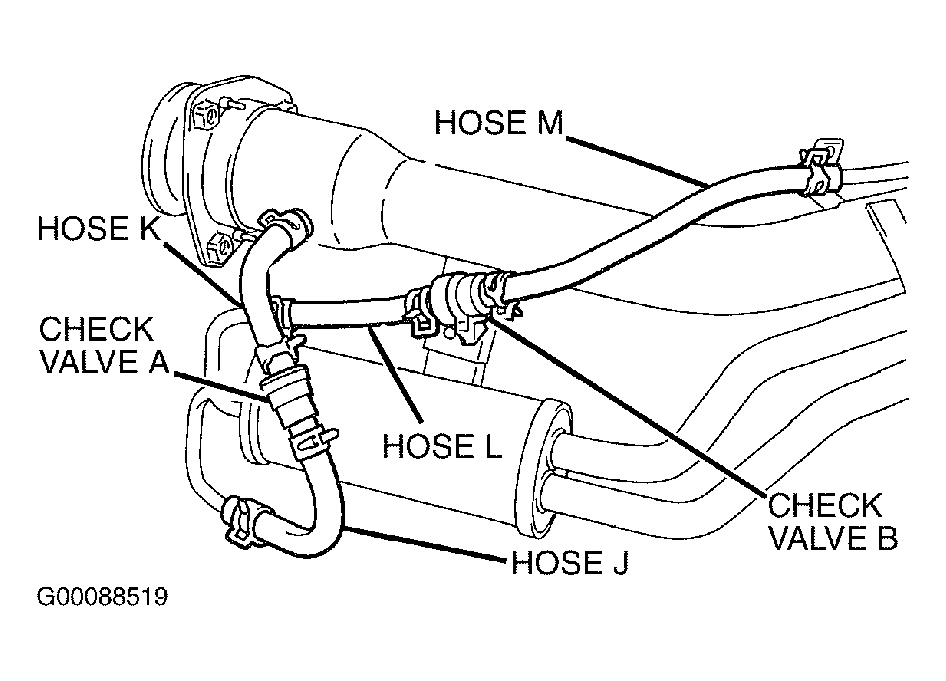

Fig 16: Locating Evaporative Emission Hoses "J"-"M" & Check Valves "A" & "B"

G00088519

Courtesy of CHRYSLER CORP.

Fig 17: Locating Evaporative Emission Hose "N"

G00088522

Courtesy of CHRYSLER CORP.

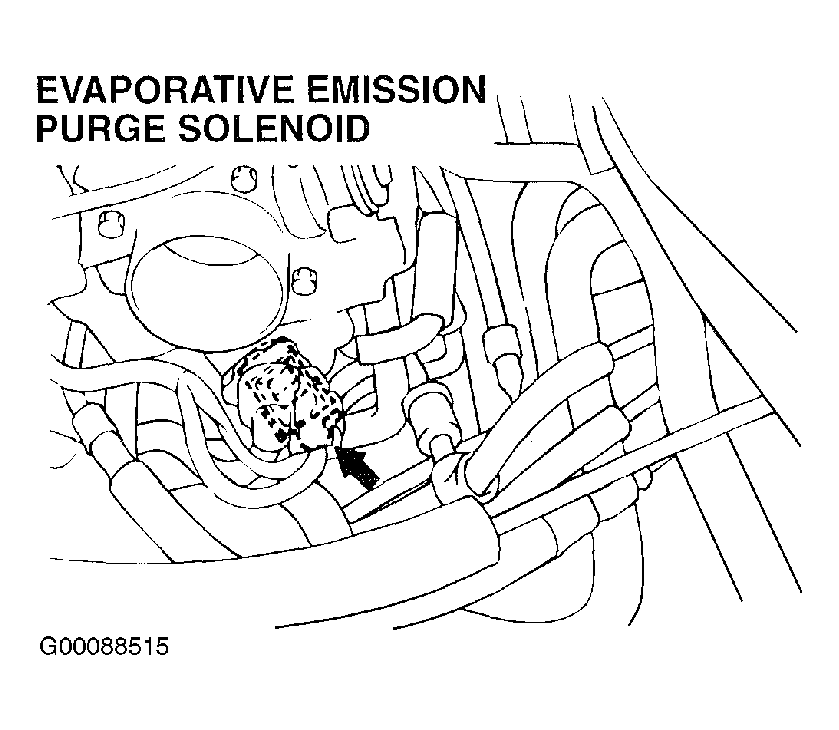

Fig 18: Locating Evaporative Emission Purge Solenoid

G00088515

Courtesy of CHRYSLER CORP.

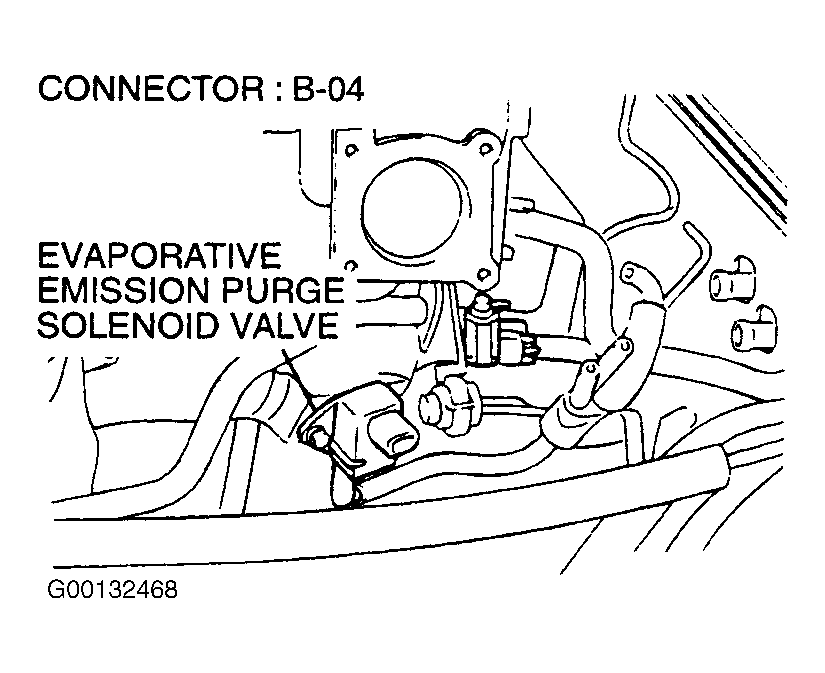

Fig 19: Locating Evaporative Emission Purge Solenoid Connector B-04

G00132468

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

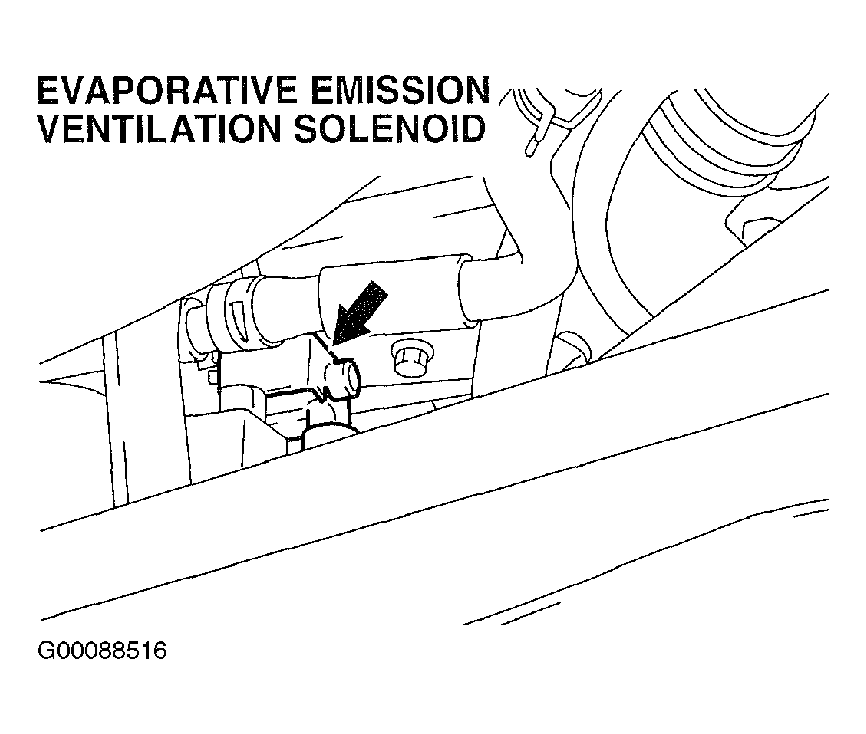

Fig 20: Locating Evaporative Emission Ventilation Solenoid

G00088516

Courtesy of CHRYSLER CORP.

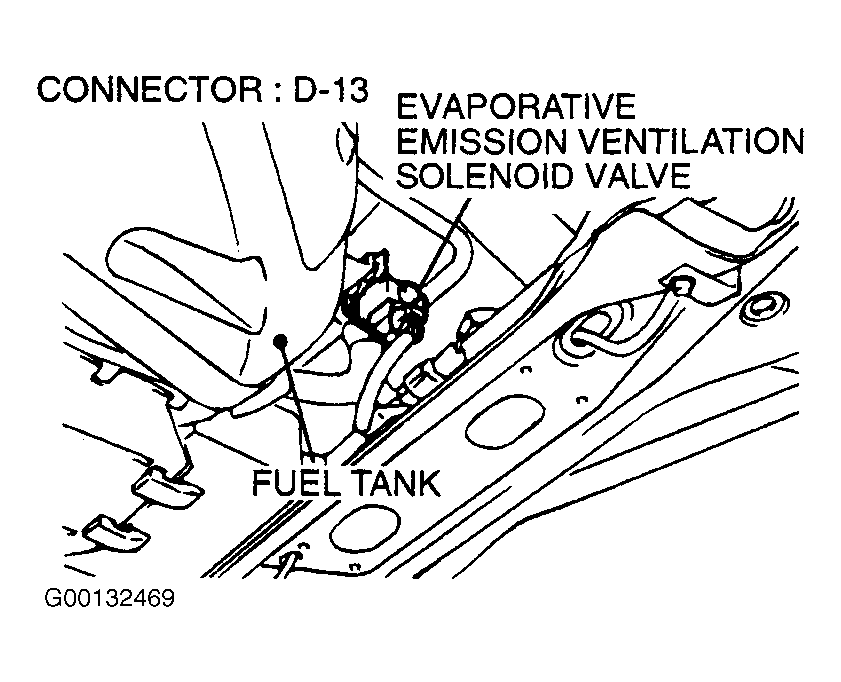

Fig 21: Locating Evaporative Emission Ventilation Solenoid Connector D-12

G00132469

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

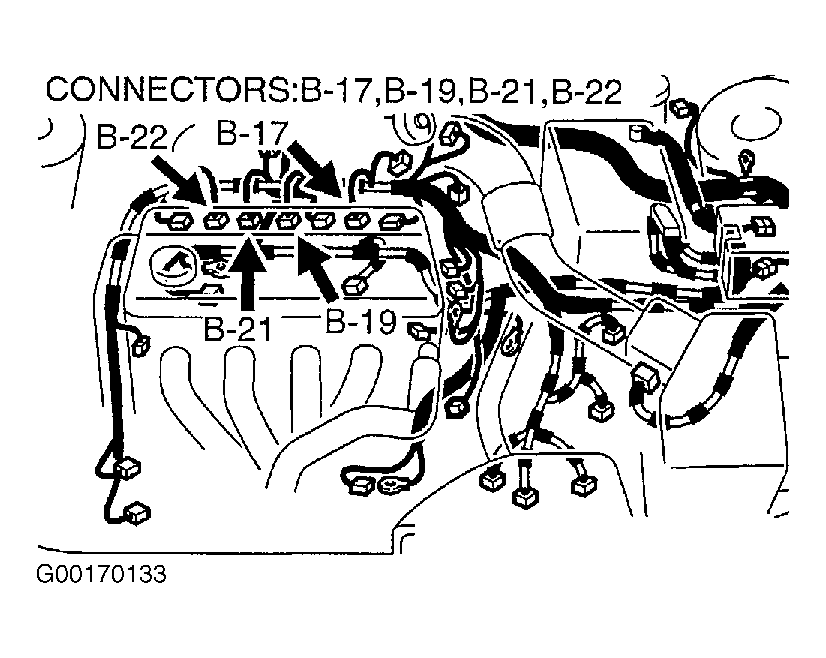

Fig 22: Locating Fuel Injector Connectors

G00170133

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 23: Locating Fuel Tank Differential Pressure Sensor Connector D-11

G00170101

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 24: Locating Generator Connector B-46

G00132481

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

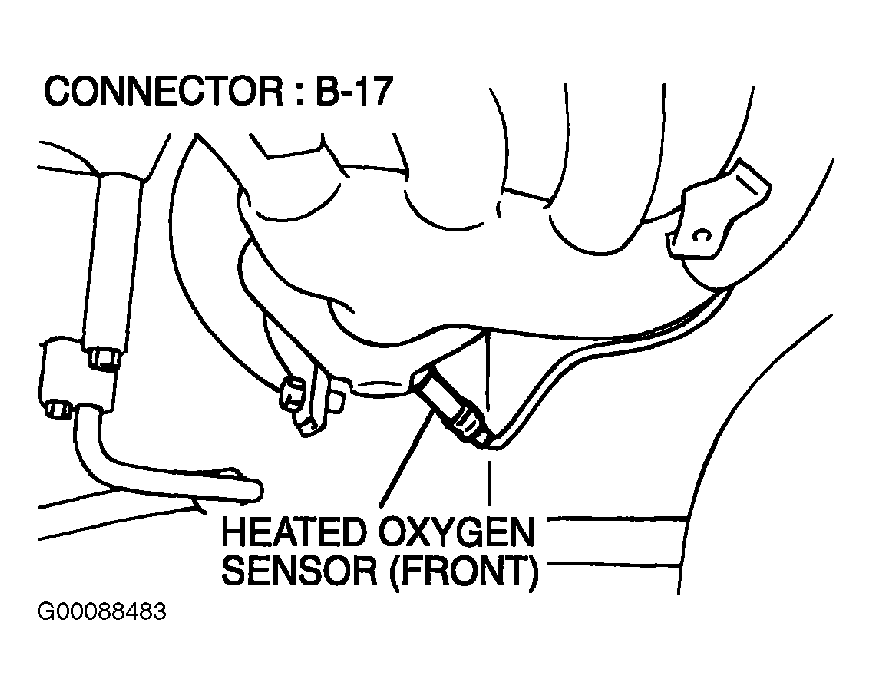

Fig 25: Locating Heated Oxygen Sensor (Front) Connector B-15

G00088483

Courtesy of CHRYSLER CORP.

Fig 26: Locating Heated Oxygen Sensor (Rear) Connector C-19

G00088485

Courtesy of CHRYSLER CORP.

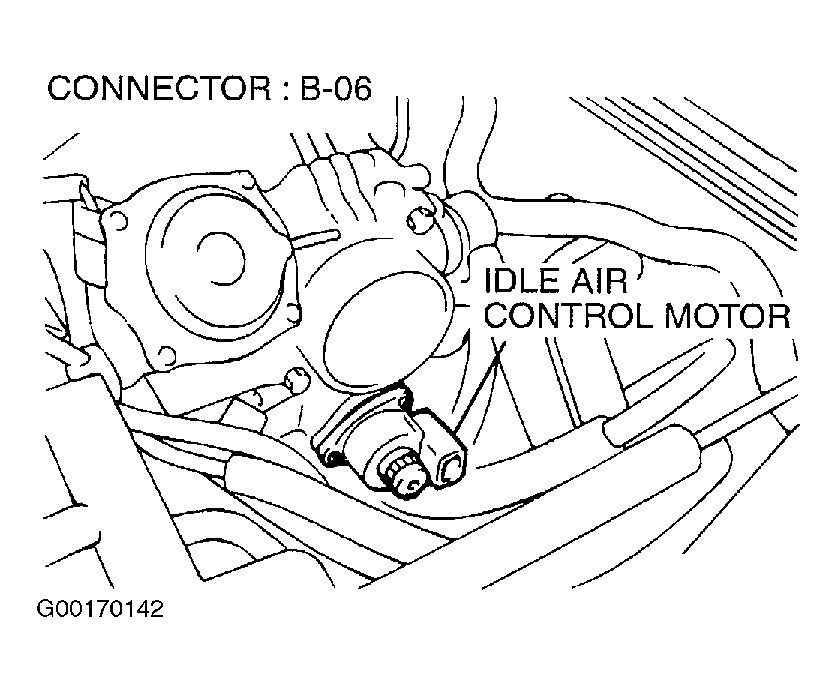

Fig 27: Locating Idle Air Control Motor Connector B-06

G00170142

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

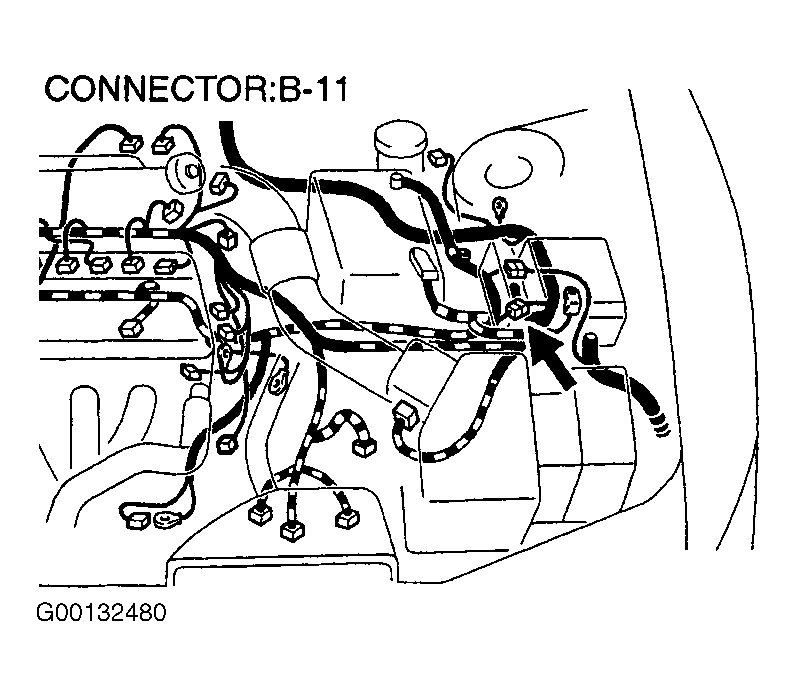

Fig 28: Locating Intermediate Connector B-11

G00132480

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

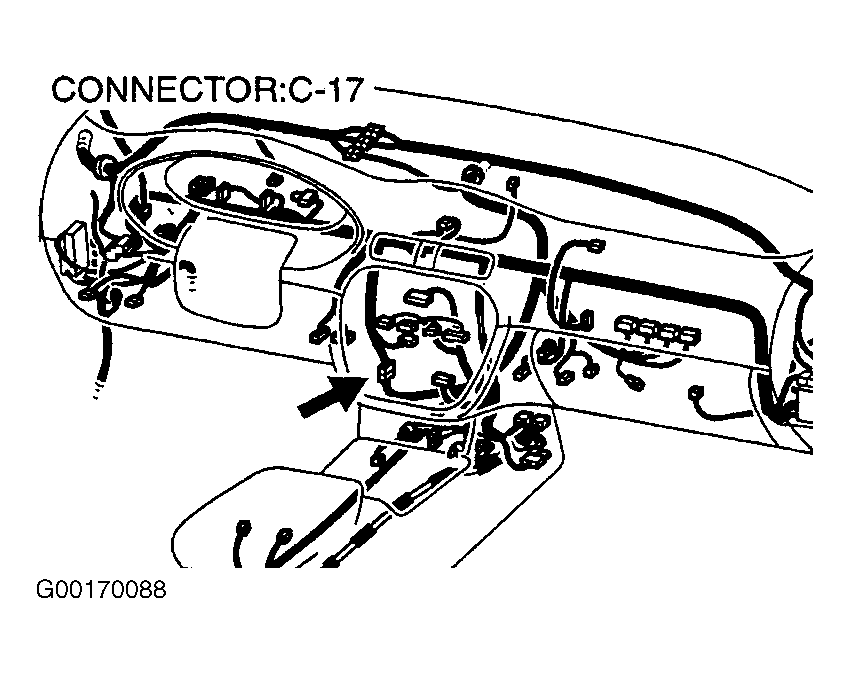

Fig 29: Locating Intermediate Connector C-17

G00170088

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

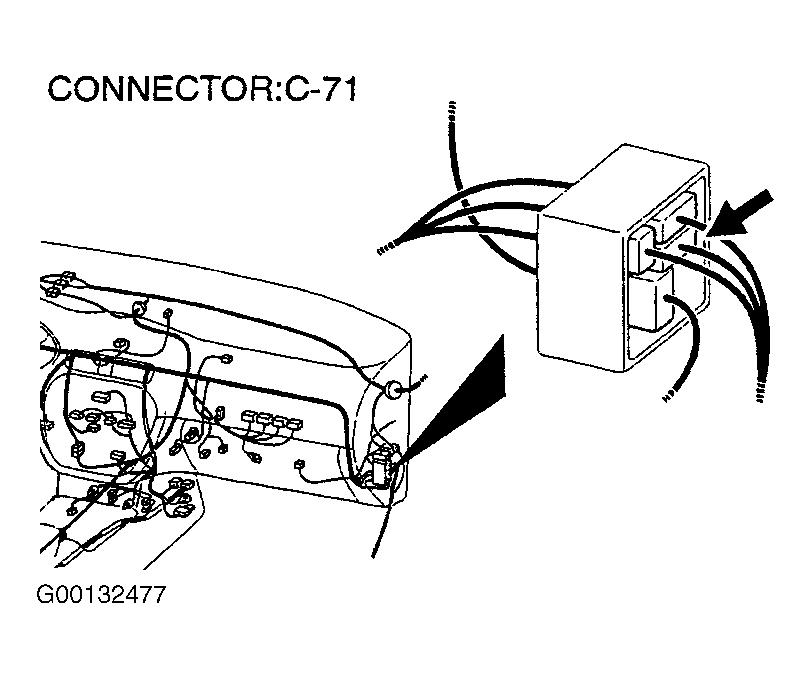

Fig 30: Locating Intermediate Connector C-71

G00132477

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 31: Locating Intermediate Connector D-14

G00170131

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 32: Locating Intermediate Connector D-15

G00170099

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

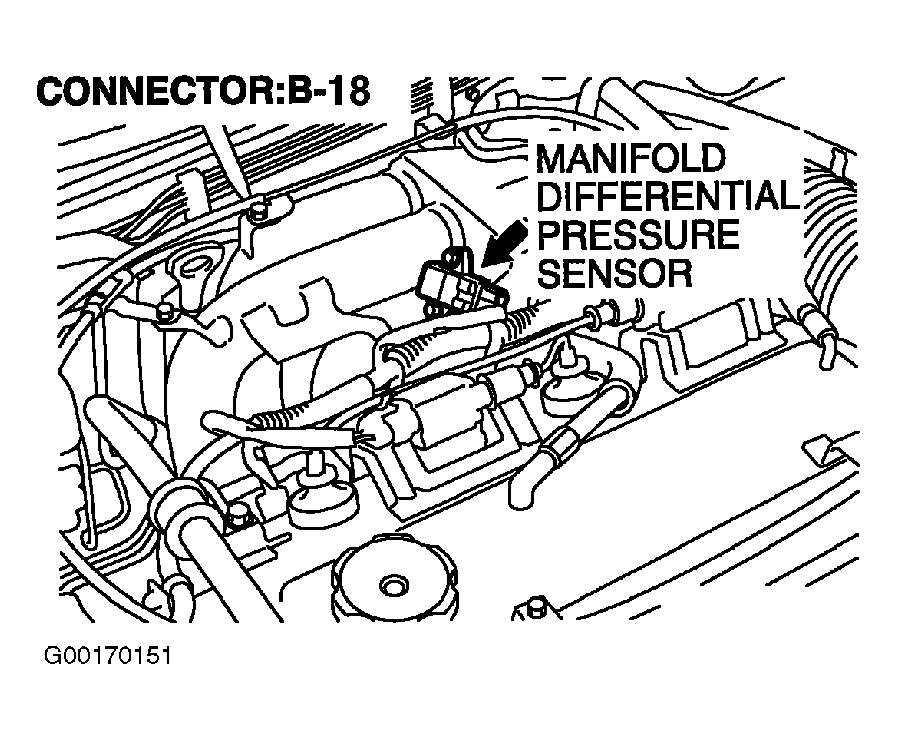

Fig 33: Locating Manifold Differential Pressure Sensor Connector B-18

G00170151

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

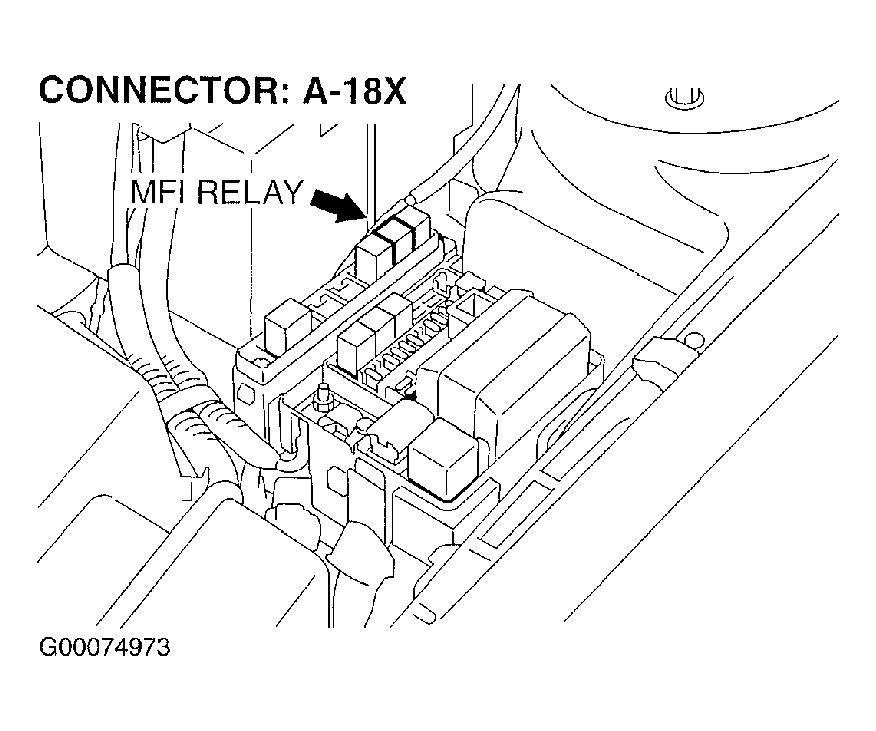

Fig 34: Locating MFI Relay Connector A-18X

G00074973

Courtesy of CHRYSLER CORP.

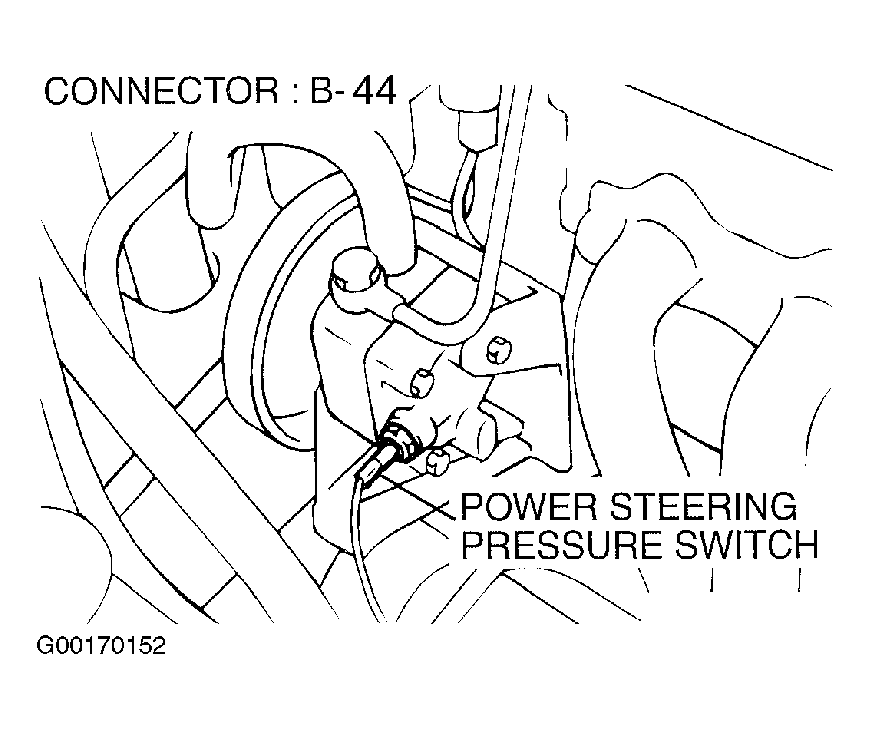

Fig 35: Locating Power Steering Pressure Switch Connector B-44

G00170152

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 36: Locating Powertrain Control Module Connectors

G00170119

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

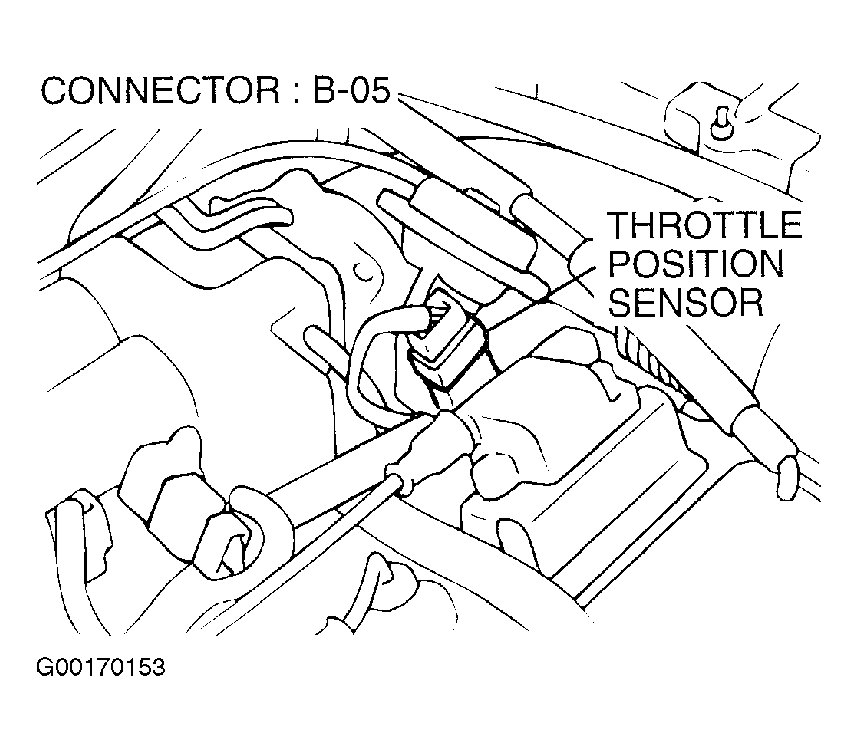

Fig 37: Locating Throttle Position Sensor Connector B-05

G00170153

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

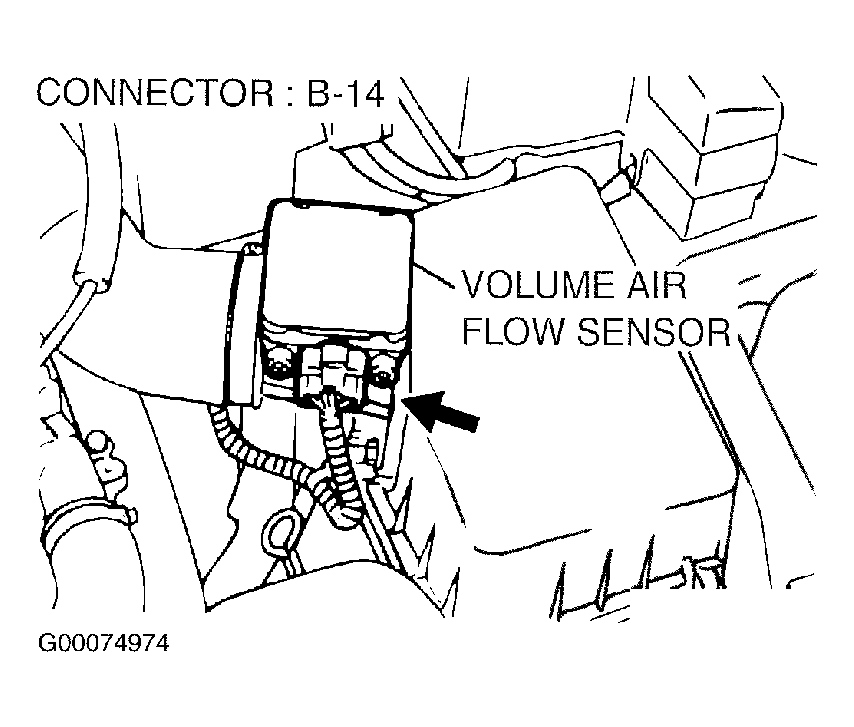

Fig 38: Locating Volume Air Flow Sensor Connector B-14

G00074974

Courtesy of CHRYSLER CORP.
