Generators & Regulators: Overhaul: Generator: Notes

For generator overhaul procedures, see Fig 1 or Fig 2 .

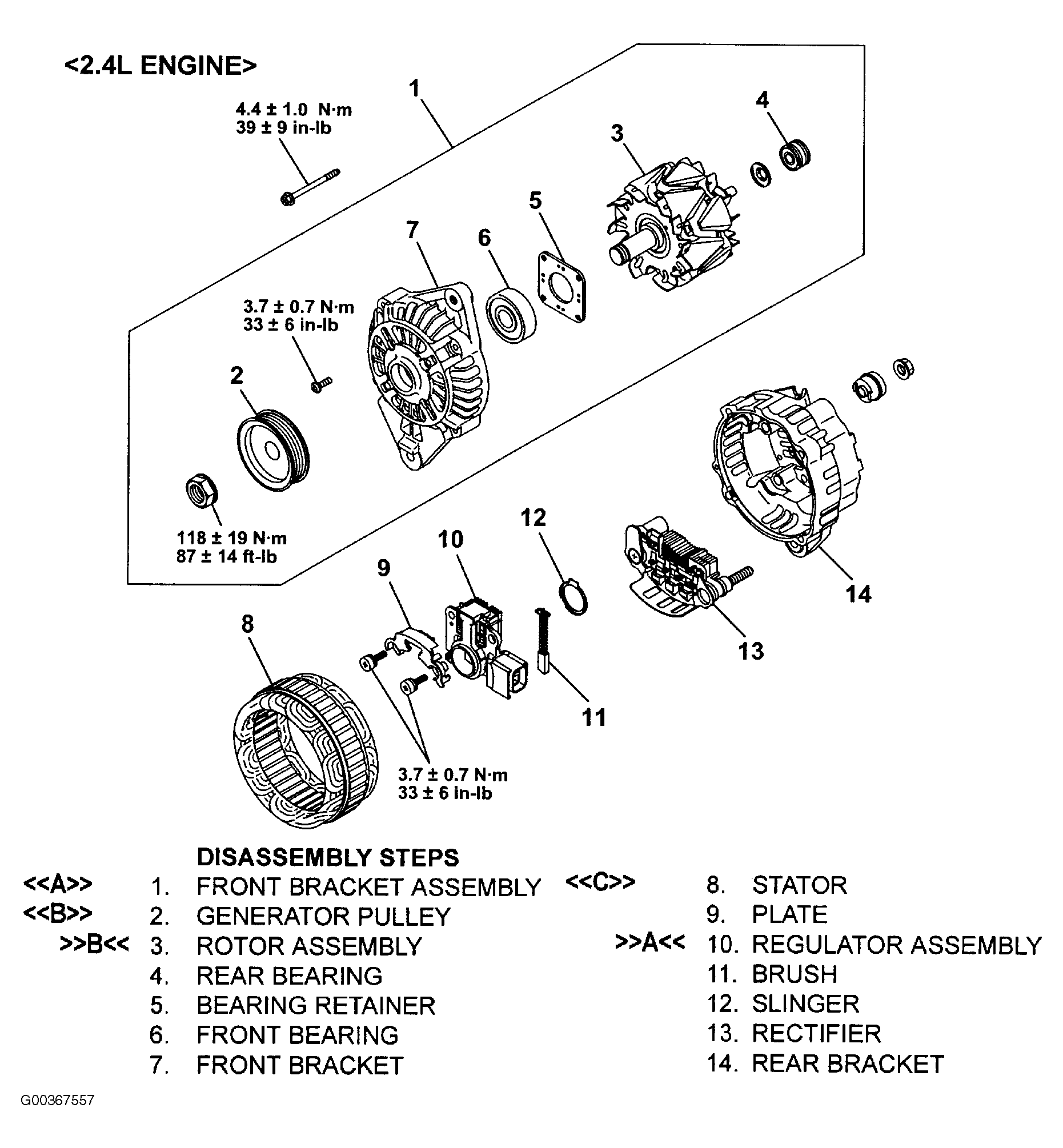

Fig 1: Exploded View Of Generator Disassembly & Assembly (2.4L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Exploded View Of Generator Disassembly & Assembly (3.0L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
