Drive Cycles

All kinds of diagnostic trouble codes (DTC's) can be monitored by carrying out a test drive according to one of the appropriate drive cycle patterns. In other words, doing such a drive regenerates any kind of trouble which involves illuminating the Malfunction Indicator Lamp (SERVICE ENGINE SOON or Check Engine) and verifies the repair procedure has eliminated the trouble.

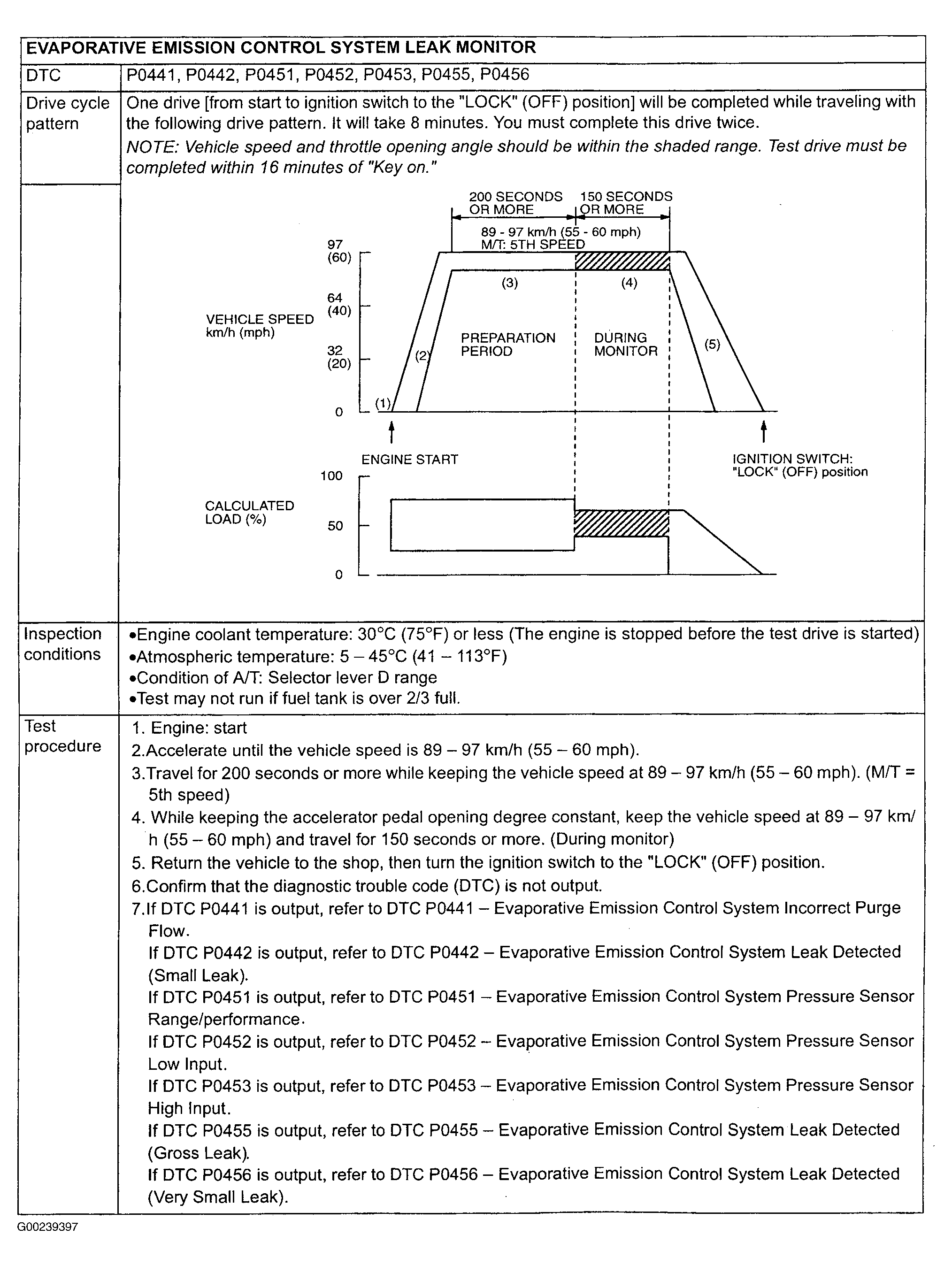

Fig 1: Evaporative Emission Control System Leak Monitor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

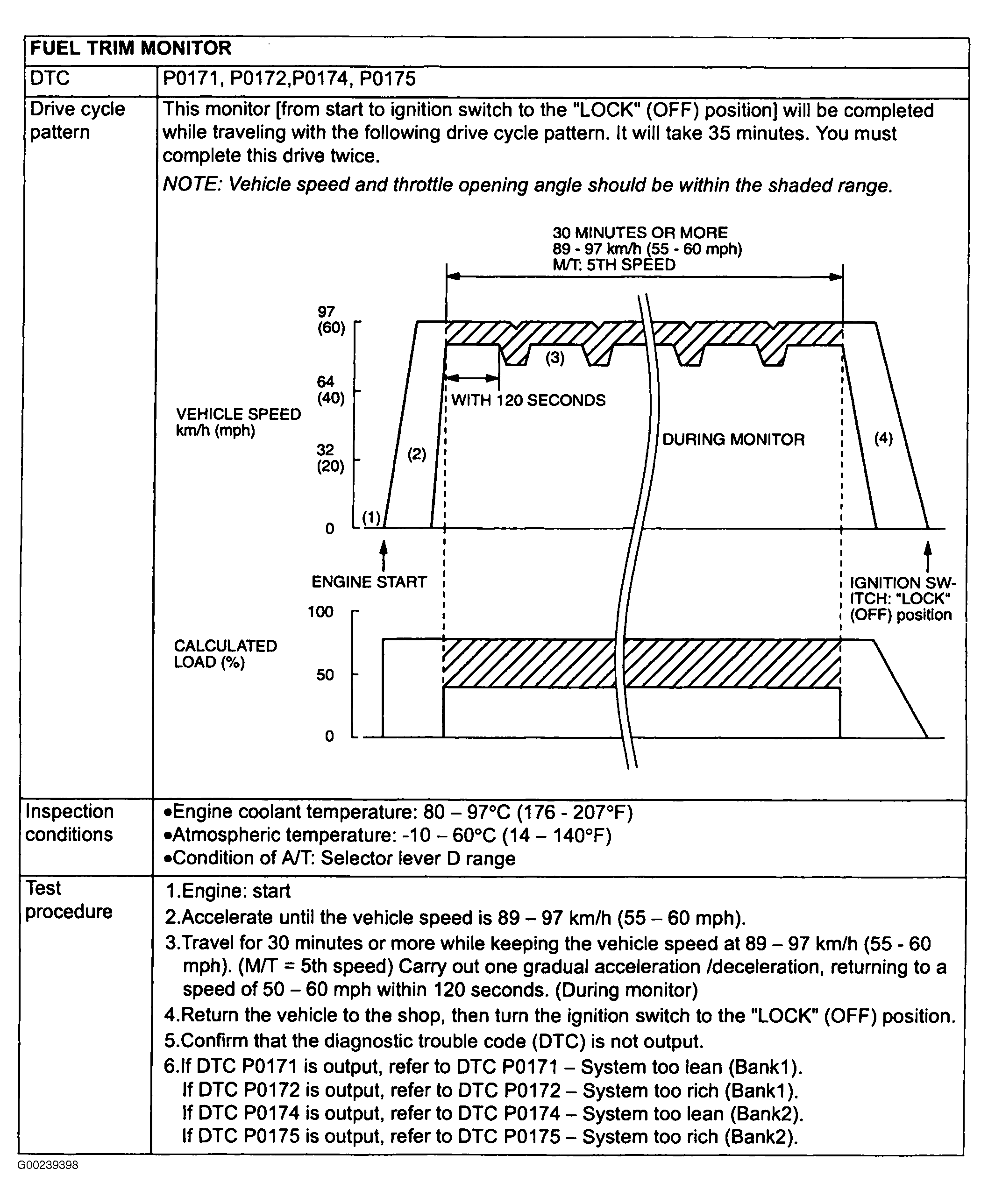

Fig 2: Fuel Trim Monitor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

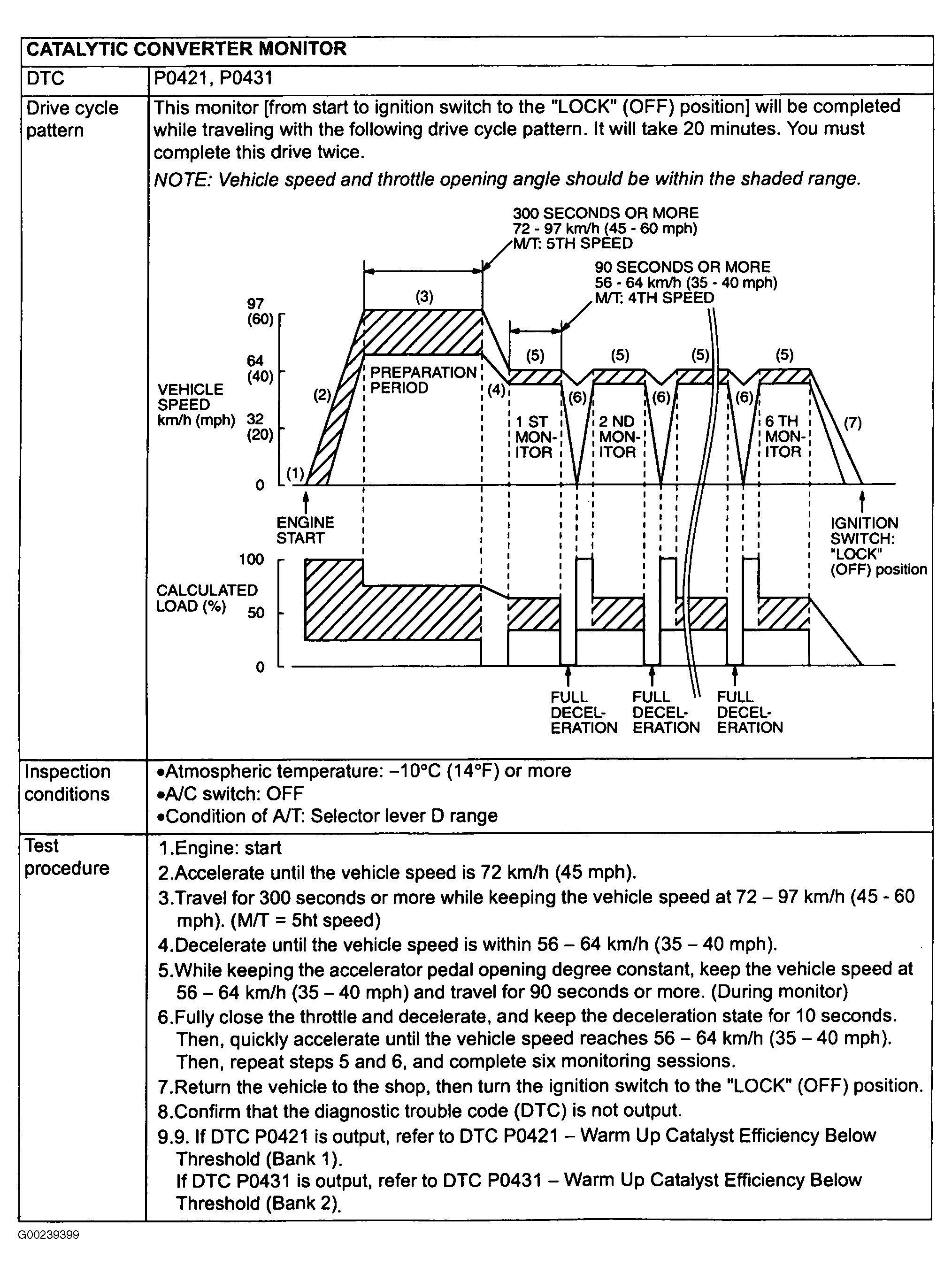

Fig 3: Catalytic Converter Monitor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

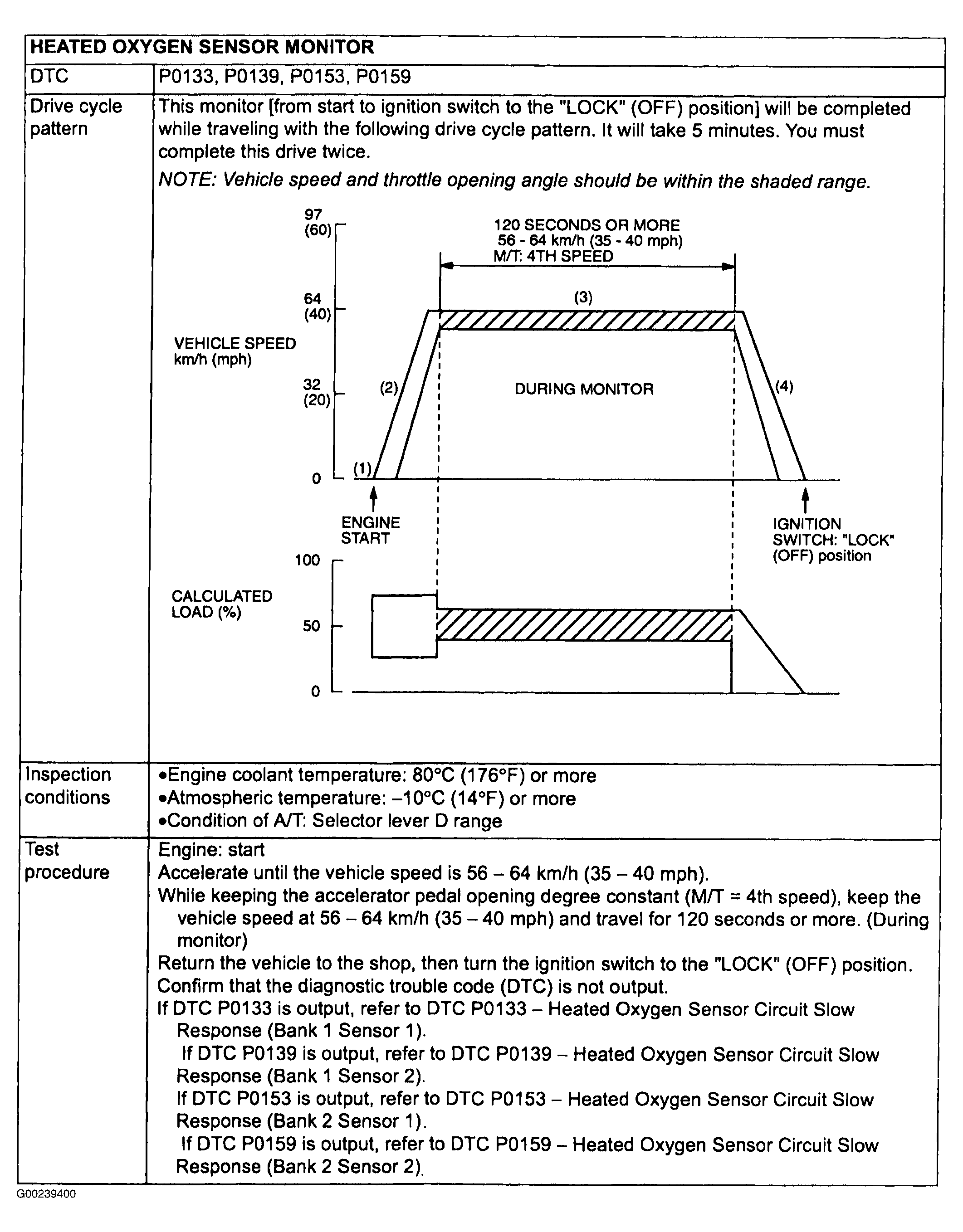

Fig 4: Heated Oxygen Sensor Monitor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

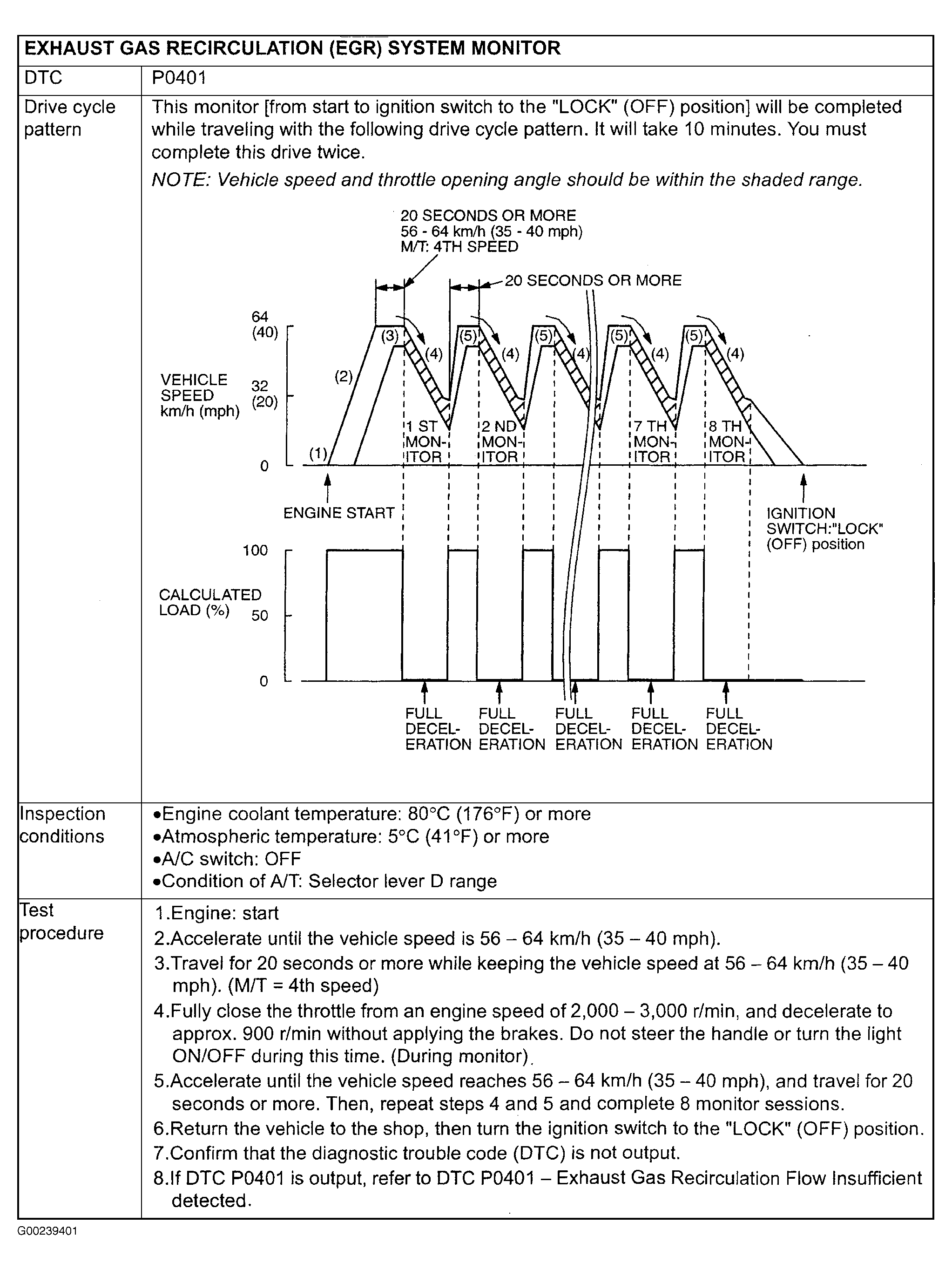

Fig 5: Exhaust Gas Recirculation (EGR) System Monitor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

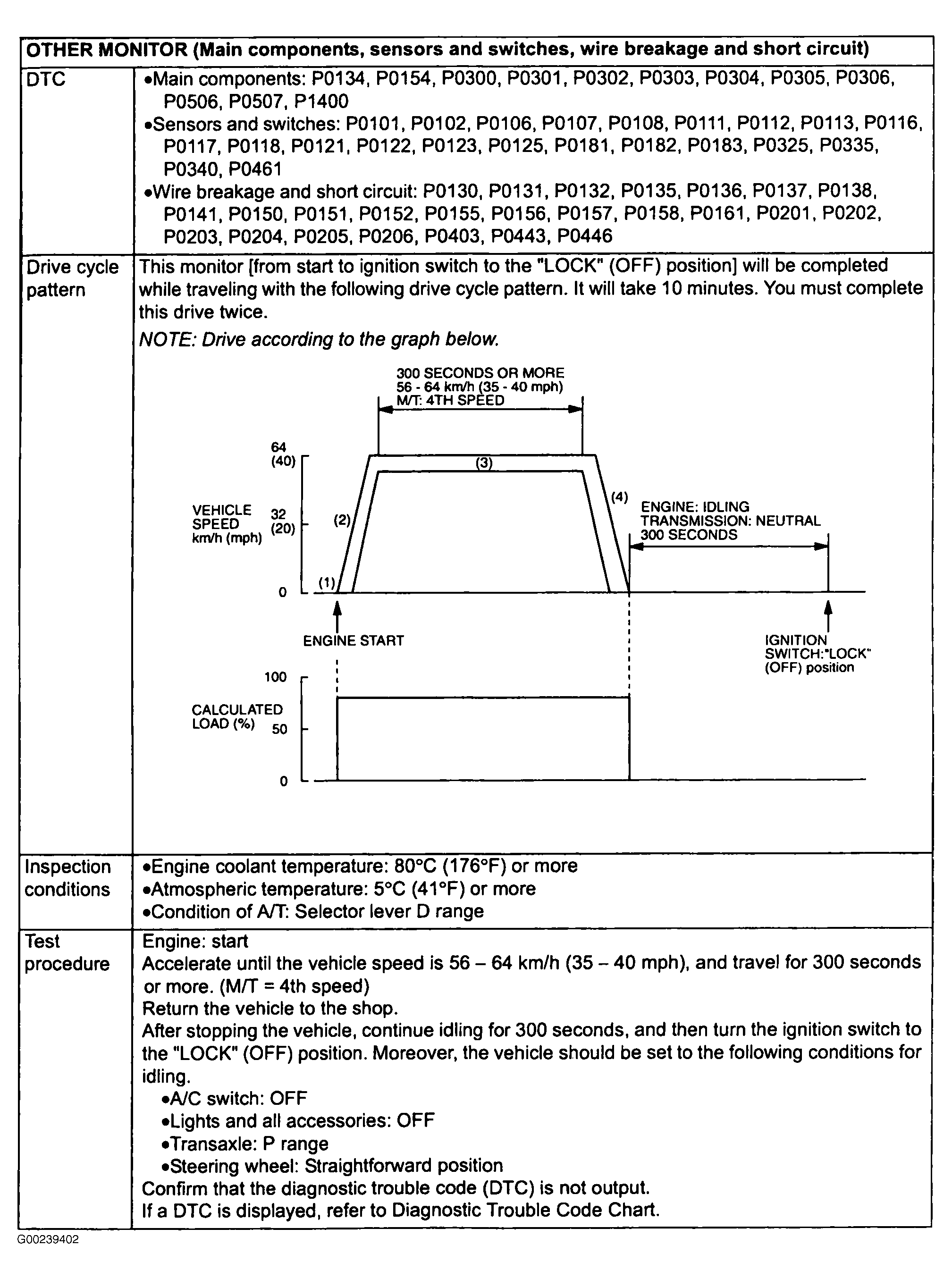

Fig 6: Other Monitor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
