Removal And Installation

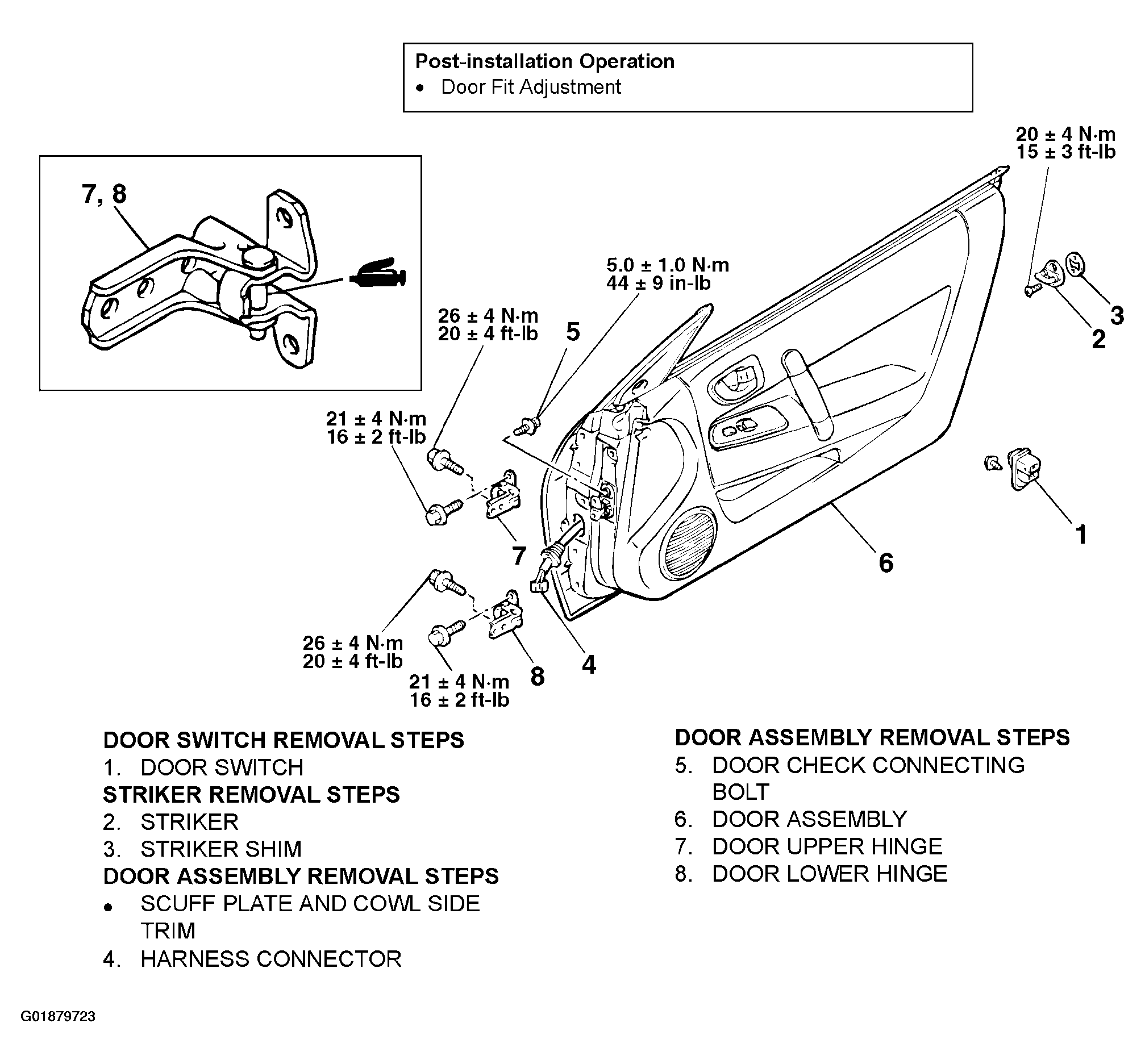

Fig 1: Identifying Removal Steps Of Door Assembly
G01879723Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
