Door Switch Check

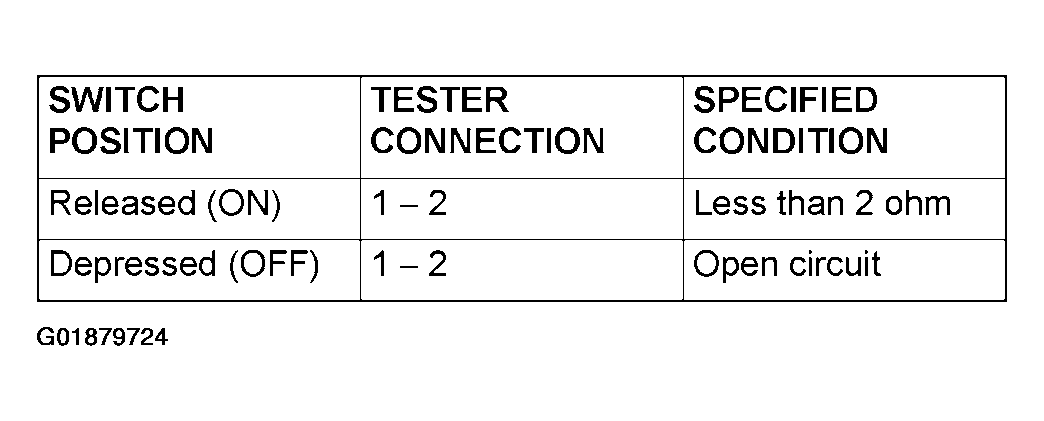

Fig 1: Door Switch Specified Condition Table
G01879724Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

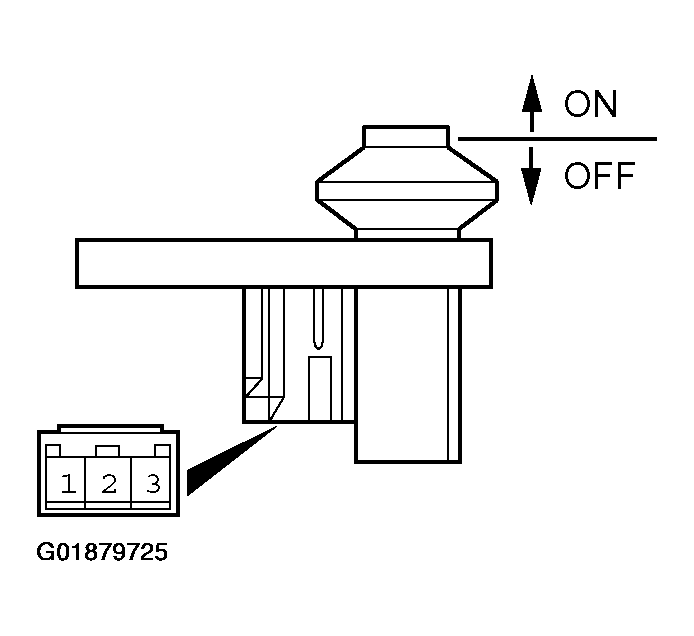

Fig 2: Identifying Door Switch Connector Terminals
G01879725Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
