Disassembly And Assembly: Notes

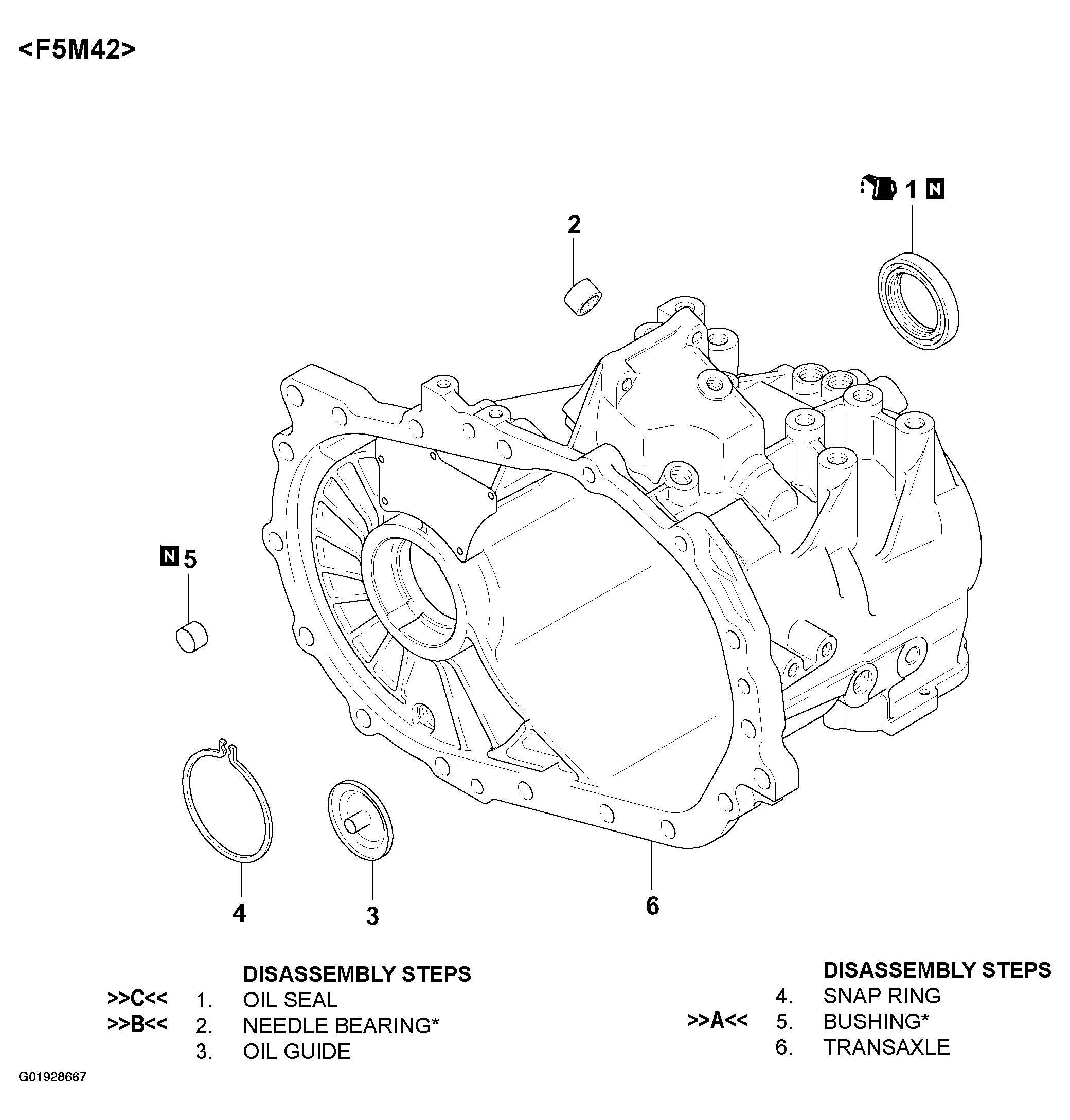

Fig 1: Exploded View Of Transmission Case F5M42

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MD998325: Differential Oil Seal Installer < F5M42 >
• MD998800: Differential Oil Seal Installer < F5M51 >

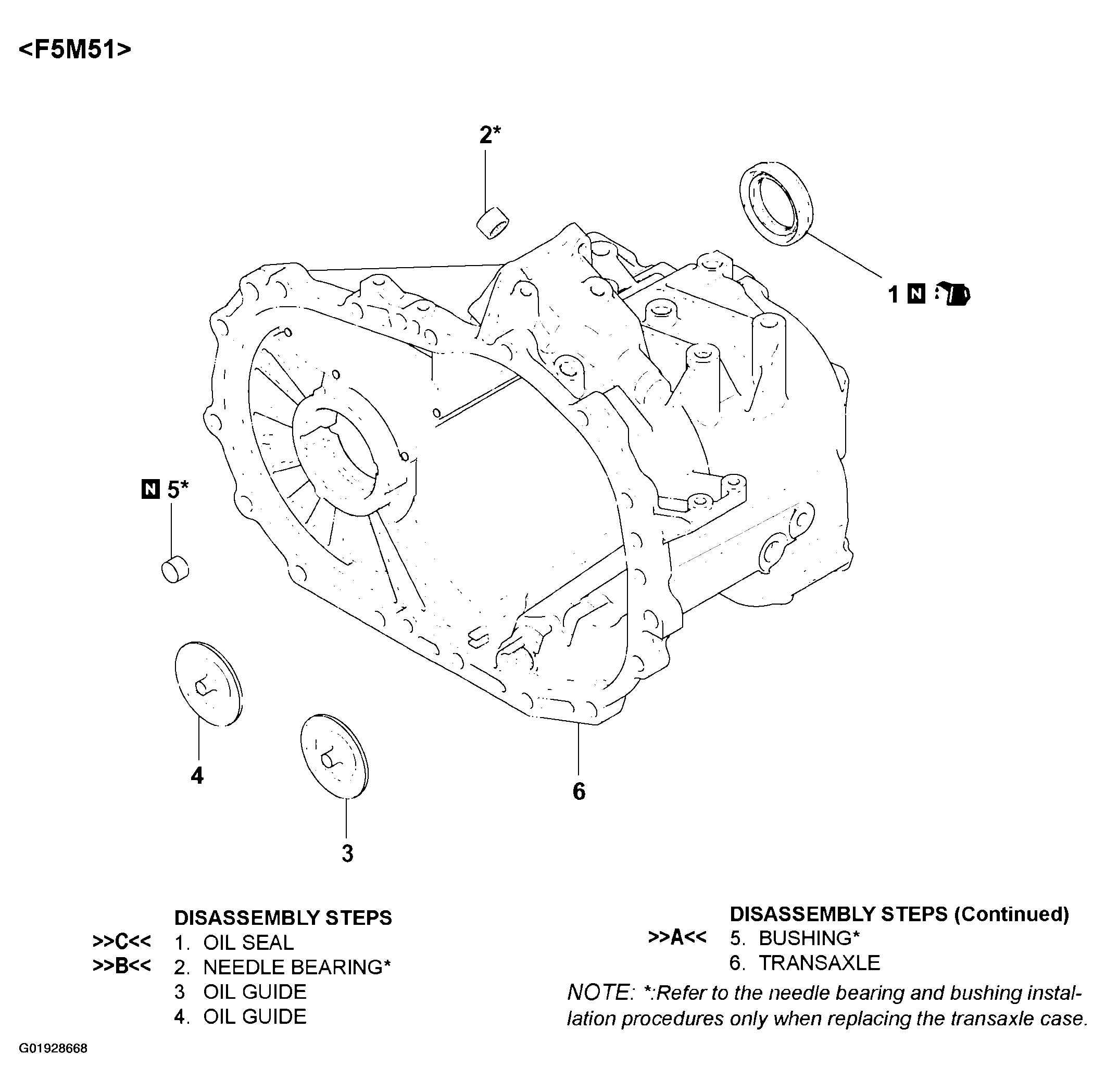

Fig 2: Exploded View Of Transmission Case F5M51

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
