Home >> Mitsubishi >> 2003 >> Eclipse Spyder GS, Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Overhaul >> Control Housing >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

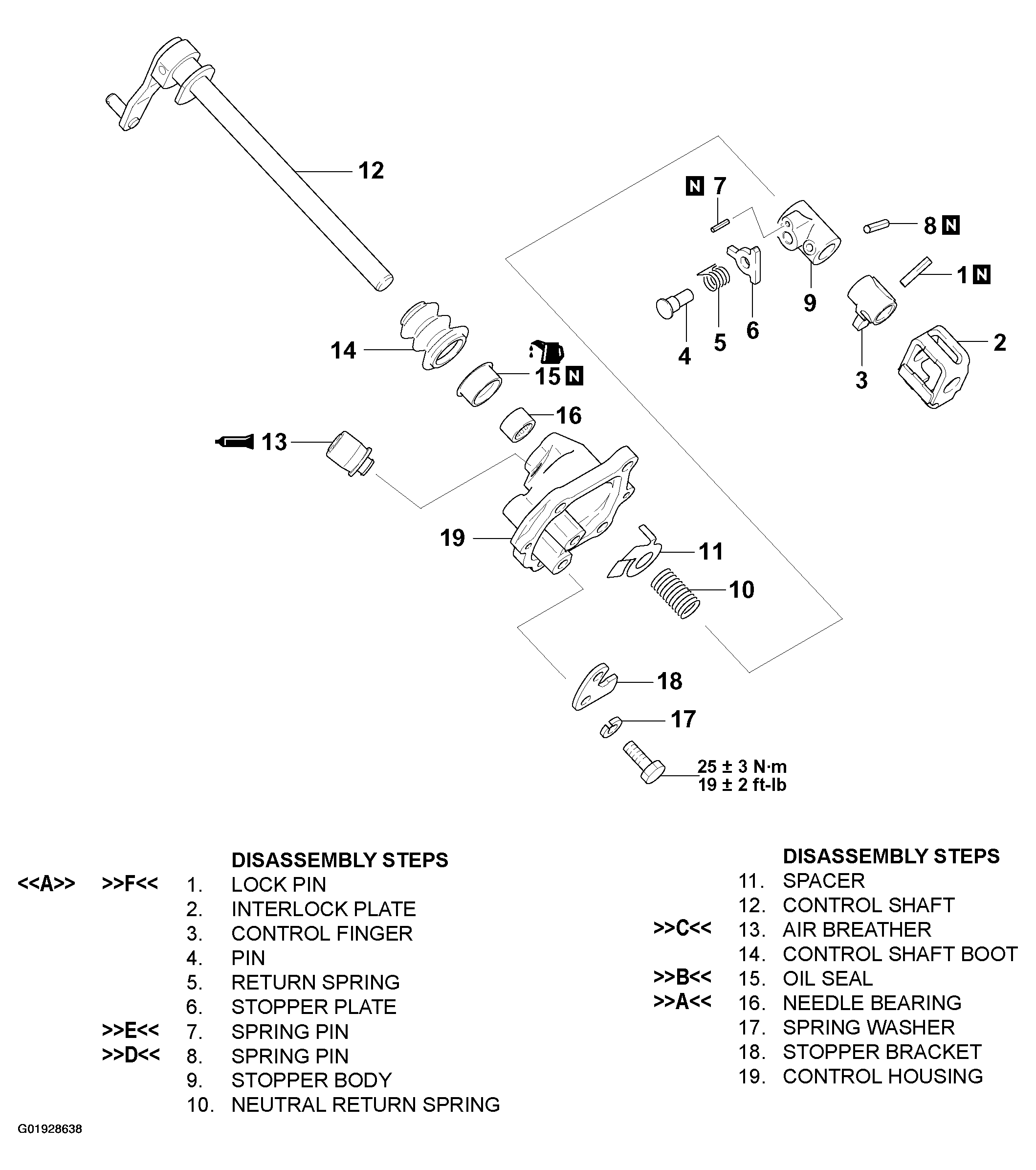

Fig 1: Exploded View Of Control Housing
G01928638Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
