Disassembly And Assembly

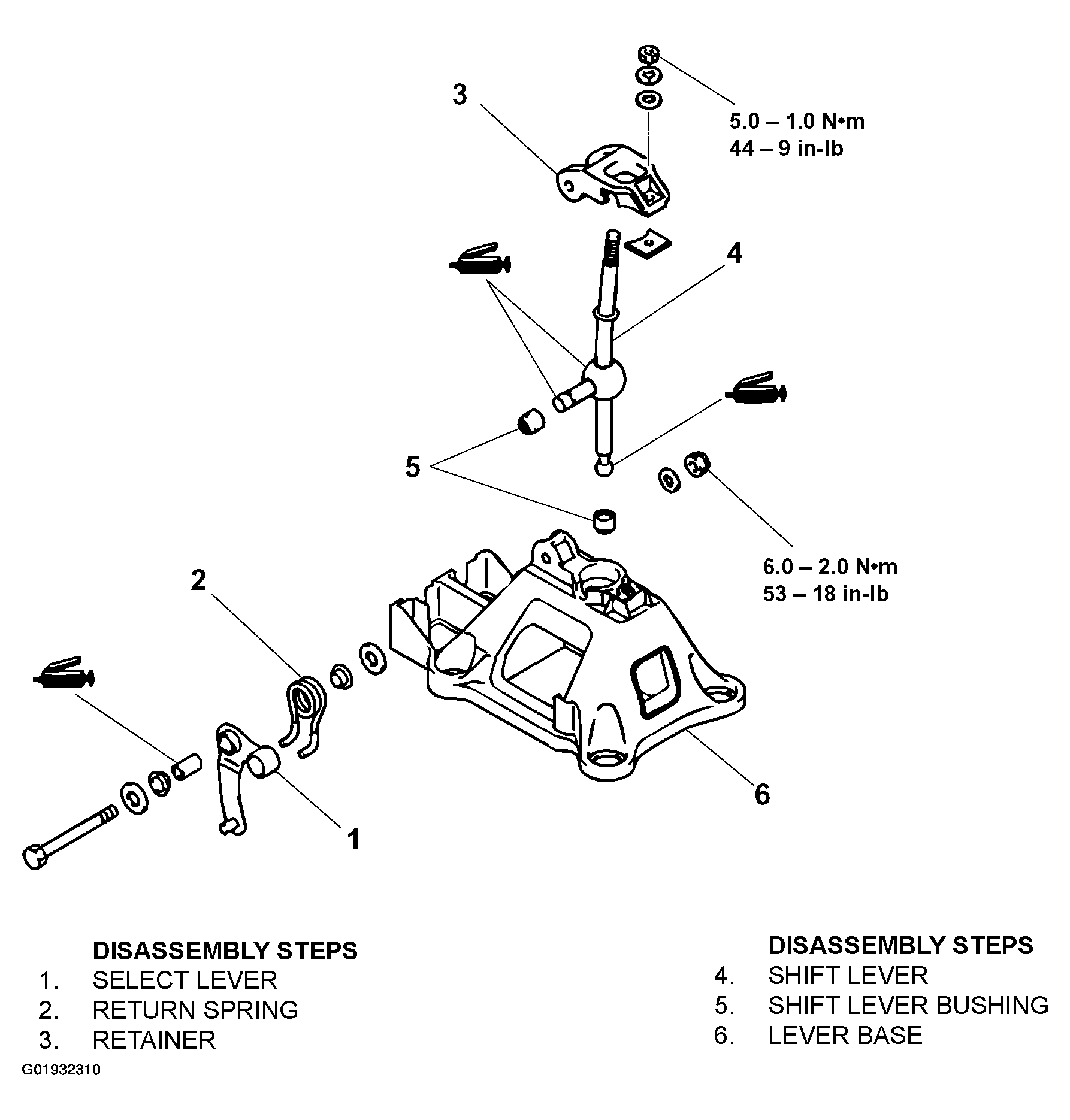

Fig 1: Exploded View And Torque Specification Of Shift Lever Assembly

G01932310

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
