Disassembly And Assembly: Notes

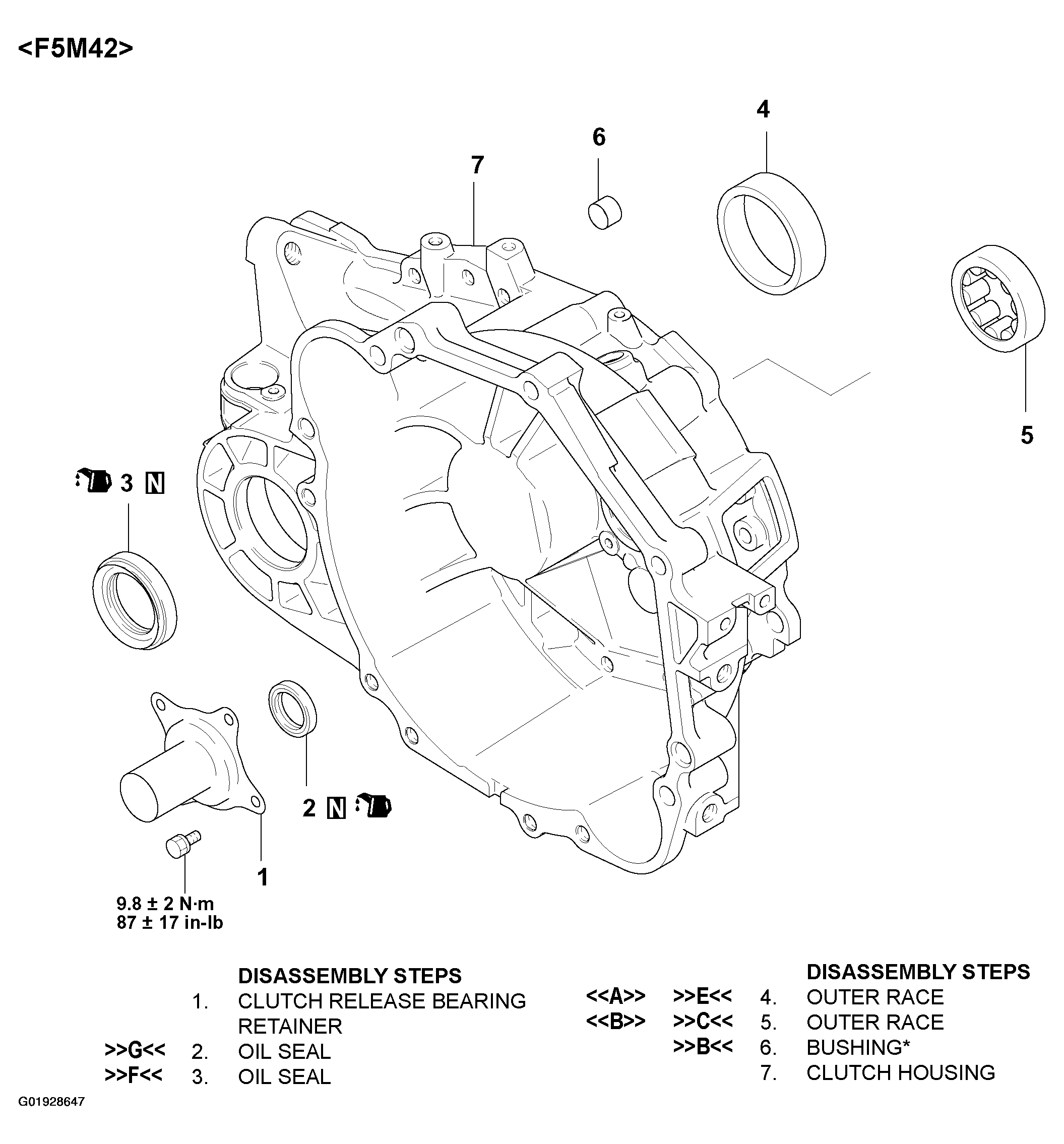

Fig 1: Exploded View Of Clutch Housing F5M42

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB990926: Installer Adapter < F5M42 >
• MB990928: Installer Adapter < F5M51 >
• MB990934: Installer Adapter < F5M42 >
• MB990935: Installer Adapter
• MB990938: Handle
• MB991445: Bushing Remover and Installer Base < F5M51 >
• MD998325: Differential Oil Seal Installer < F5M42 >
• MD998346: Bearing Outer Race Remover < F5M42 >
• MD998772: Valve Spring Compressor < F5M42 >
• MD998800: Differential Oil Seal Installer < F5M51 >
• MD999566: Claw

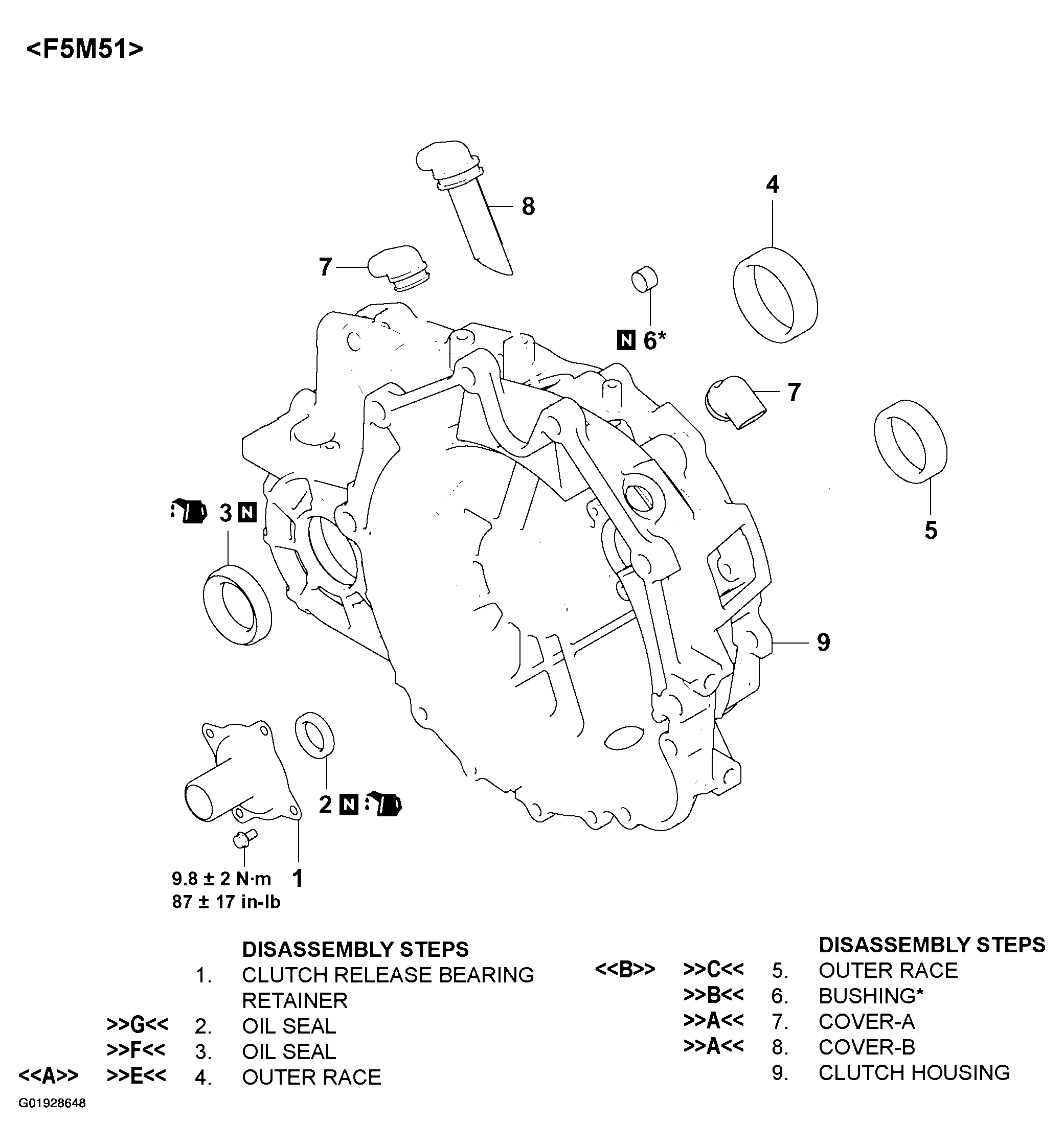

Fig 2: Exploded View Of Clutch Housing F5M51

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
