Removal And Installation: Notes

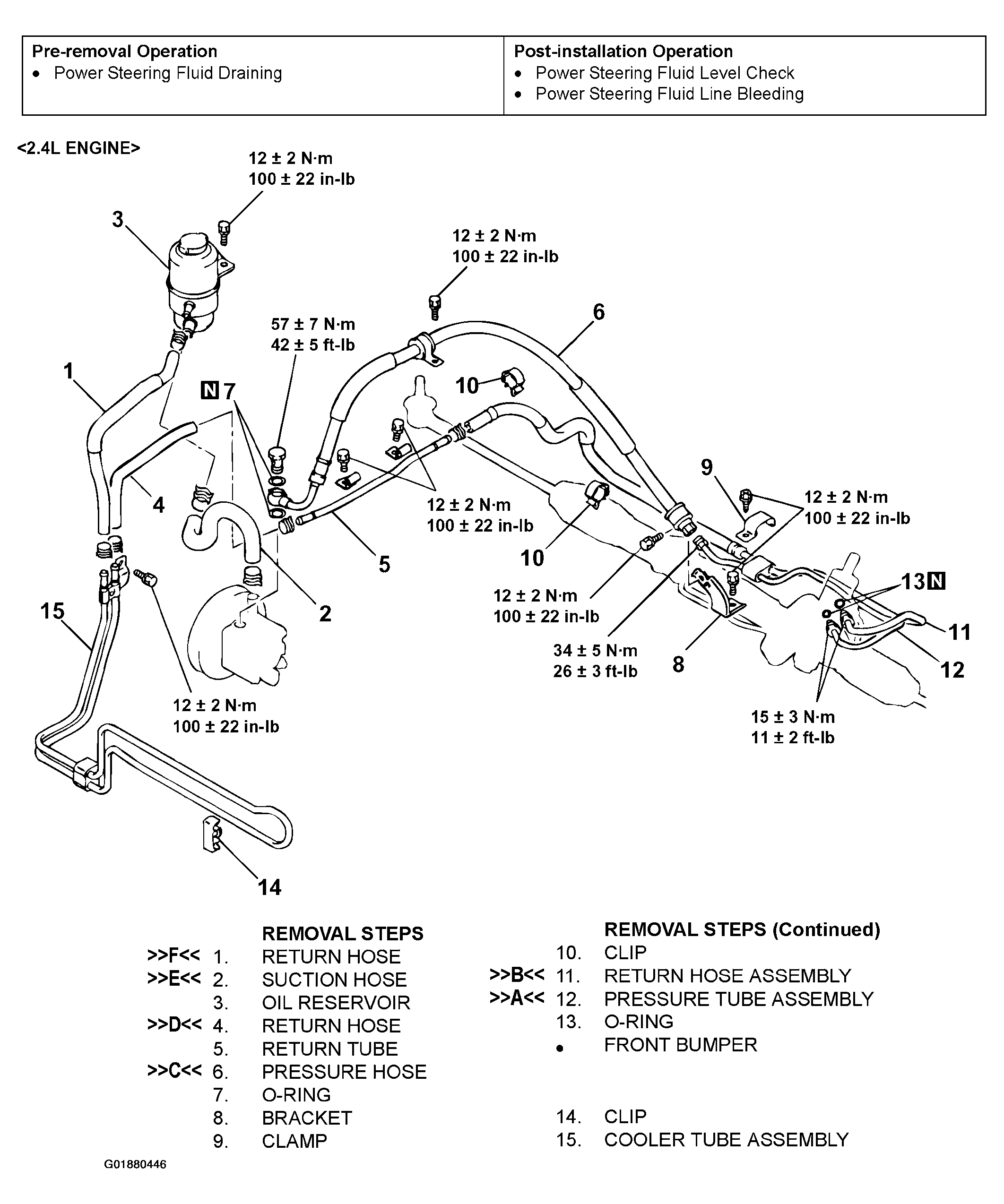

Fig 1: Identifying Removal Steps Of Power Steering Hoses (2.4L Engine)
G01880446Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

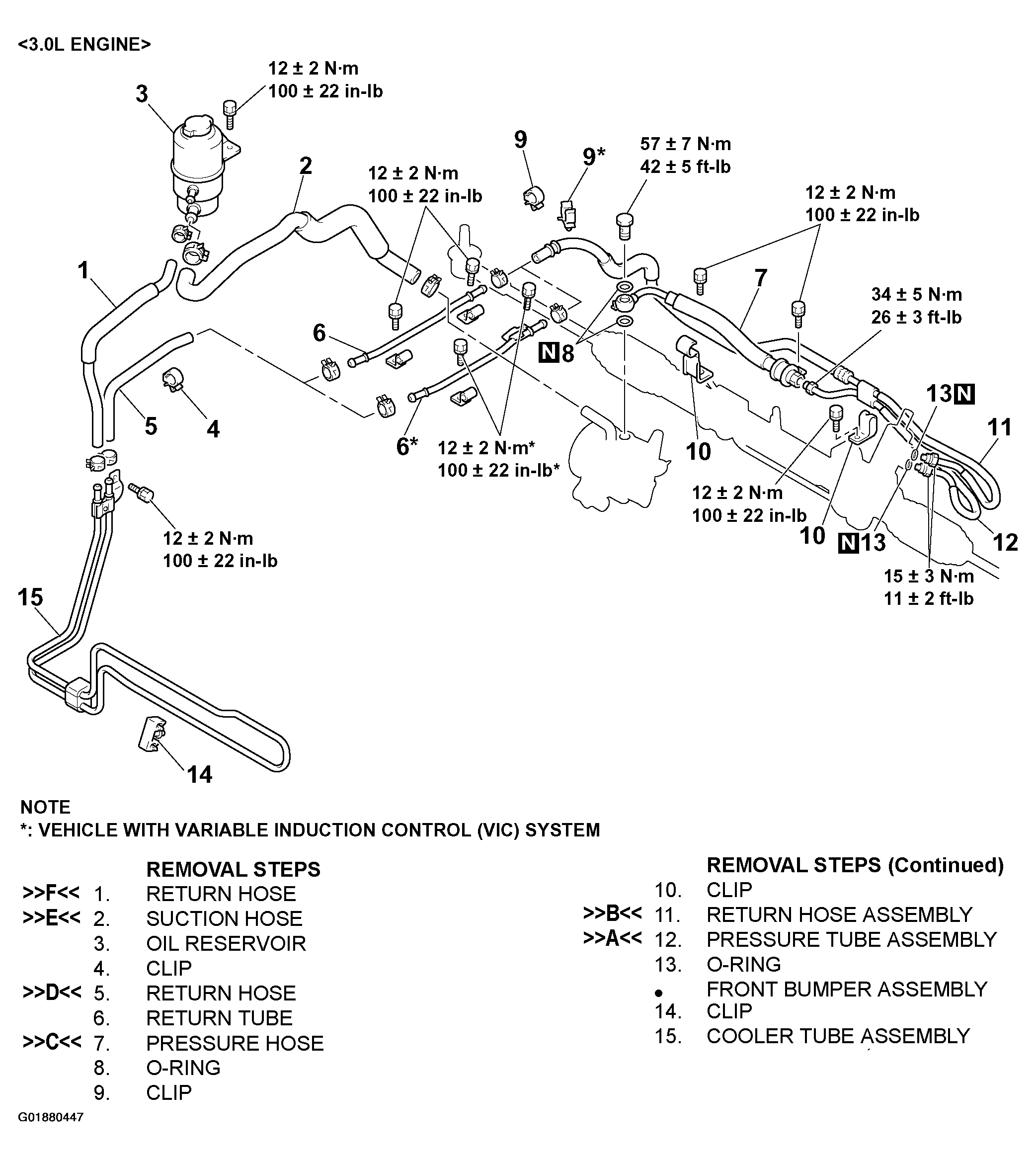

Fig 2: Identifying Removal Steps Of Power Steering Hoses (3.0L Engine)
G01880447Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
