Steering Angle Check

  1. Place the front wheel on a turning radius gauge and measure the steering angle.

    Standard value:

    Fig 1: Steering Angle Standard Value Reference Table
    G01880385Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    Fig 2: Checking Steering Angle
    G01880386Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. If the steering angle is not within the standard value, adjust the toe-in.

    Standard value: 0 +/- 3 mm (0 +/- 0.12 inch)

  3. Adjust the toe-in by undoing the clip and turning the left and right tie rod turnbuckles by the same amount (in opposite directions).
    NOTE: The toe will move out as the left turnbuckle is turned toward the front of the vehicle and the right turnbuckle is turned toward the rear of the vehicle.

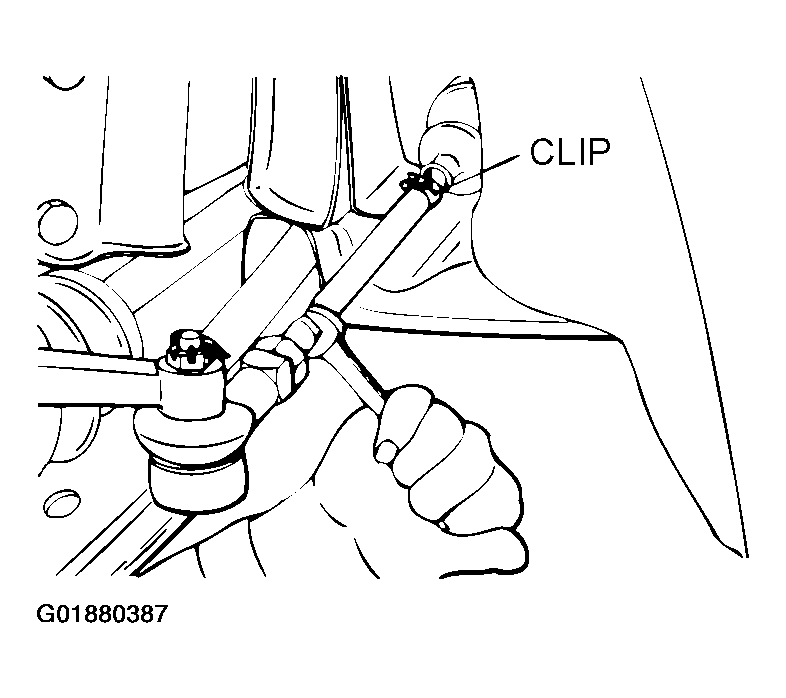

    Fig 3: Adjusting Toe-In
    G01880387Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
