Mitsubishi
>>
2003
>>
Eclipse RS, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
Ignition System
>>
Crankshaft Position Sensor
>>
Removal And Installation <2.4L Engine>
Removal And Installation <2.4L Engine>

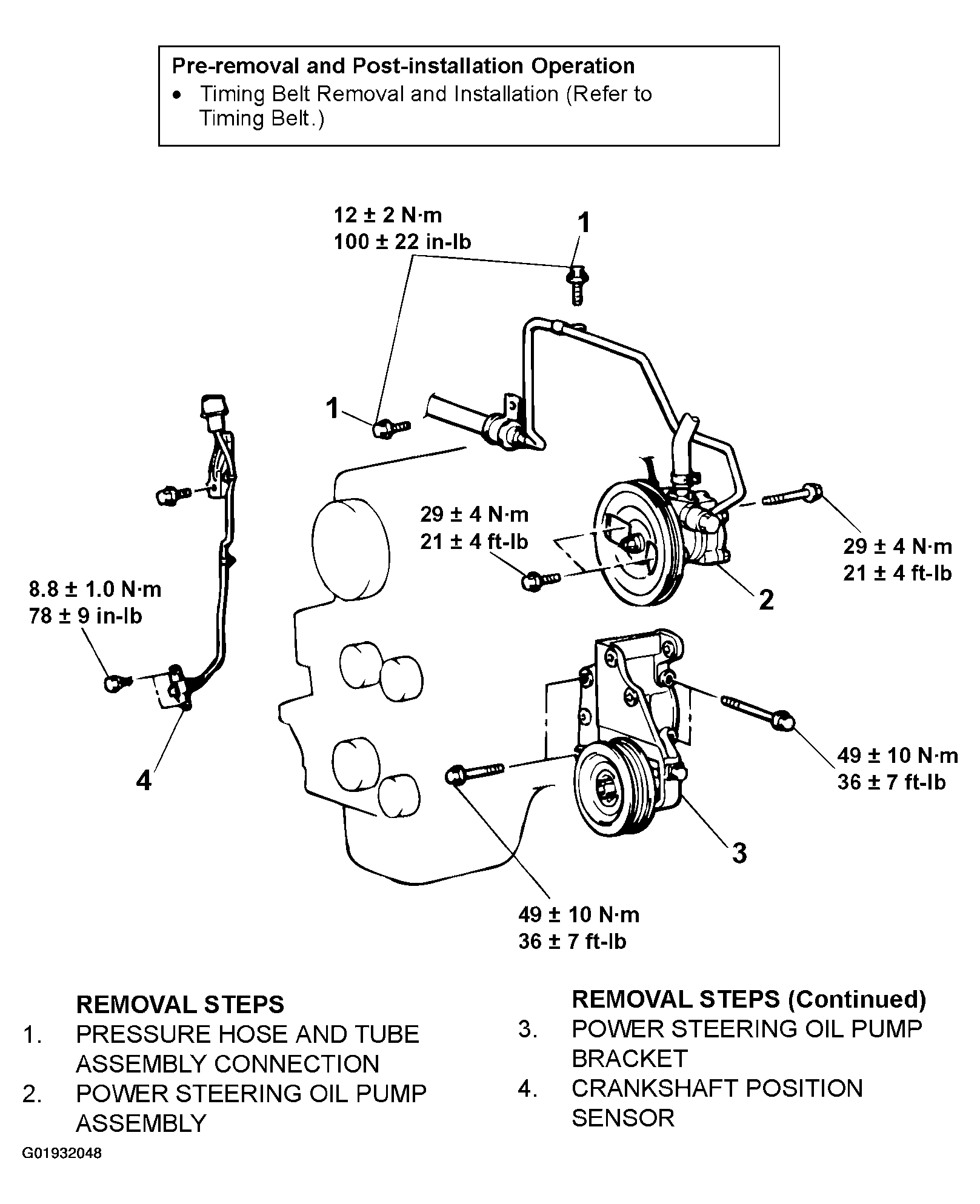

Fig 1: Removing Crankshaft Position Sensor And Torque Specifications - 2.4L Engine
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
