General Description
>>
Sectional View
Sectional View

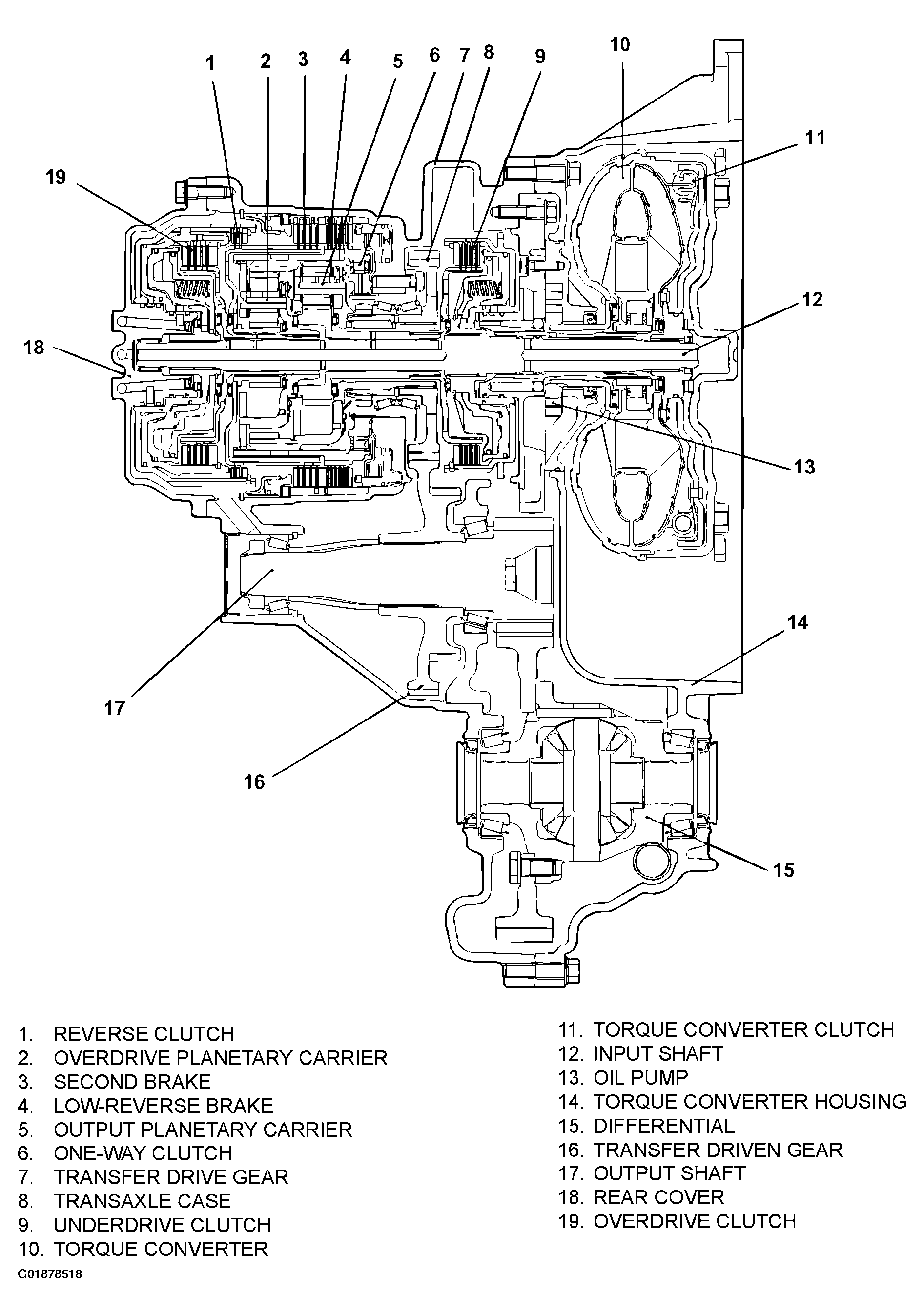

Fig 1: Sectional View Of Transaxle F4A42
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

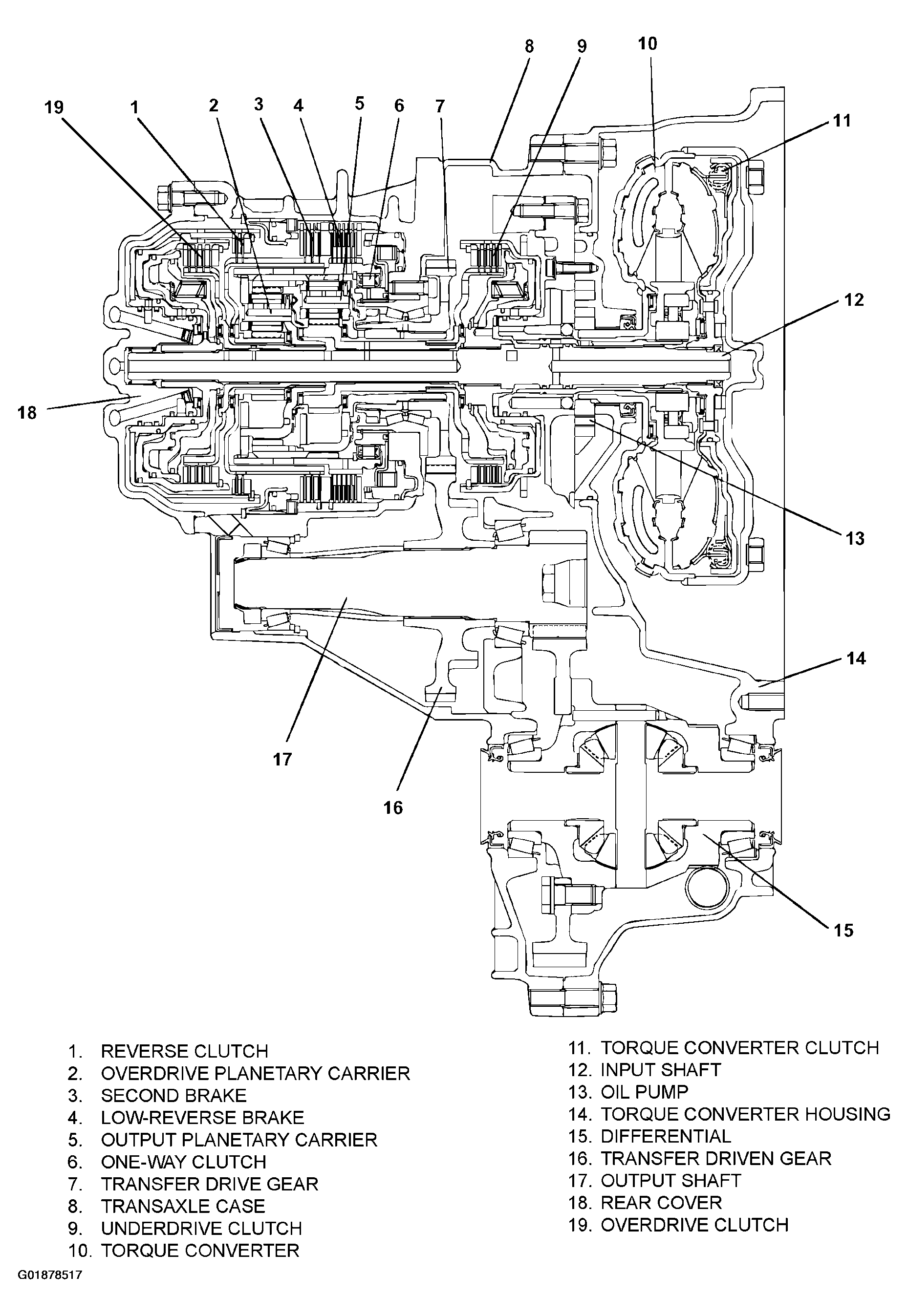

Fig 2: Sectional View Of Transaxle F4A51
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
