Home >> Mitsubishi >> 2003 >> Eclipse RS, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Diagnosis >> General Description >> Notes

Automatic Trans: Diagnosis: General Description: Notes

The automatic transaxle comes in two models: F4A42 and F4A51.

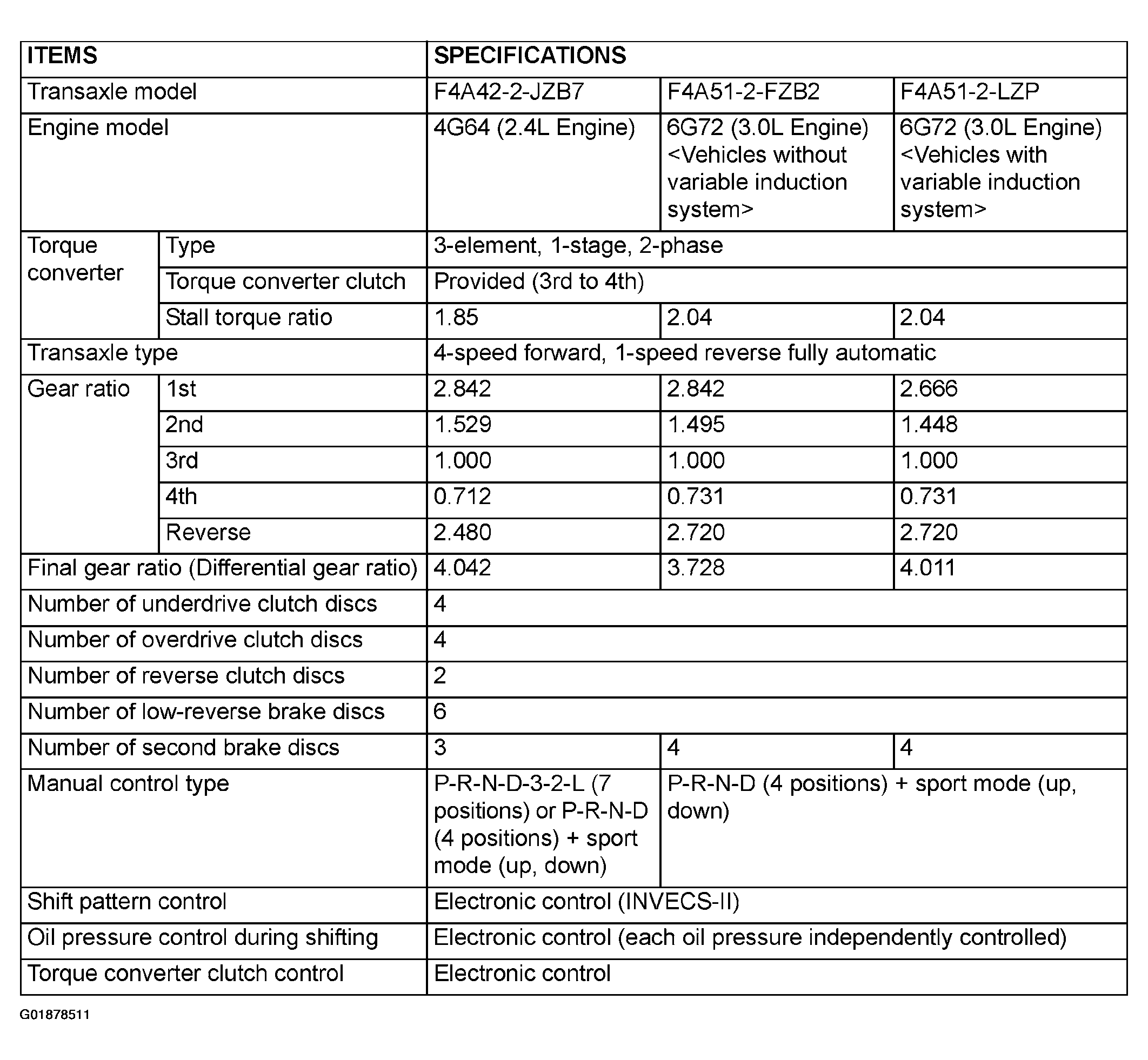

Fig 1: Automatic Transaxle Specifications Chart
G01878511Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
