< 2.4L Engine > Downshift Pattern

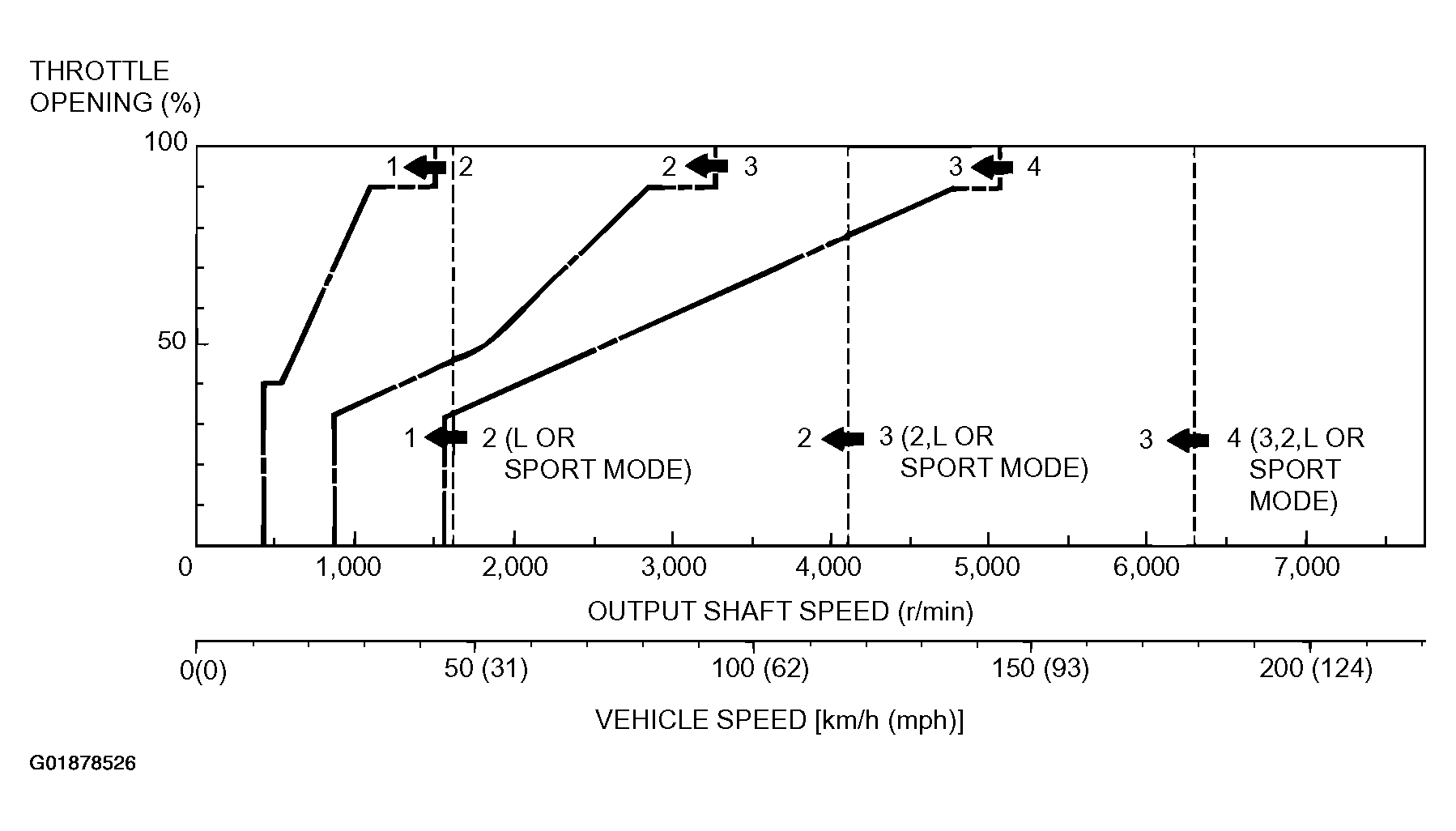

Fig 1: 2.4L Engine Shift Pattern Control (Downshift Pattern)
G01878526Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
