Eclipse, Eclipse Spyder & Galant

Remove the instrument panel side cover (driver's side). Disconnect the fuel pump relay (2). See Fig 1. Start the engine and let it run until it stops naturally. Turn the ignition off. Connect the fuel pump relay (2). Install the instrument panel side cover (driver's side).

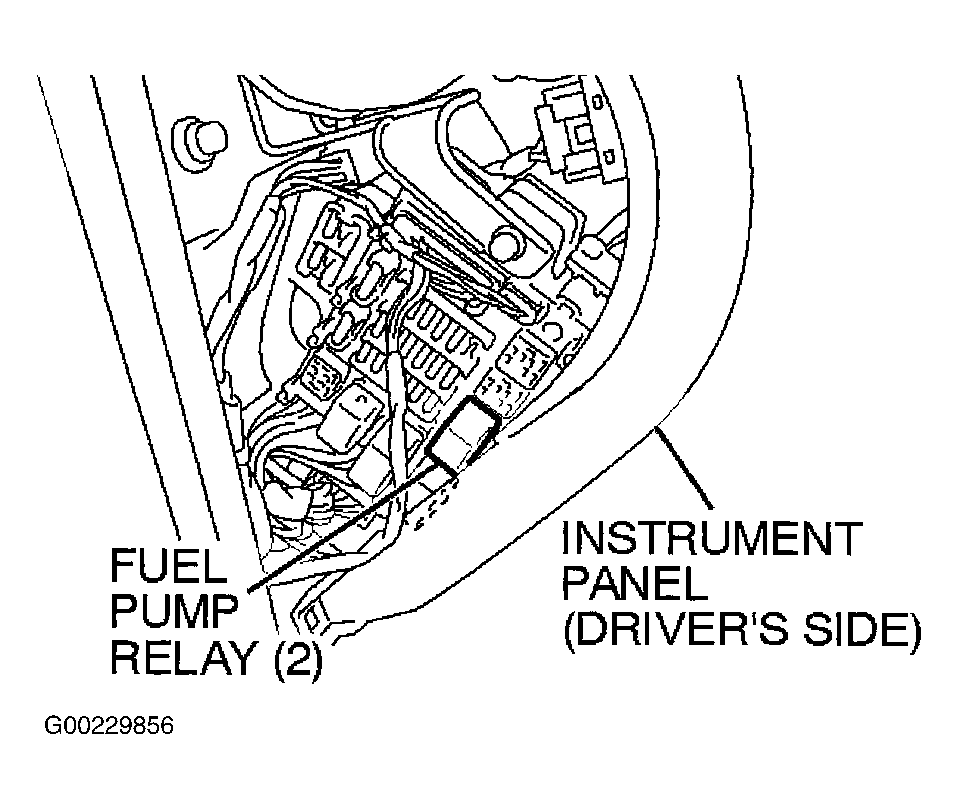

Fig 1: Fuel Pump Relay (Eclipse, Eclipse Spyder & Galant)
G00229856Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
