Construction Diagram

  1. When the ignition switch is turned to ON position, the ECM (M/T) or PCM (A/T) sends a requirement for the encrypted code to the immobilizer-ECU (at this time, the engine is remobilized).
  2. When the immobilizer-ECU receives the requirement from the ECM (M/T) or PCM (A/T), the immobilizer-ECU supplies power to the transponder inside the ignition key via the antenna. The energized transponder sends the encrypted code back to the immobilizer-ECU via the antenna.
  3. The immobilizer-ECU judges the encrypted code with its code logic in itself. If they are identical, the immobilizer-ECU sends the encrypted code to the ECM (M/T) or PCM (A/T).
  4. If the ECM (M/T) or PCM (A/T) cannot receive the encrypted code, the engine will be immobilized.

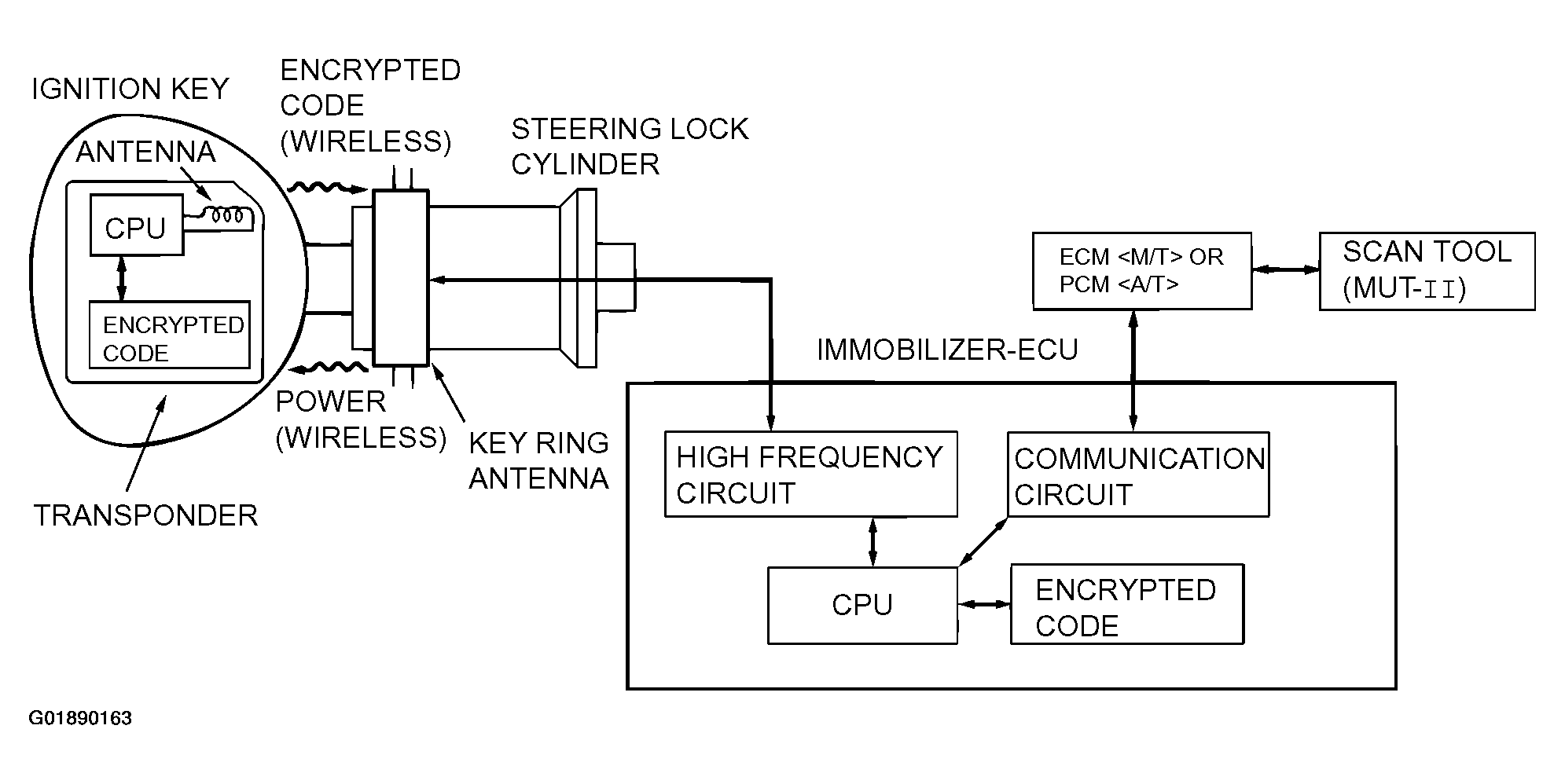

    Fig 1: Ignition Switch Circuit Diagram
    G01890163Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
