Check At Immobilizer-Ecu

TERMINAL VOLTAGE CHECK

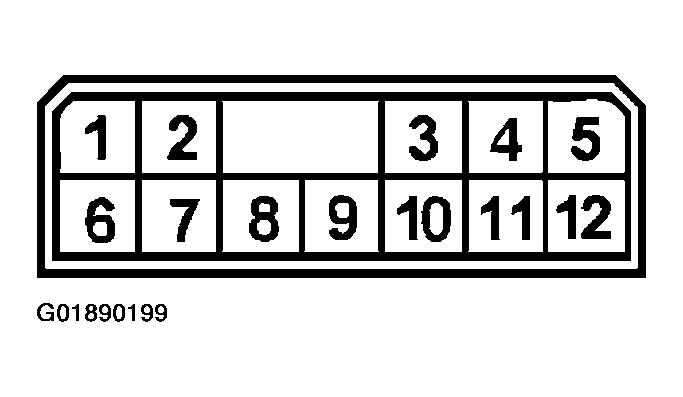

Fig 1: Identifying Immobilizer-ECU Connector Terminals
G01890199Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

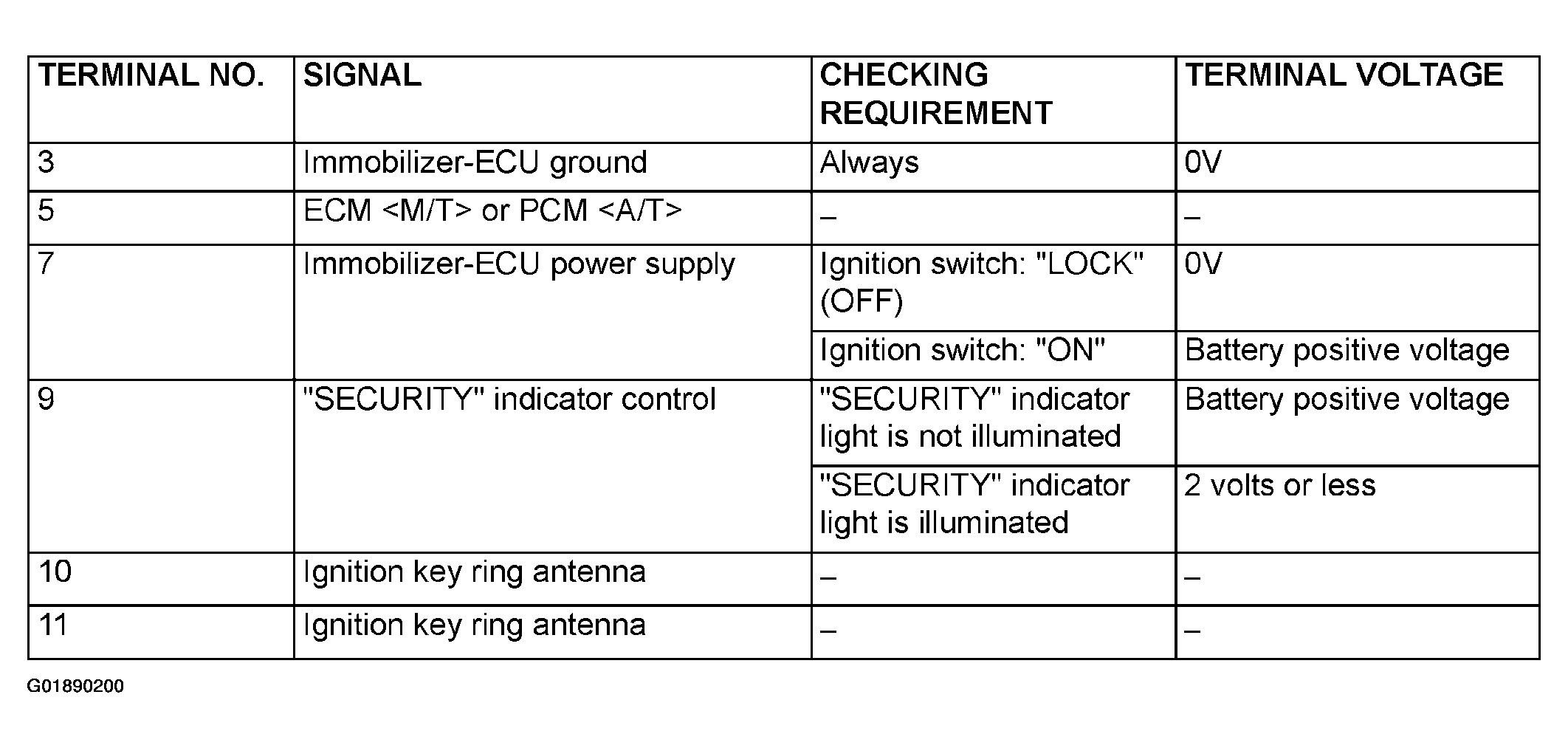

Fig 2: Immobilizer-ECU Connector Terminal Voltage Reference Table
G01890200Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
