Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

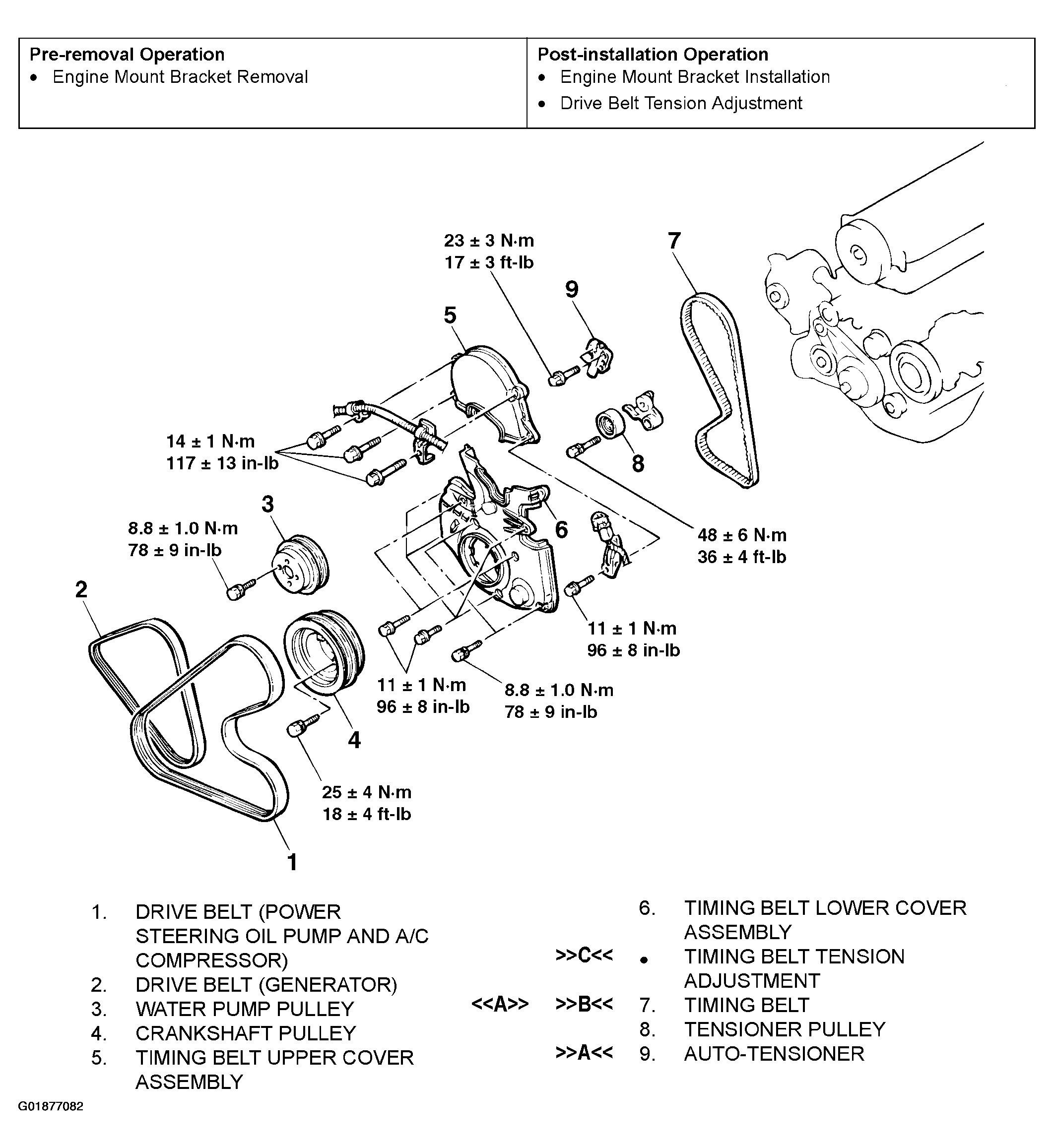

Fig 1: Removing & Installing Timing Belt
G01877082Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
