Section 7 (On-Vehicle Service - 2.4L Engine)
>>
Special Tools
Special Tools
WARNING:
This page is about a different variant/trim than selected.

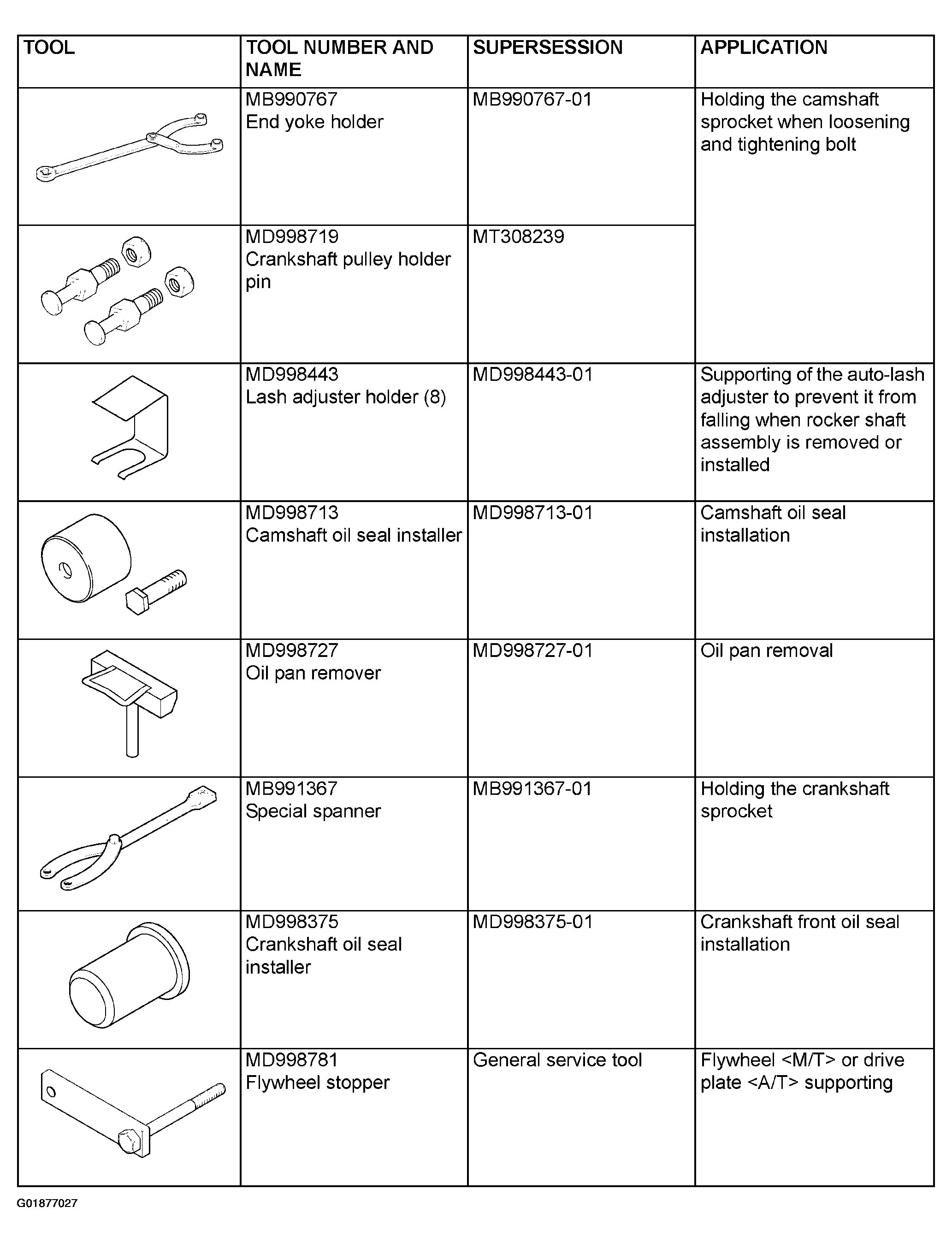

Fig 1: Identifying Special Tools (1 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

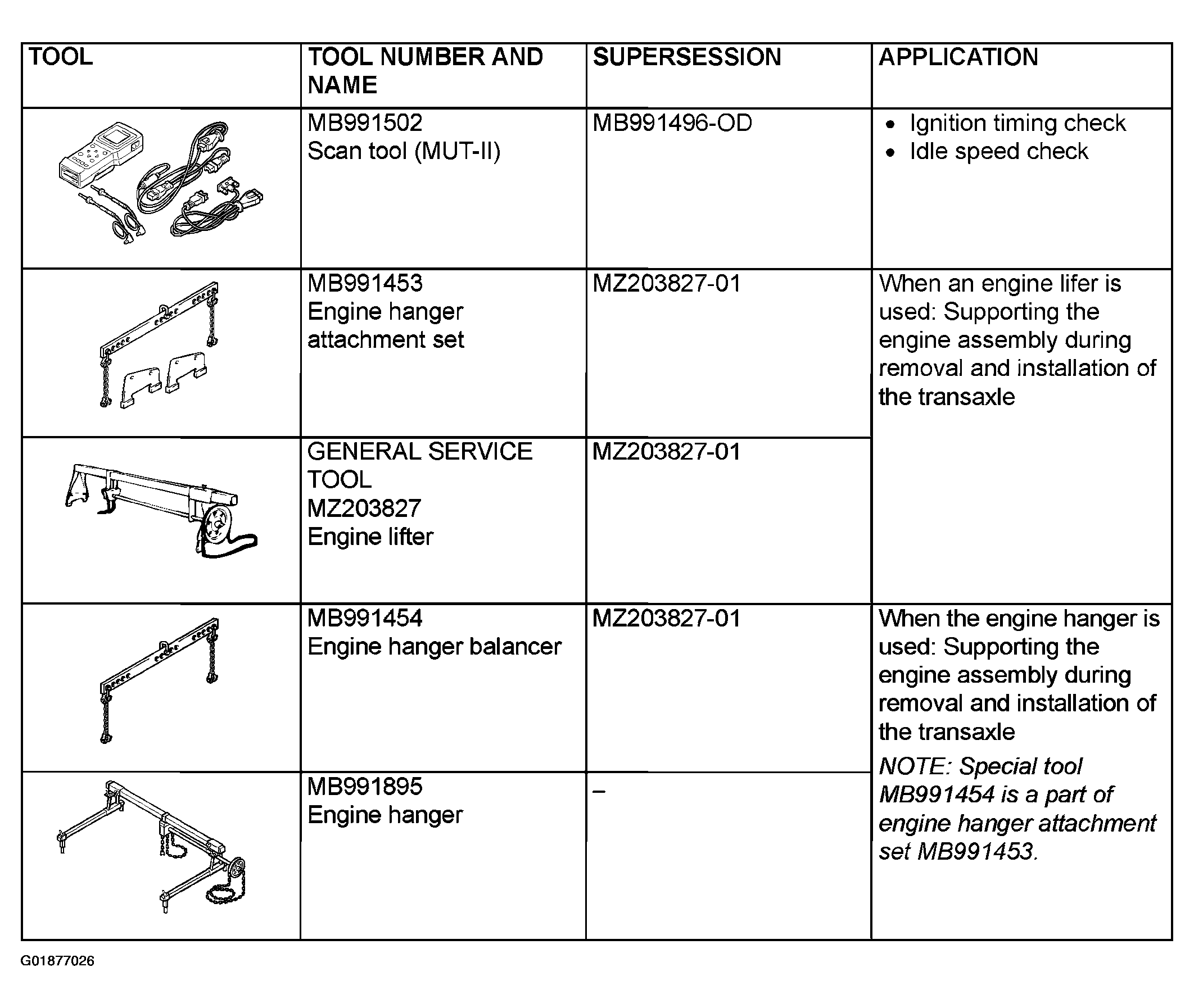

Fig 2: Identifying Special Tools (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

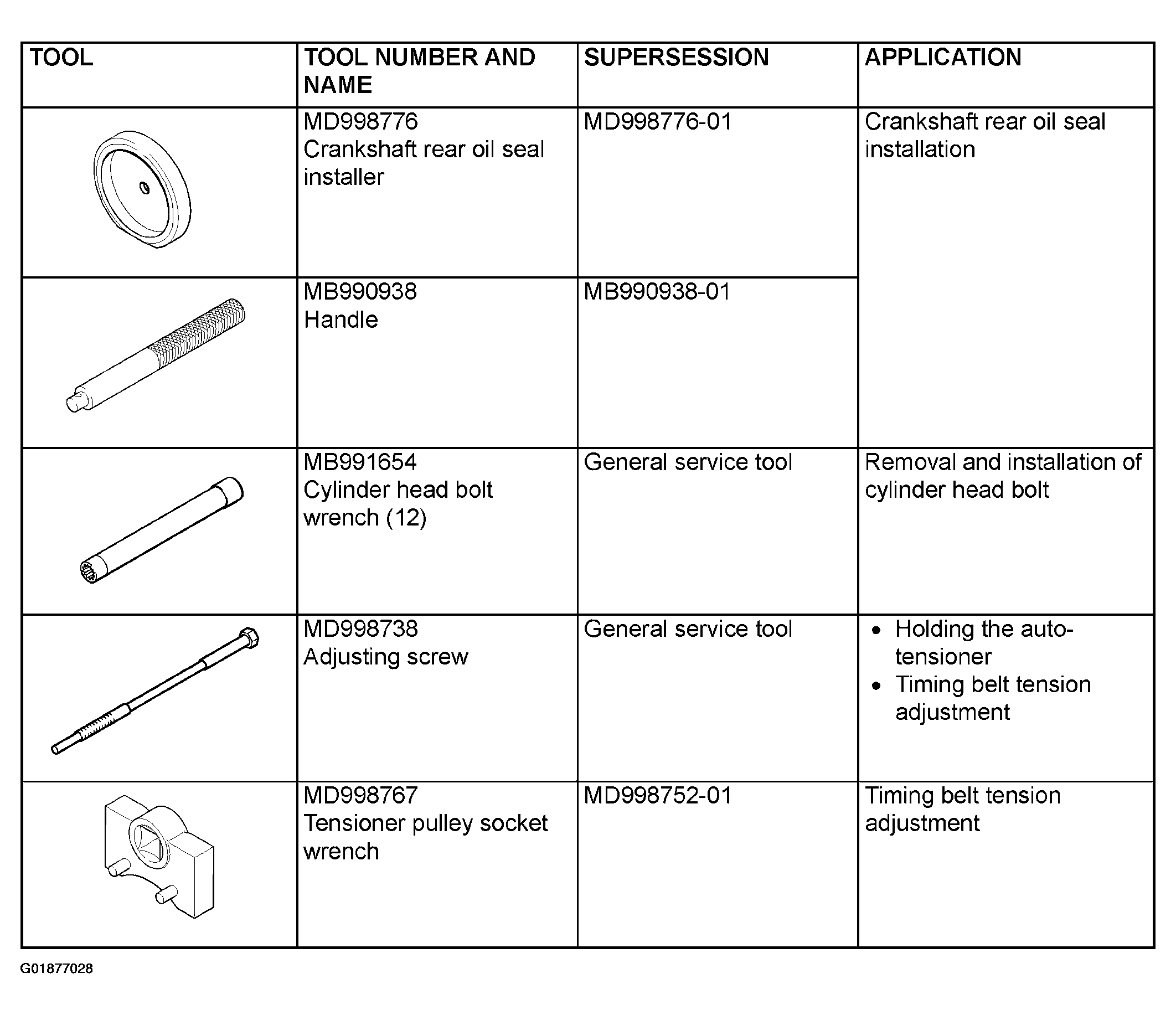

Fig 3: Identifying Special Tools (3 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
