Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

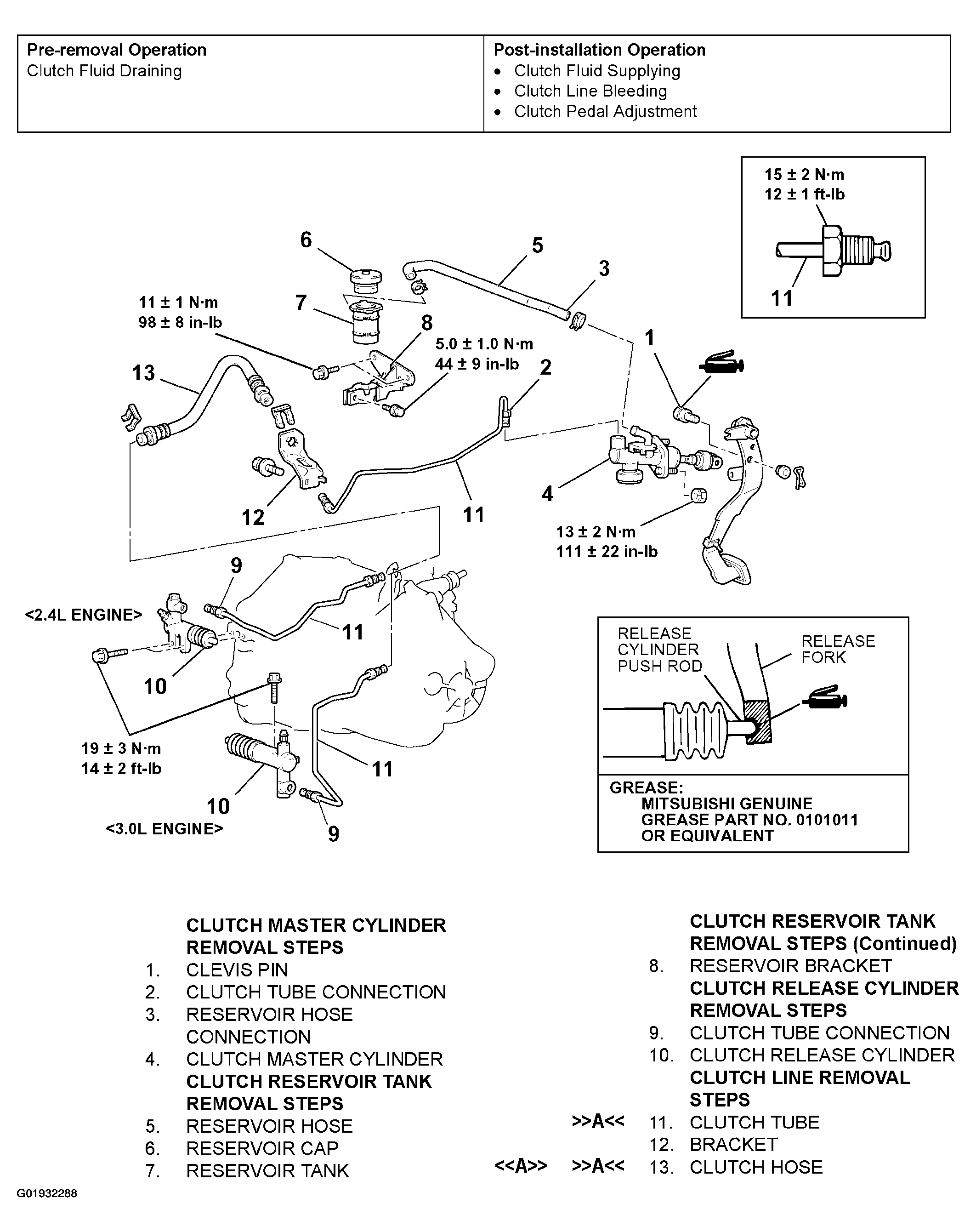

Fig 1: Exploded View Of Clutch Control And Torque Specifications
G01932288Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
