Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

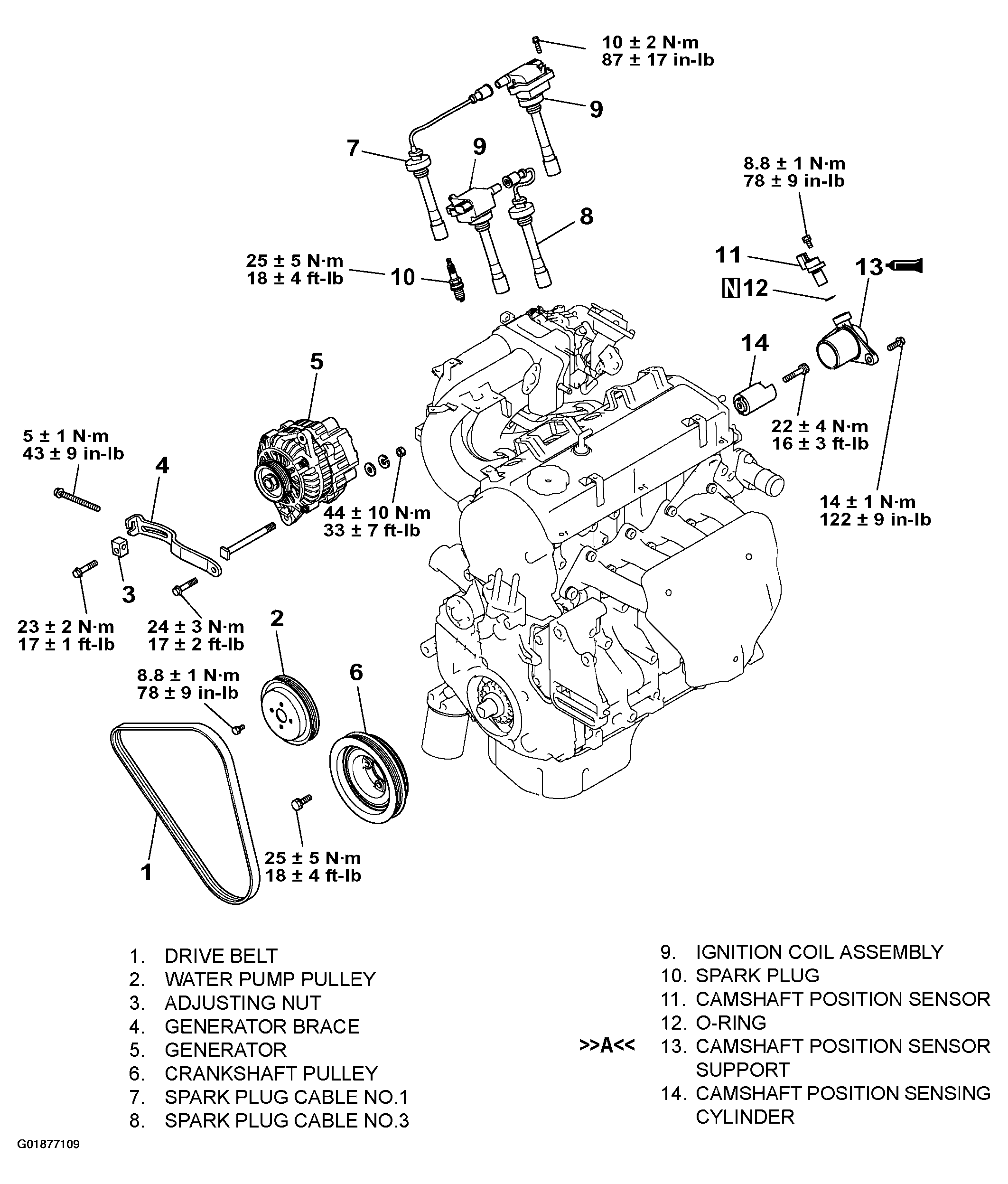

Fig 1: Exploded View Of Generator And Ignition System With Torque Specification
G01877109Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
