Home >> Mitsubishi >> 2003 >> Eclipse GTS, Automatic >> Repair and Diagnosis >> Engine Mechanical >> Timing Belt >> On-Vehicle Service - 3.0L Engine >> Special Tools

Special Tools

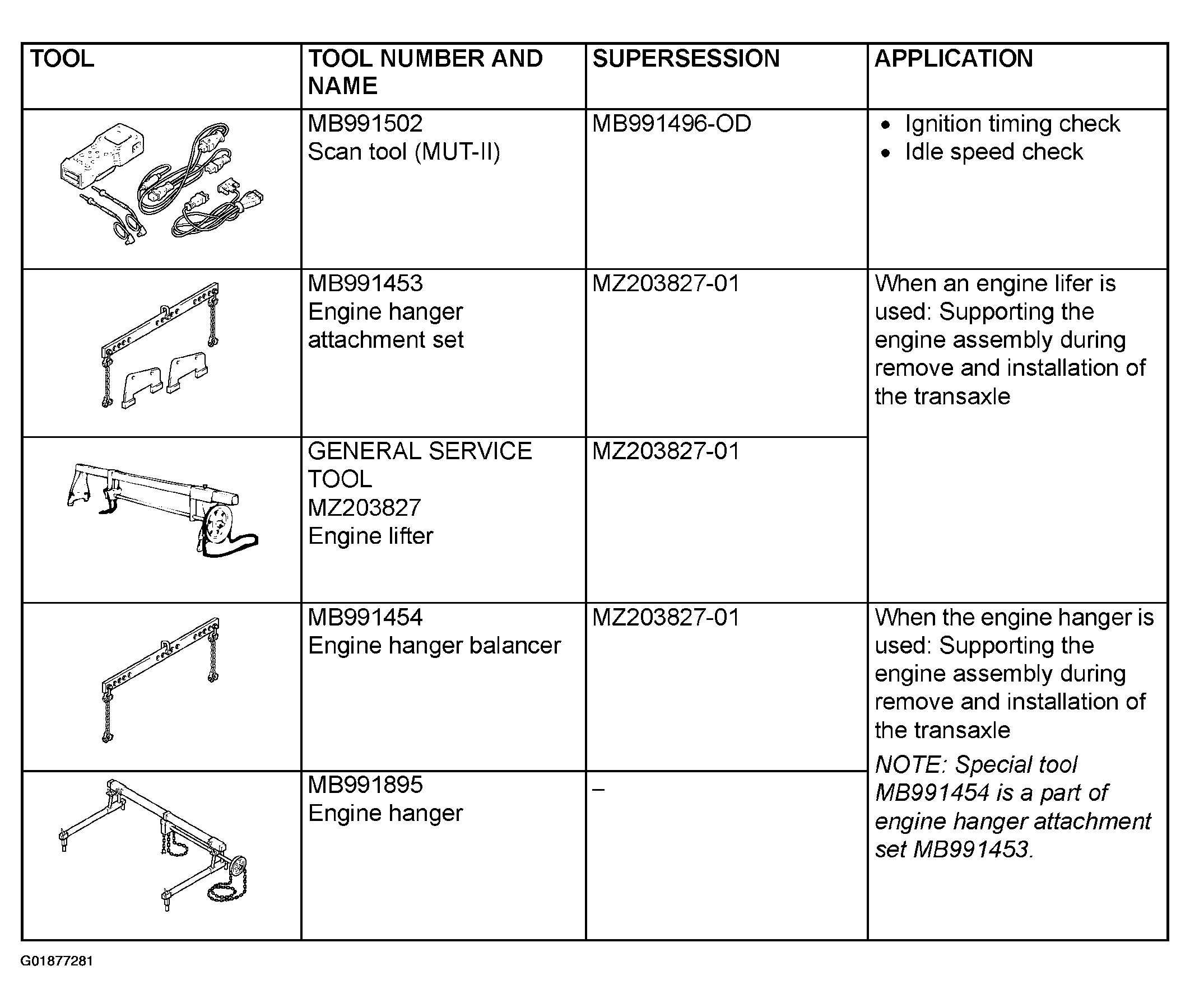

Fig 1: Identifying Special Tools (1 Of 3)
G01877281Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

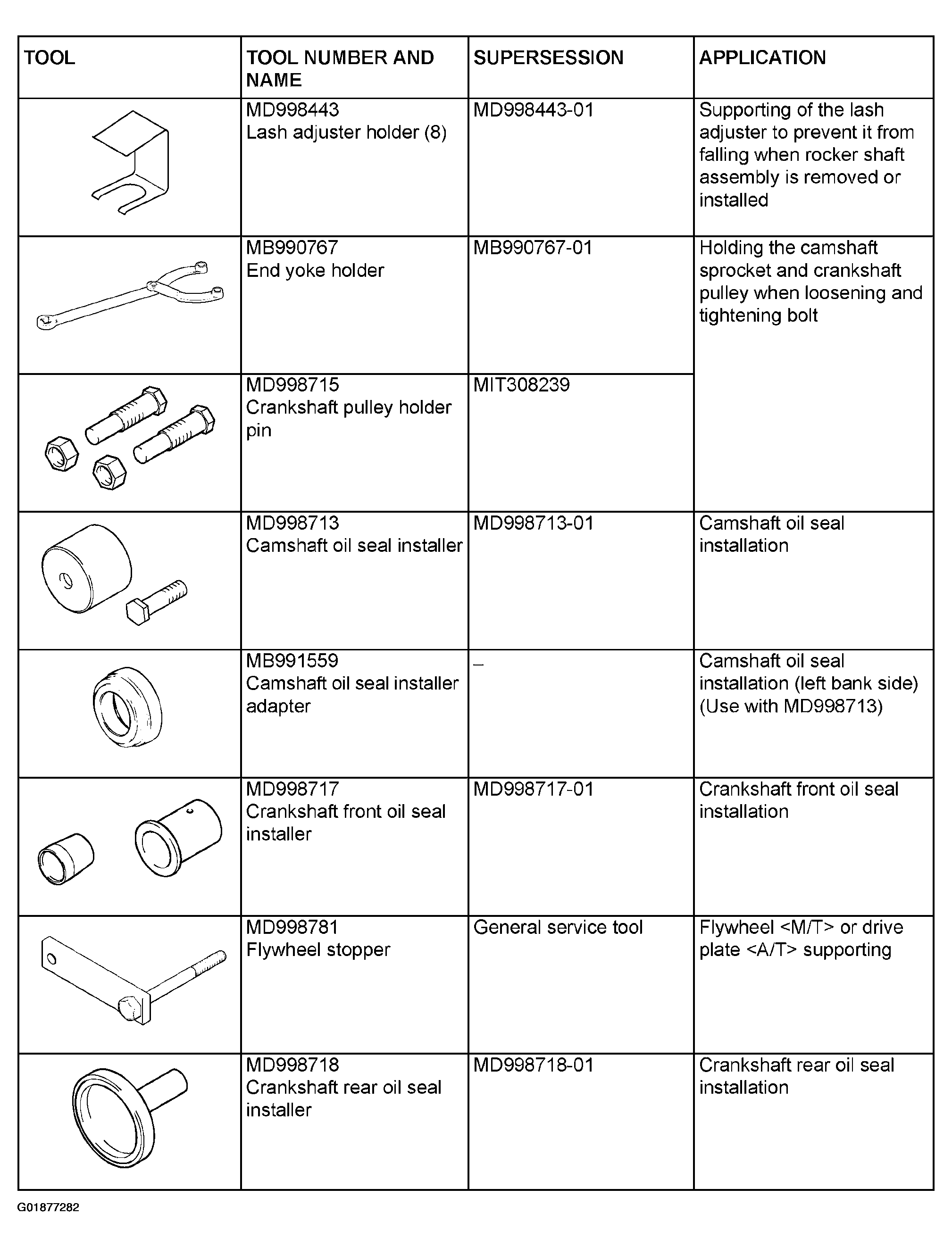

Fig 2: Identifying Special Tools (2 Of 3)
G01877282Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

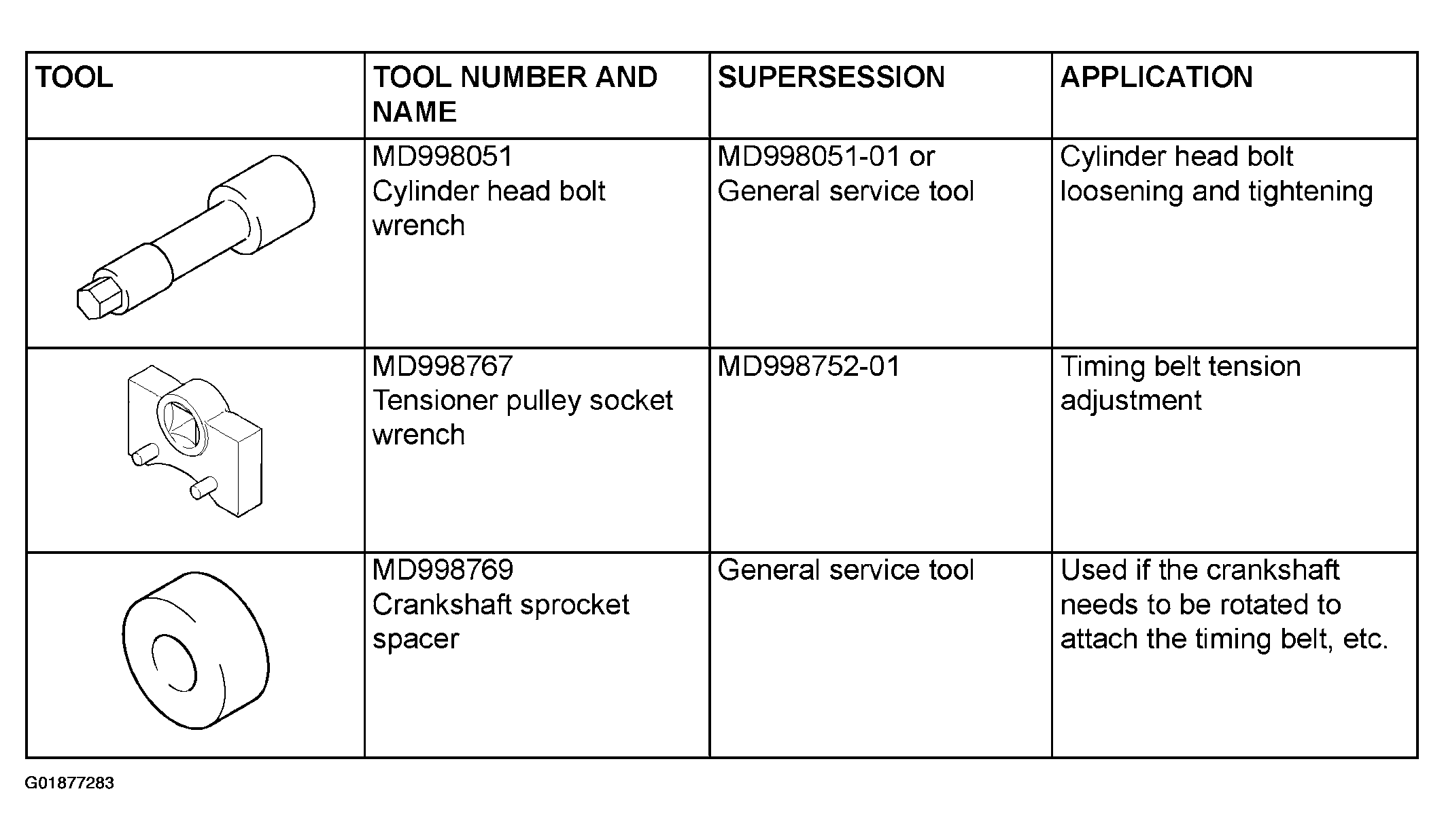

Fig 3: Identifying Special Tools (3 Of 3)
G01877283Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
