Removal And Installation

CAUTION:
  • *: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in the unladen condition.
  • For vehicles with SRS, before removal of steering gear box, refer to AIR BAG RESTRAINT SYSTEMS article, center the front wheels and remove the ignition key. Failure to do so may damage the SRS clock spring and render the SRS system inoperative, risking serious injury.

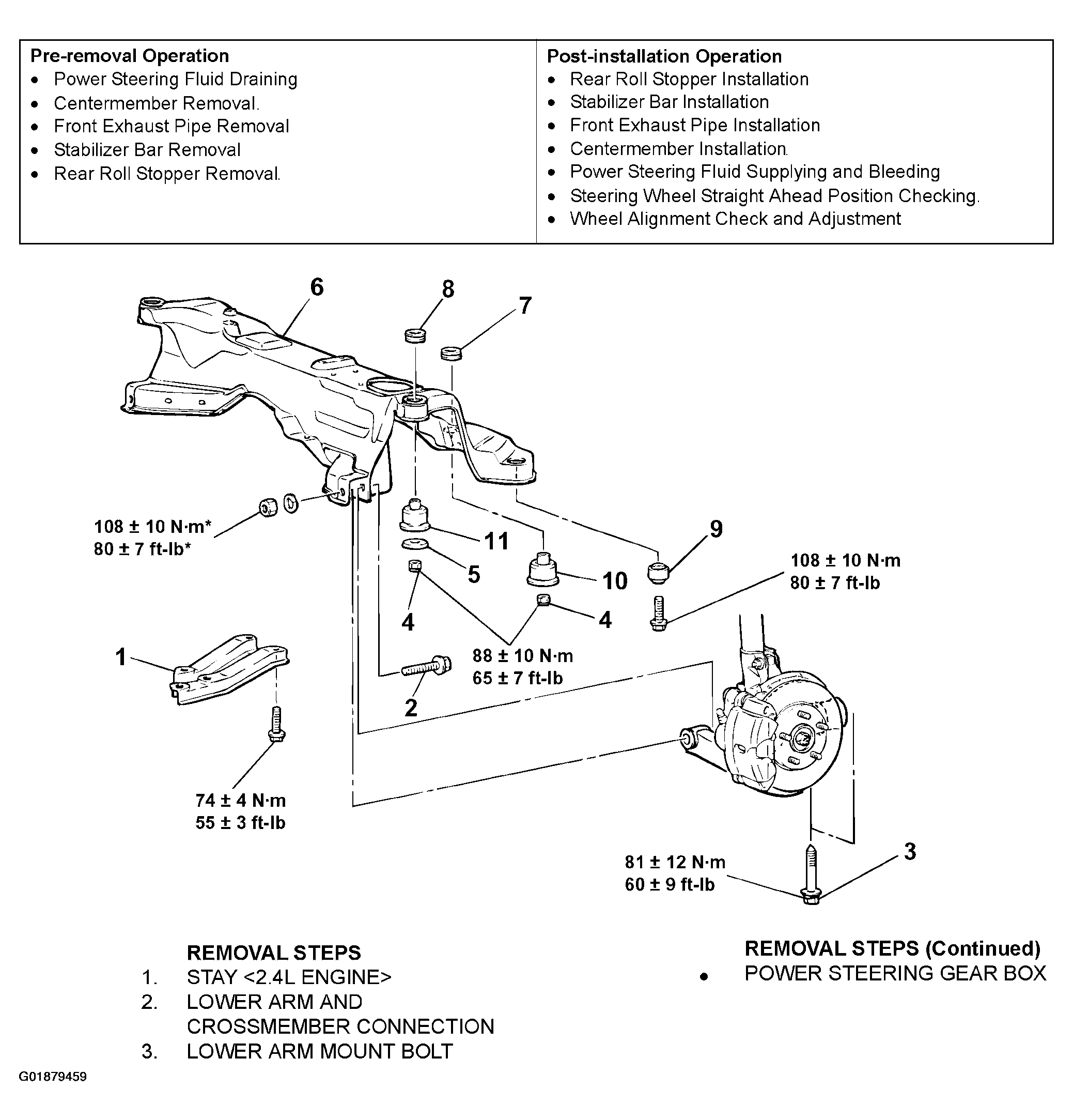

    Fig 1: Identifying Removal Steps Of Crossmember
    G01879459Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
