Removal And Installation: Notes

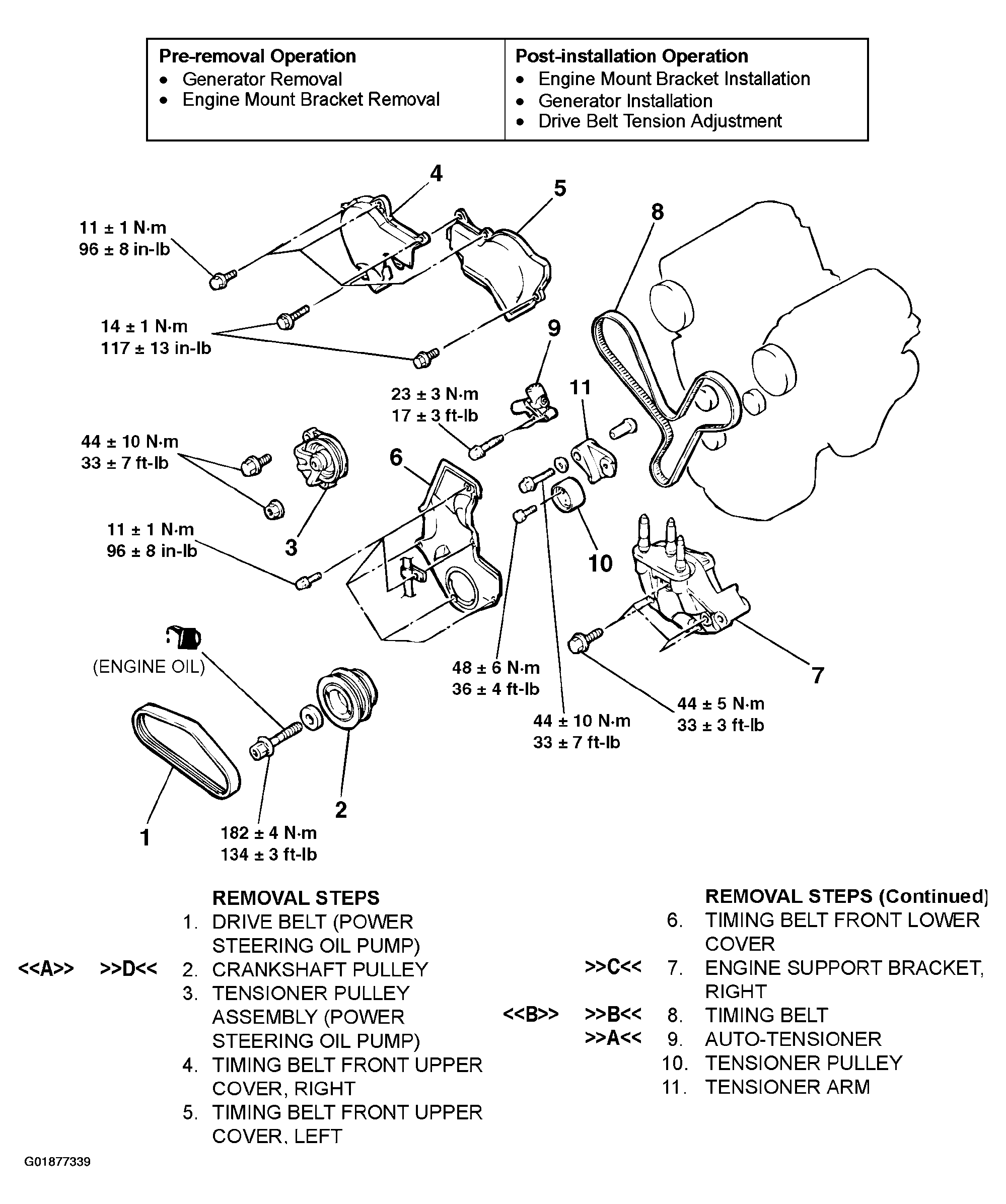

Fig 1: Removing/Installing Exploded View Of Timing Belt Components With Torque Specifications
G01877339Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
