Removal And Installation: Notes

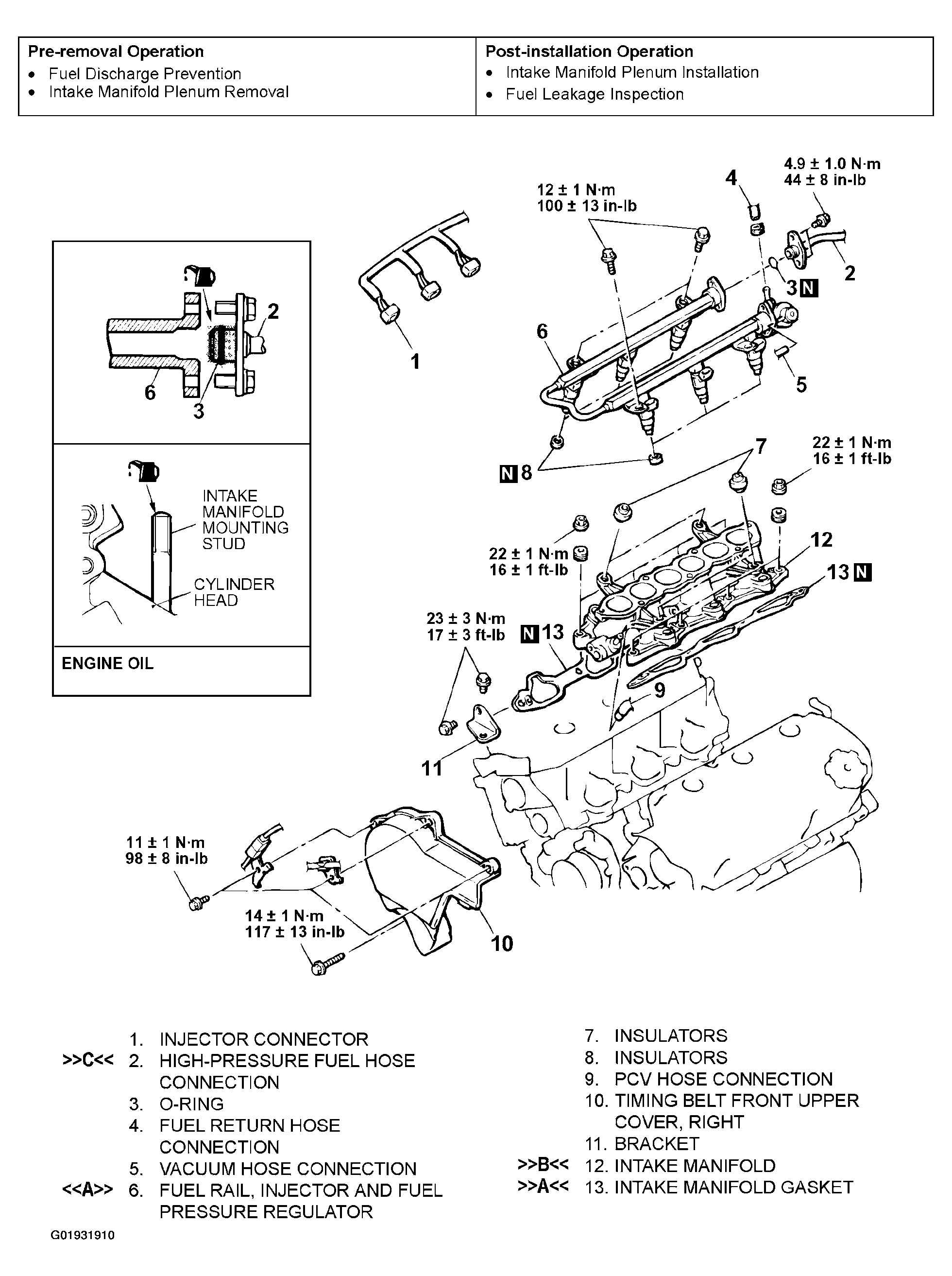

Fig 1: Intake Manifold Removal Procedure And Torque Specifications - 3.0L
G01931910Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
