Passenger Compartment

For fuse locations and values, see

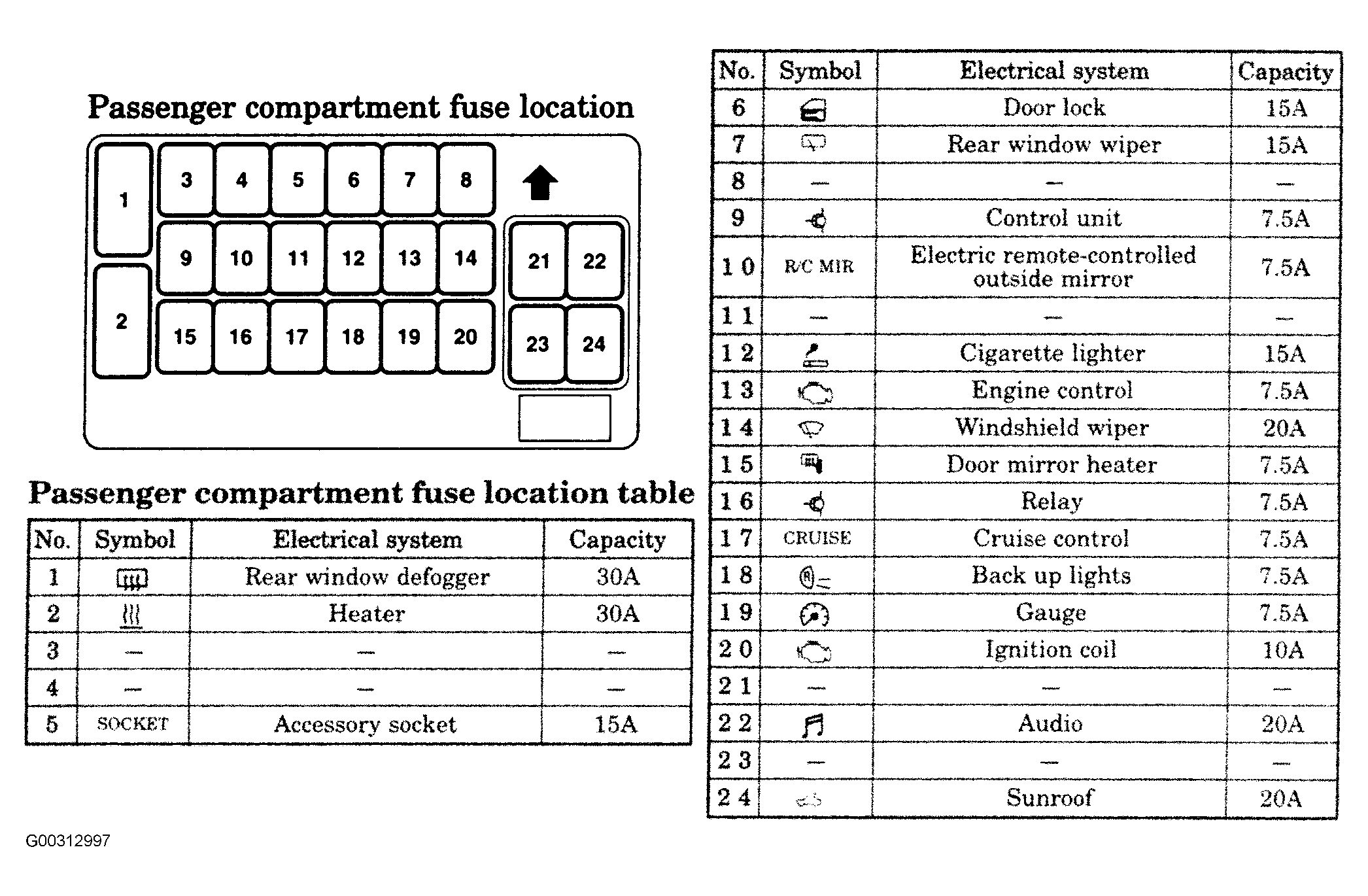

Fig 1: Identifying Passenger Compartment Fuses

G00312997

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
