Quarter Window Glass And Regulator Assembly: Inspection

QUARTER WINDOW REGULATOR MOTOR CHECK

Check that motor runs smoothly when the battery is connected directly to the motor terminals.

Furthermore, check that the motor operates in reverse when the terminal connections are switched.

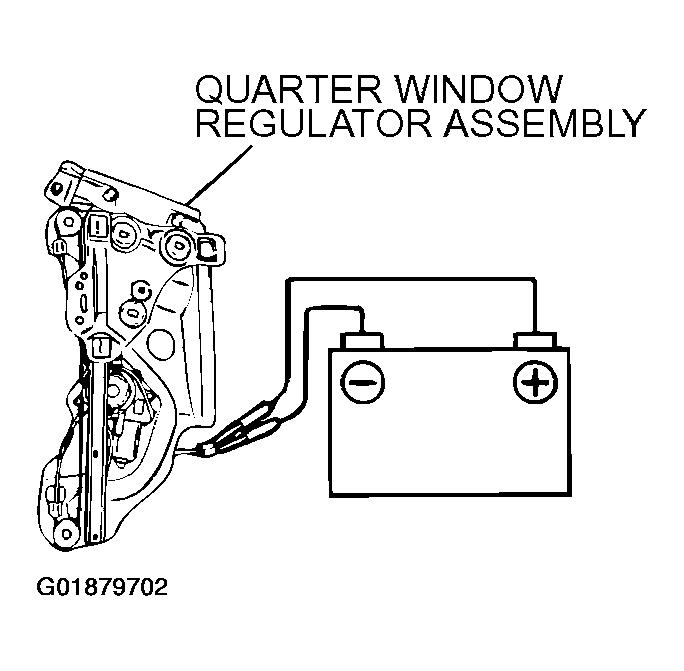

Fig 1: Checking Quarter Window Regulator Motor
G01879702Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
