Removal And Installation: Notes

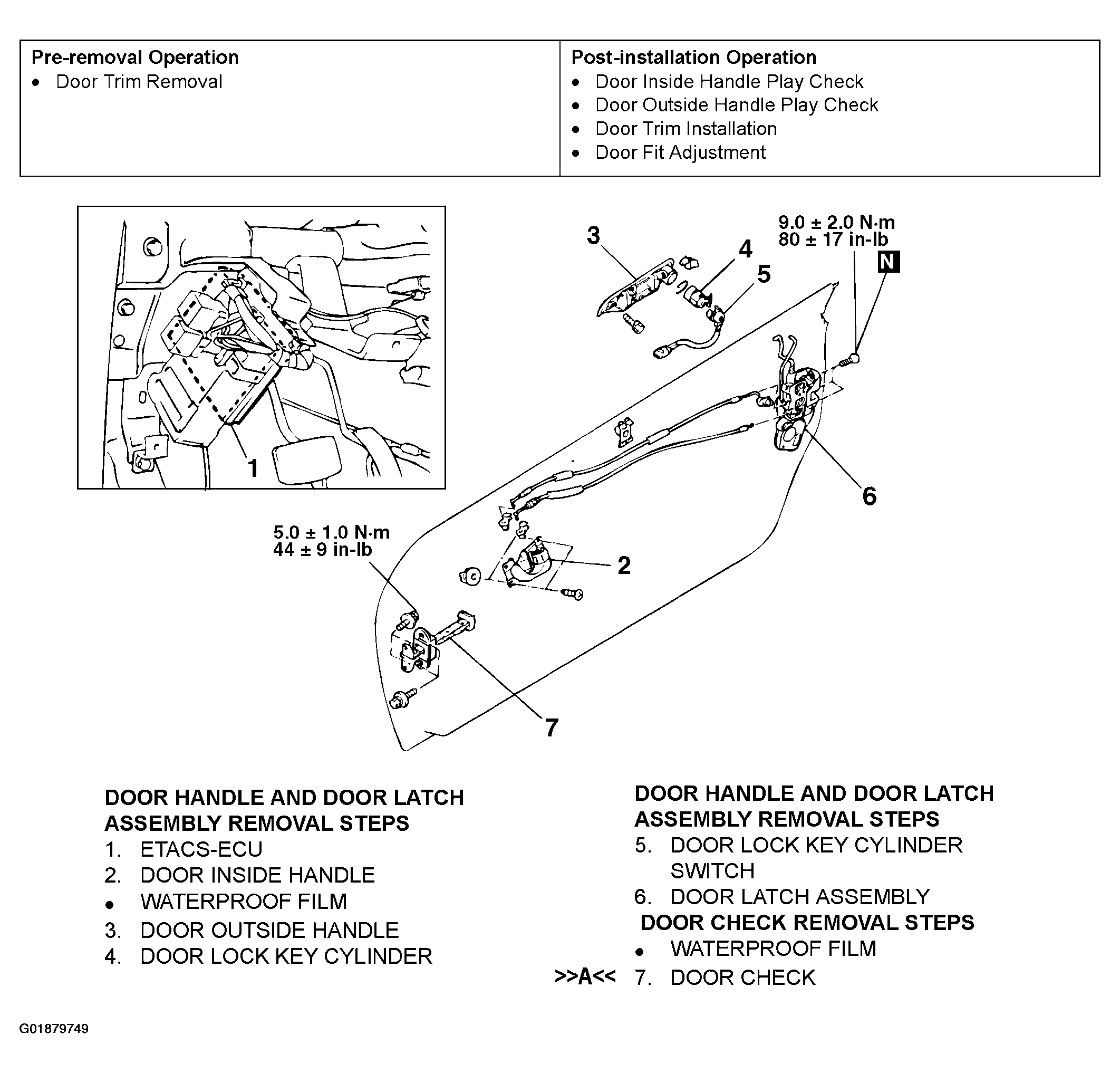

Fig 1: Identifying Removal Steps Of Door Handle And Latch Assembly

G01879749

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
