Home >> Mitsubishi >> 2003 >> Eclipse GTS, Automatic >> Repair and Diagnosis >> Body & Frame >> Seats >> Front Seat >> Front Seat Assembly >> Removal & Installation >> Notes

Removal & Installation: Notes

WARNING: Before removing a seat equipped with a side air bag module, refer to AIR BAG SAFETY PRECAUTIONS . .

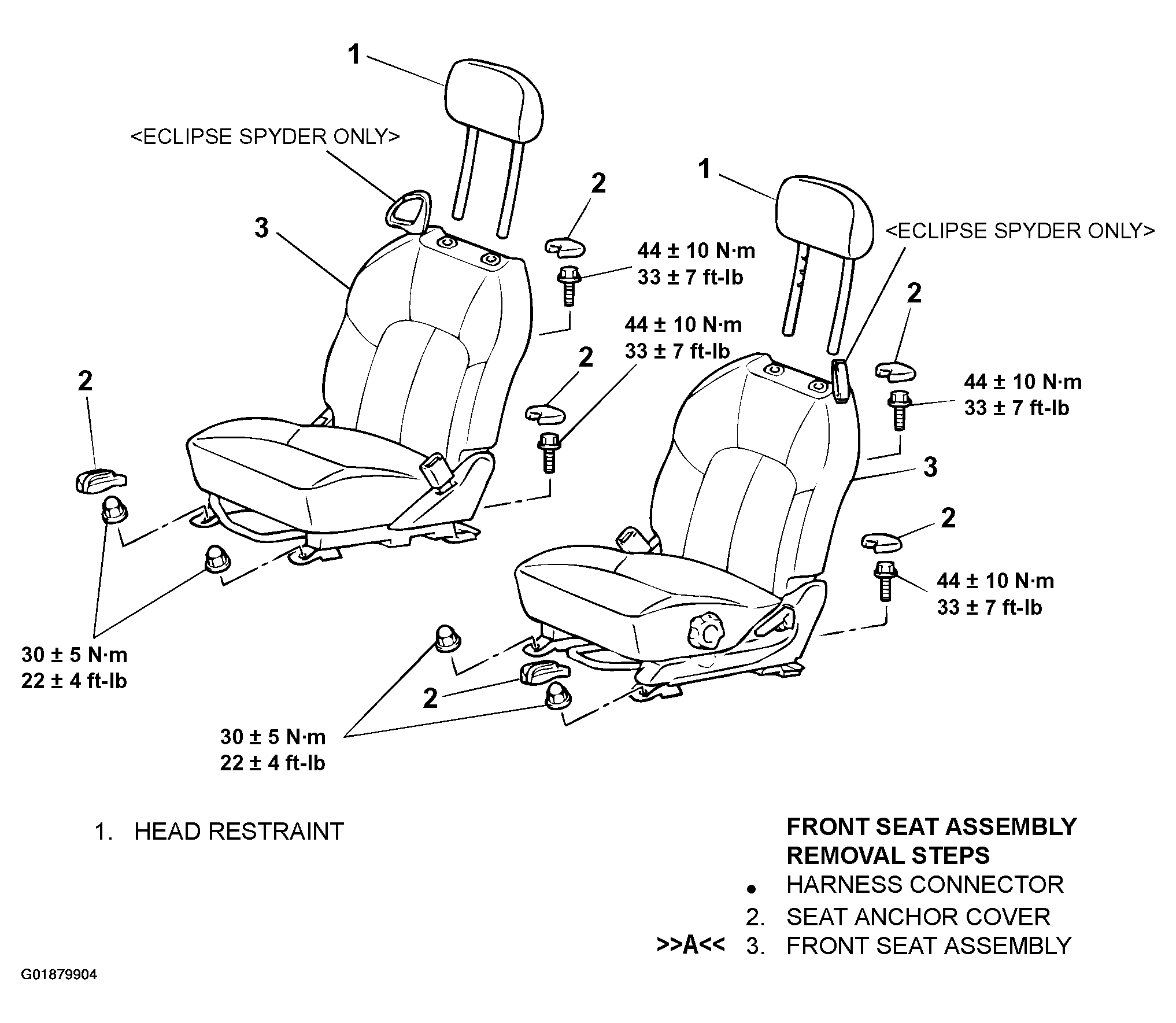

Fig 1: Front Seat Assembly Replacement Components With Torque Specifications
G01879904Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
