Power Seat Switch Continuity Check

Fig 1: Identifying Power Seat Switch Terminals
G01879908Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

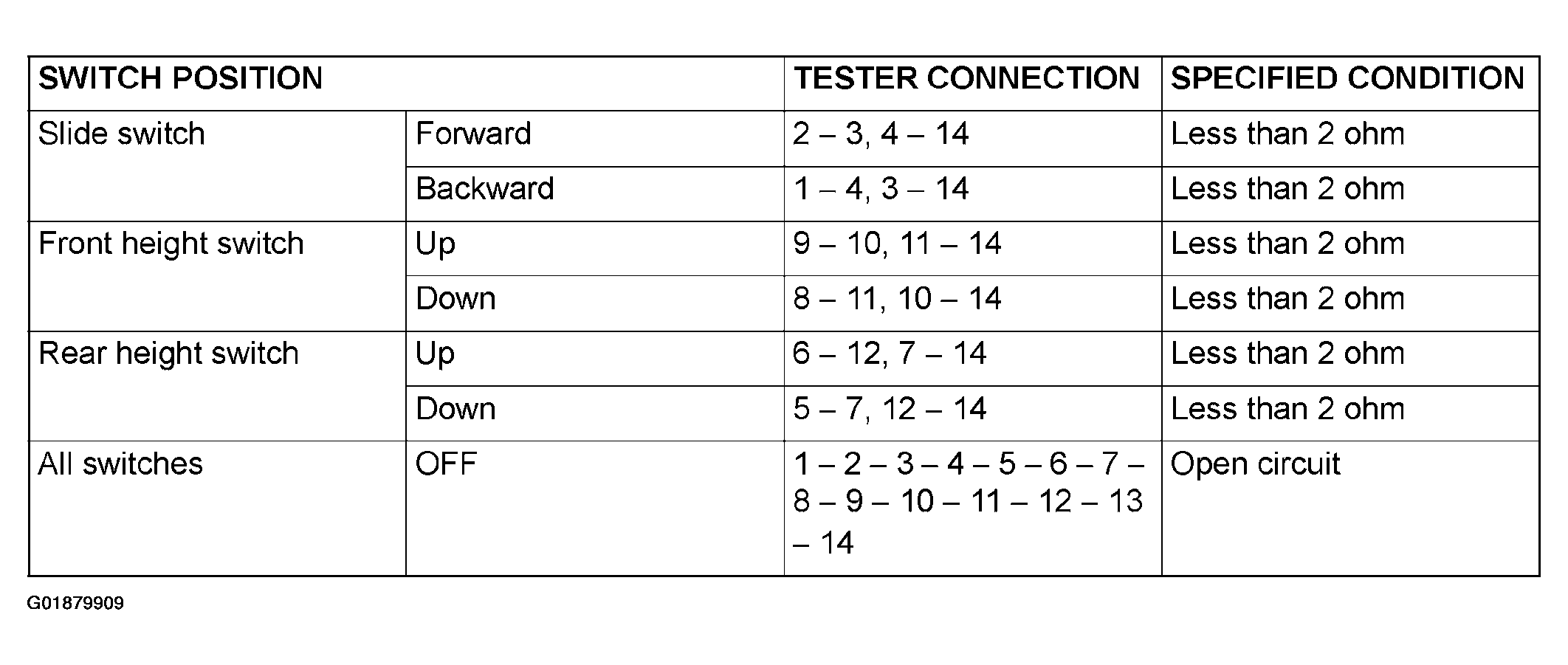

Fig 2: Power Seat Switch Continuity Reference Table
G01879909Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
