>>E<< Synchronizer Ring Installation
WARNING: This page is about a different variant/trim than selected.
CAUTION:
There are 3rd speed and 4th speed synchronizer rings, if the wrong one is installed it will effect the shift feeling.

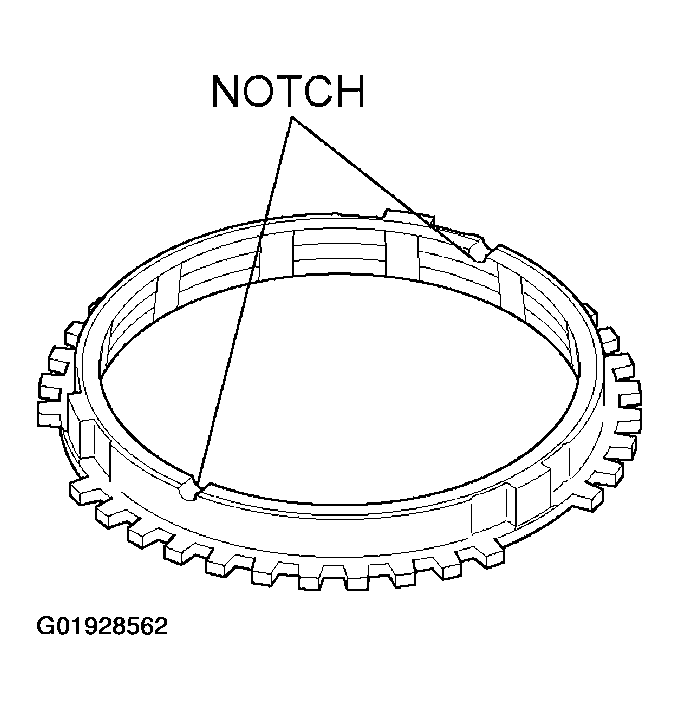

- Ascertain whether or not there are identification notches on the synchronizer ring.
Two notches: 3rd speed synchronizer ring
No notches: 4th speed synchronizer ring
- Install the synchronizer ring so that it does not angle to the cone of the gear.
