Mitsubishi
>>
2003
>>
Eclipse GS, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Ignition System
>>
Ignition Coil
>>
Removal And Installation <2.4L Engine>
Removal And Installation <2.4L Engine>

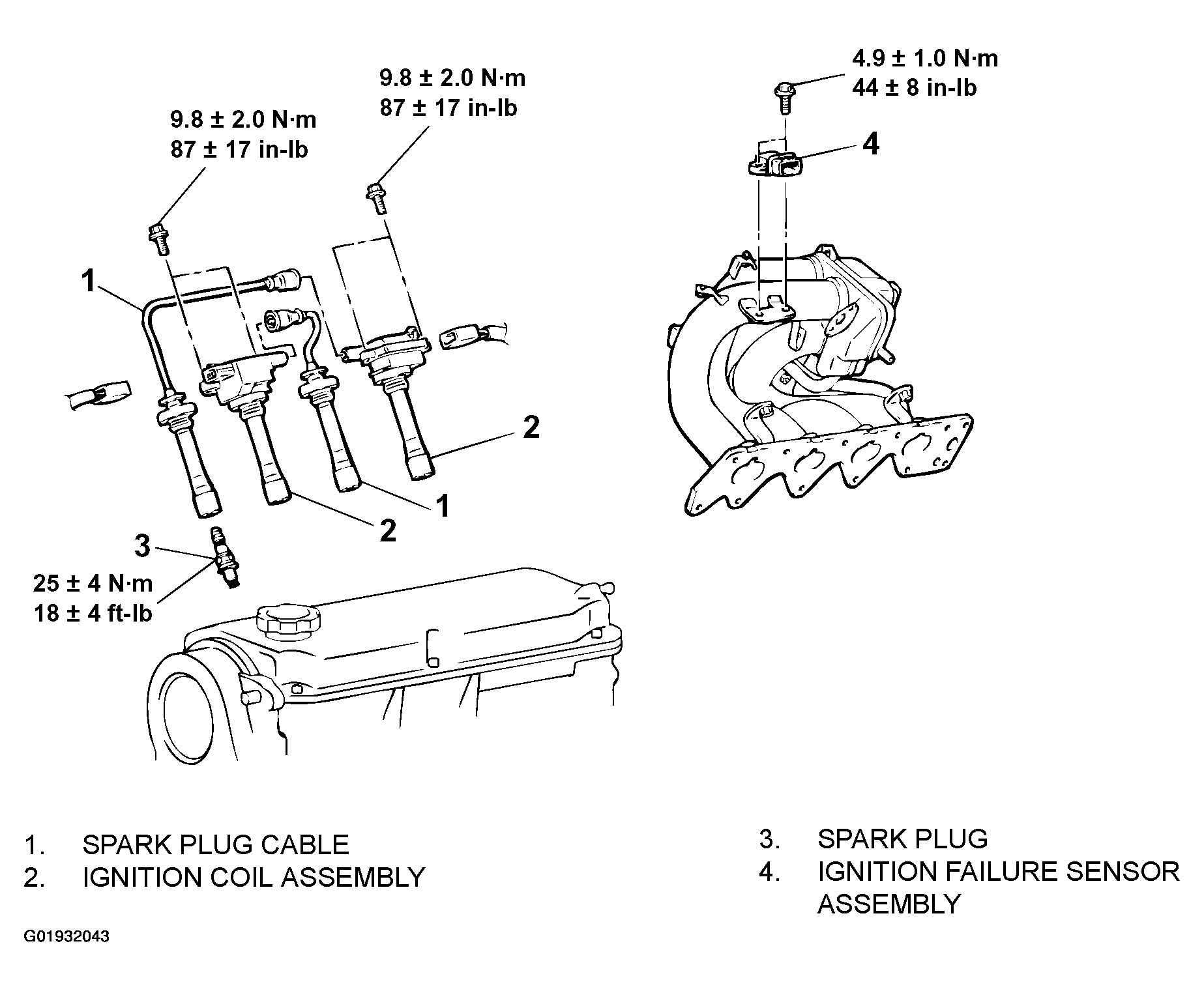

Fig 1: Removing Ignition Coil And Torque Specifications - 2.4L Engine
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
