Removal And Installation: Notes

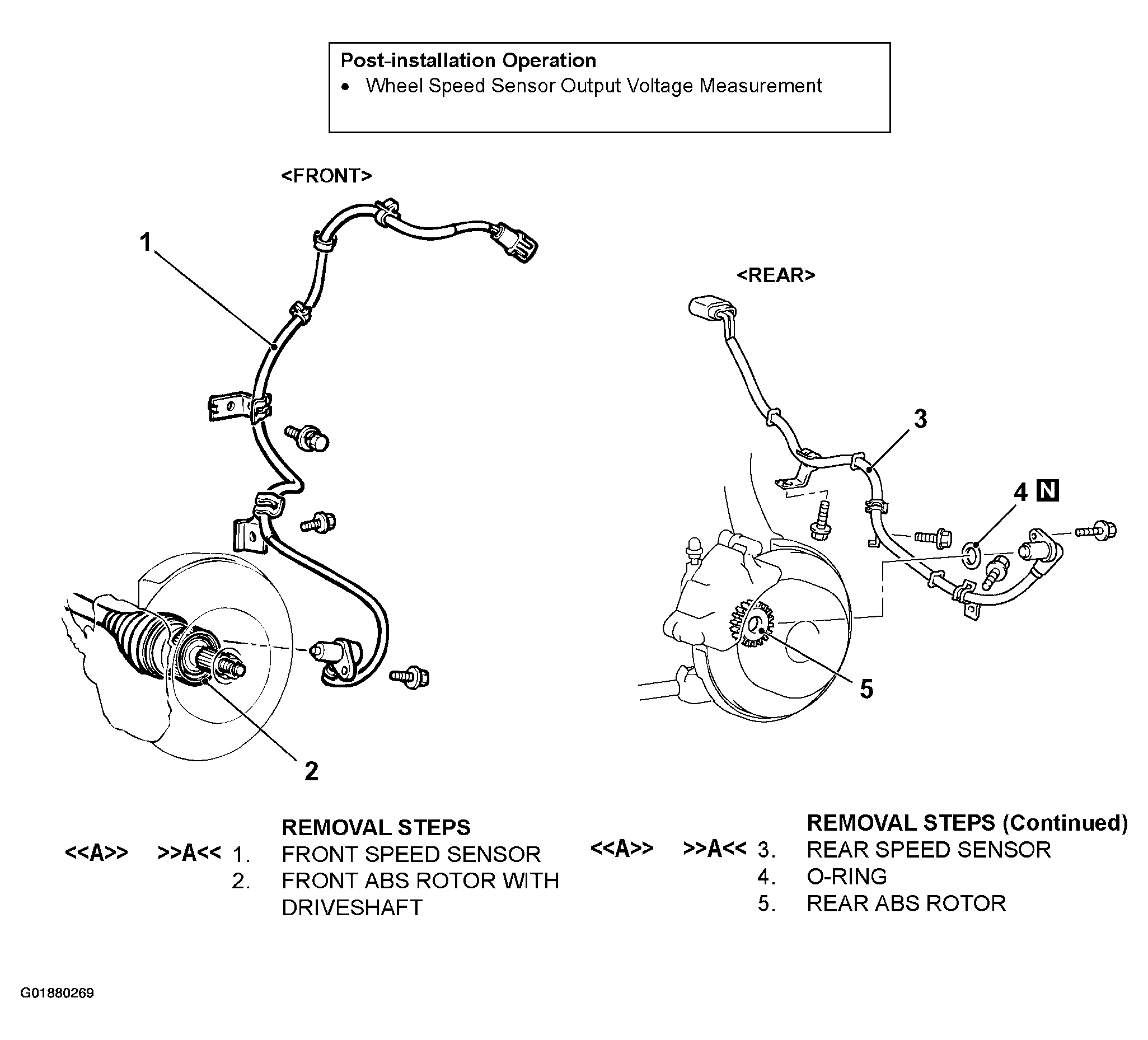

Fig 1: Removing & Installing Wheel Speed Sensor

G01880269

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
