Generators & Regulators: Overhaul: Generator: Notes

For disassembly procedures, see Fig 1 .

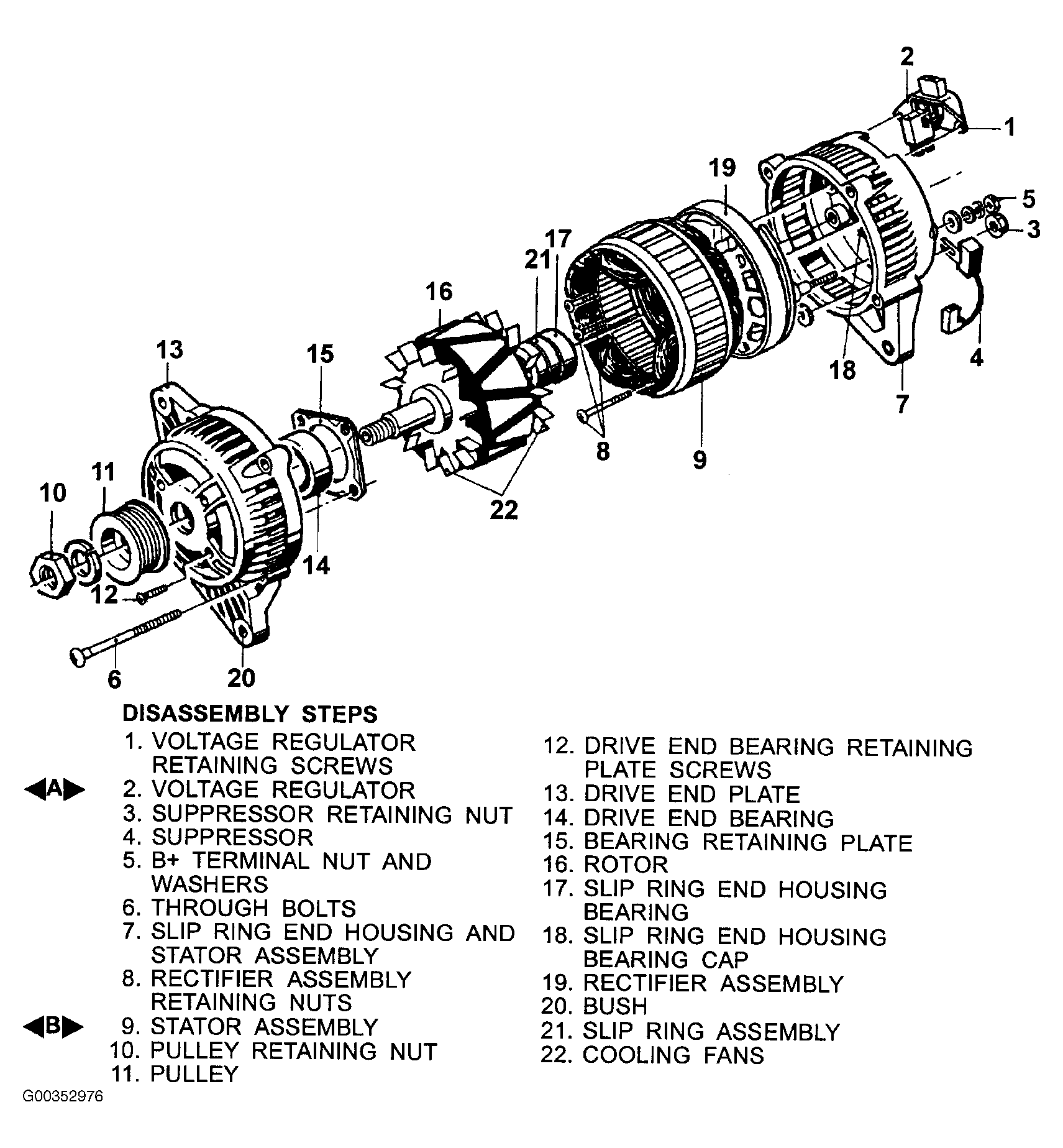

Fig 1: Exploded View Of Generator Disassembly & Reassembly

G00352976

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
