Disassembly And Reassembly

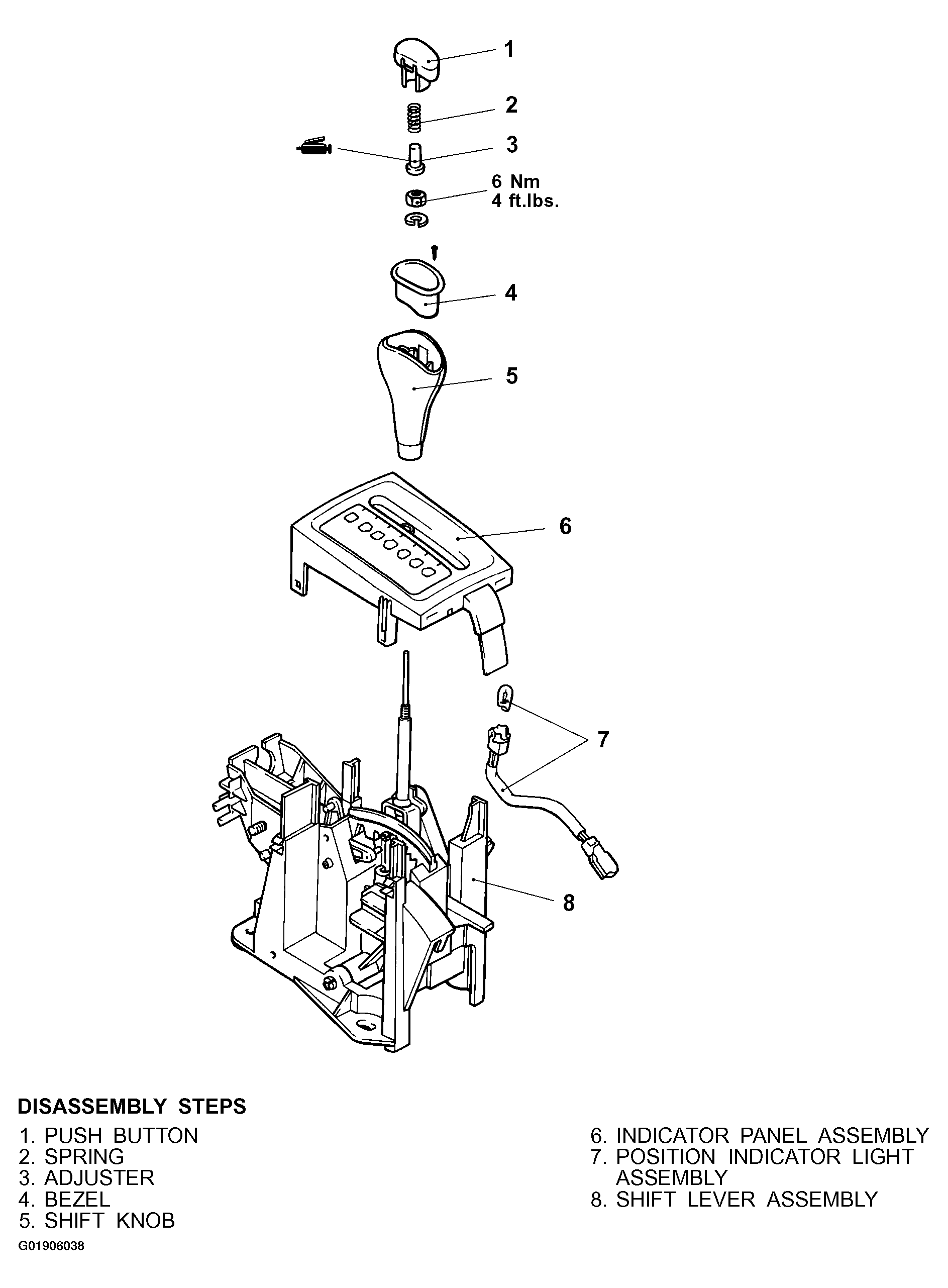

Fig 1: Disassembly And Reassembly Procedures For Selector Lever Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
