Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Diagnosis
>>
Transaxle Control
>>
Removal And Installation
Removal And Installation

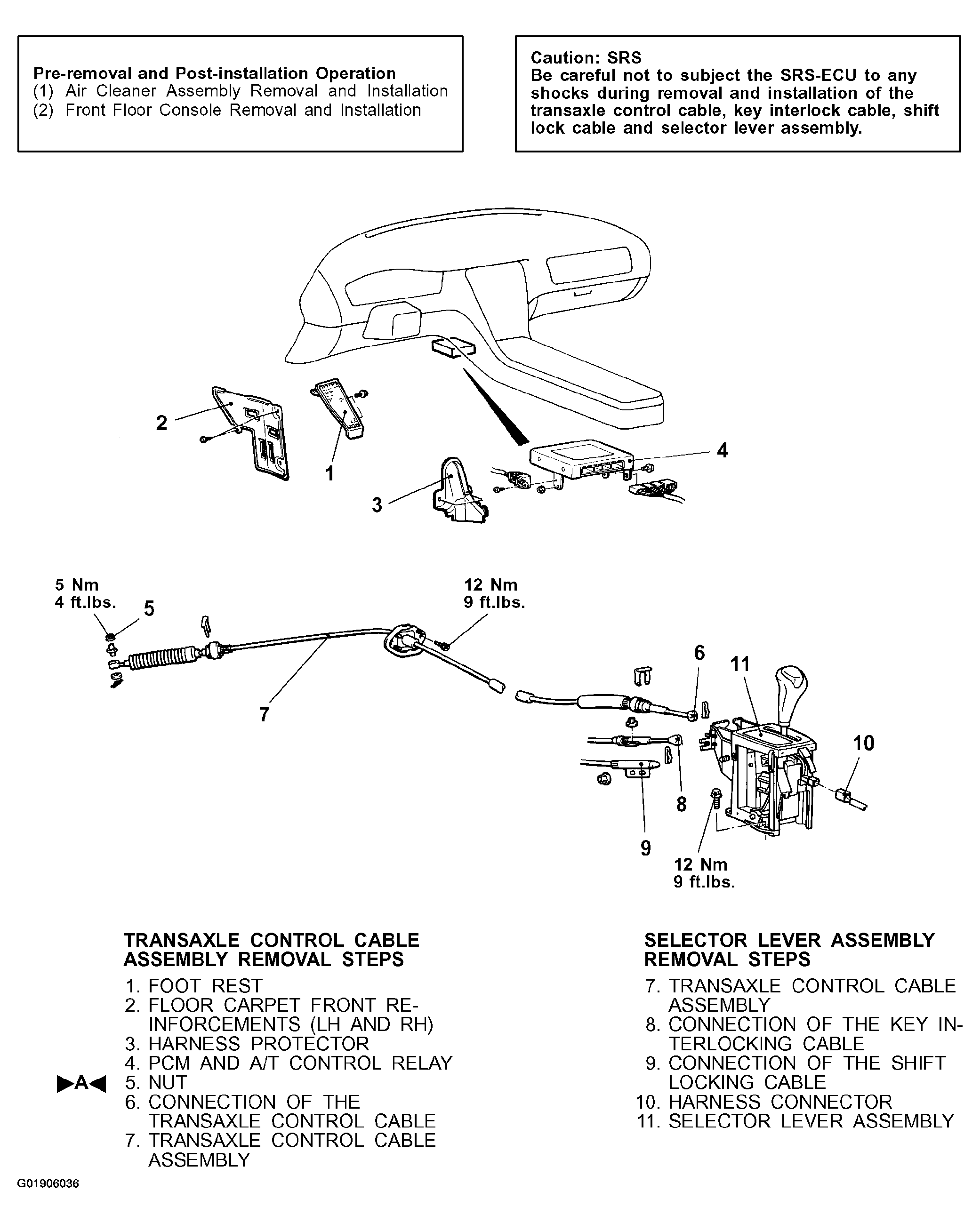

Fig 1: Removal And Installation Procedures For Transaxle Control
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
